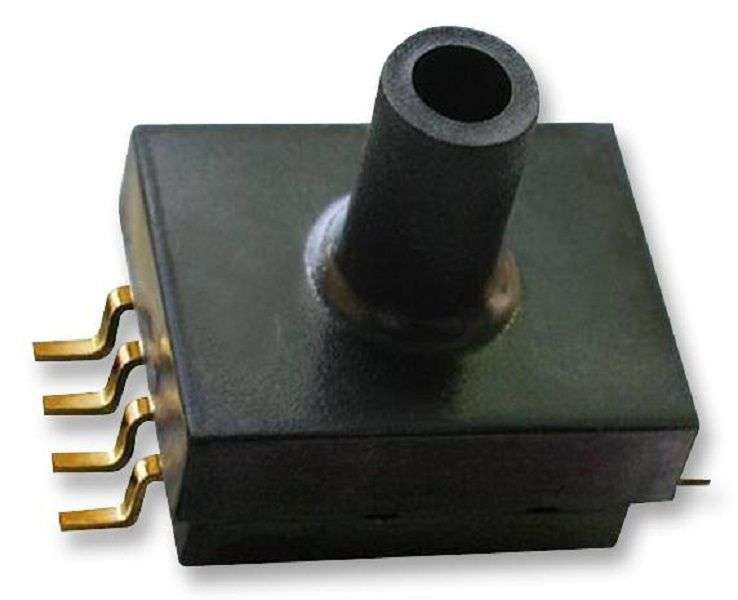

Nxp (MPXH6400AC6T1) Pressure Sensor, Absolute, 12.1 mV/kPa, 20 kPa, 400 kPa

Pressure Sensor, Absolute, 12.1 mV/kPa, 20 kPa, 400 kPa, 4.64 V, 5.36 VProduct OverviewThe MPXH6400AC6T1 is an Integrated Pressure Sensor with bipolar op-amp circuitryand thin film resistor networks to provide a high output signal and temperaturecompensation. The small form factor and high reliability of on-chip integrationmake this pressure sensor a logical and economical choice for the systemdesigner. The piezoresistive transducer is a state-of-the-art, monolithic,signal conditioned, silicon pressure sensor. This sensor combines advancedmicromachining techniques, thin film metallization and bipolar semiconductorprocessing to provide an accurate, high level analogue output signal that isproportional to applied pressure.1.5% Maximum error over 0 to 85°CImproved accuracy at high temperatureFully calibrated and compensatedIdeally suited for microprocessor or microcontroller-based systemsApplicationsSensing & Instrumentation, Automotive, Automation & Process Control, IndustrialProduct InformationPressure Type: AbsoluteSensitivity, V/P: 12.1mV/kPaOperating Pressure Min: 20kPaOperating Pressure Max: 400kPaSupply Voltage Min: 4.64VSupply Voltage Max: 5.36VSensor Case Style: SSOPNo. of Pins: 8PinsOperating Temperature Min: -40°COperating Temperature Max: 125°C
