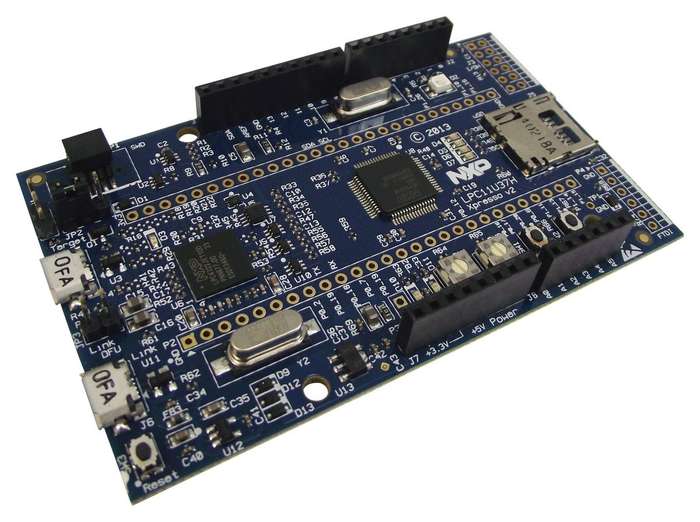

NXP (OM13074UL) Development Board, LPC11U37H MCU, LPC-LinK2 Debugger

Product InformationSilicon Manufacturer: NXPNo. of Bits: 32bitSilicon Family Name: LPC1100Core Architecture: ARMCore Sub-Architecture: Cortex-M0Silicon Core Number: LPC11U37HKit Contents: Demo Board LPC11U37HProduct Range: -Product OverviewThe OM13074 is a LPCXpresso LPC11U37H Board an extended variant of the standardLPCXpresso V2 board, designed to allow evaluation of the LPC11U37HFBD64 and makeit as easy as possible to get started with project. LPCXpresso is a developmentplatform available from NXP, supporting NXP's ARM-based microcontrollers. Theplatform is comprised of a simplified Eclipse-based IDE and low-cost targetboards which include an attached JTAG debugger. LPCXpresso is an end-to-endsolution enabling embedded engineers to develop their applications from initialevaluation to final production.On-board LPC-Link2 based debug probeDebug connector to allow debug of target MCU via an external probeCan be configured to act as a standalone probe to allowing debugging of anexternal boardTri-colour LED, ISP and WAKE buttonsConnector for target MCU's USB device peripheralMCU pins available on standard LPCXpresso/mbed expansion connectorArduino connectors compatible with the "Arduino UNO" platformP3 allows measurement of current of all target side circuitrymicroSD card slotUART connector, for use with 6-pin FTDI cable (TTL-232R-3V3) compatible (cablenot included)ApplicationsTest & Measurement, Industrial
