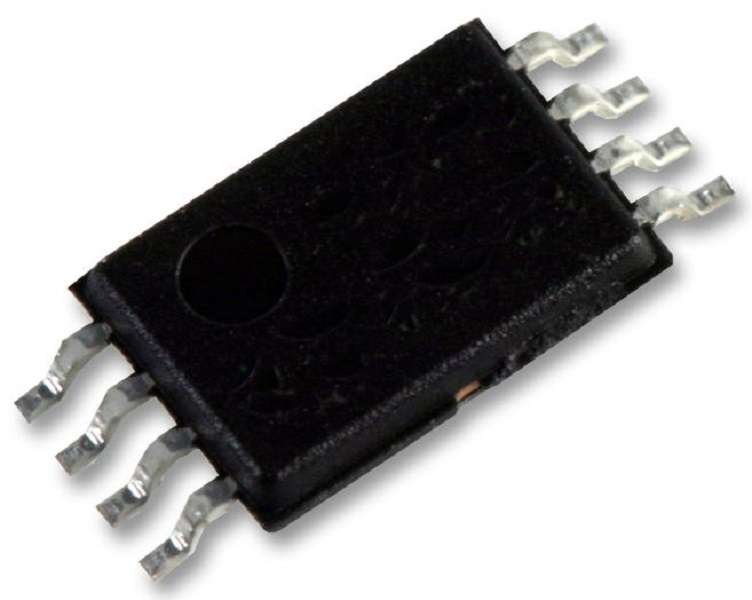

NXP (PCA9512ADP,118) Buffer, 2.7 V to 5.5 V, TSSOP-8

Product OverviewThe PCA9512ADP is a level shifting hot swappable I²C-bus and SMBus bus Bufferallows I/O card insertion into a live backplane without corruption of the dataand clock buses and includes two dedicated supply voltage pins to provide levelshifting between 3.3 and 5V systems while maintaining the best noise margin foreach voltage level. Either pin may be powered with supply voltages ranging from2.7 to 5.5V with no constraints on which supply voltage is higher. Controlcircuitry prevents the backplane from being connected to the card until astop-bit or bus idle occurs on the backplane without bus contention on the card.When the connection is made, the buffer provides bi-directional buffering,keeping the backplane and card capacitances isolated.Supports clock stretching and multiple master arbitration and synchronizationESD protection exceeds 2000V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101Latch-up testing is done to JEDEC standard JESD78 which exceeds 100mAApplicationsCommunications & NetworkingProduct InformationLogic Family / Base Number: -Logic Device Type: BidirectionalLogic Case Style: TSSOPNo. of Pins: 8PinsSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VLogic IC Family: -Logic IC Base Number: -Operating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
