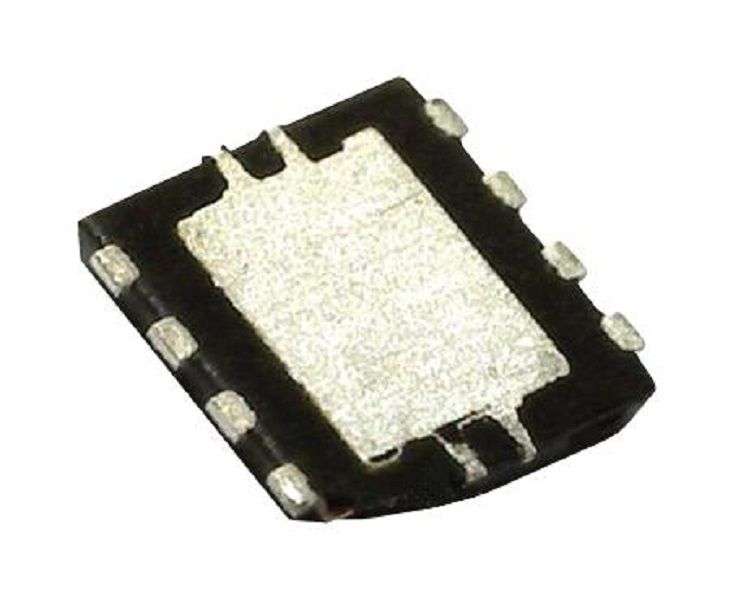

Nxp (PCA9617ATPZ) Level Translating Fm+ I2C-Bus Repeater,

Level Translating Fm+ I2C-Bus Repeater, 2 Input, 2.2 V to 5.5 V, HWSON-8Product OverviewThe PCA9617ATPZ is a CMOS level translating Fm+ I²C-bus Repeater provides levelshifting between low voltage (0.8 to 5.5V) and higher voltage (2.2 to 5.5V)fast-mode plus (Fm+) I²C-bus or SMBus applications. While retaining all theoperating modes and features of the I²C-bus system during the level shifts, italso permits extension of the I²C-bus by providing bidirectional buffering forboth the data (SDA) and the clock (SCL) lines, thus enabling two buses of 540pFat 1MHz or up to 4000pF at lower speeds. Using the PCA9617A enables the systemdesigner to isolate two halves of a bus for both voltage and capacitance. TheSDA and SCL pins are overvoltage tolerant and are high-impedance when thePCA9617A is unpowered. The 2.2 to 5.5V bus port B drivers have the static leveloffset, while the adjustable voltage bus port A drivers eliminate the staticoffset voltage. This results in a low on the port B translating into a nearly 0Vlow on the port A.Voltage level translationFootprint and functional replacement for PCA9517A at fast-mode speedsActive high repeater enable input referenced to VCC(B)Open-drain input/outputsLatching free operationSupports arbitration and clock stretching across the repeaterPowered-OFF high-impedance I²C-bus pinsLatch-up testing is done to JEDEC Standard JESD78 which exceeds 100mAApplicationsCommunications & NetworkingProduct InformationNo. of Inputs: 2InputsOutput Current: -Propagation Delay: -No. of Pins: 8PinsLogic Case Style: HWSONSupply Voltage Min: 2.2VSupply Voltage Max: 5.5VOperating Temperature Min: -40°COperating Temperature Max: 85°CLogic Type: Level TranslatorProduct Range: -
