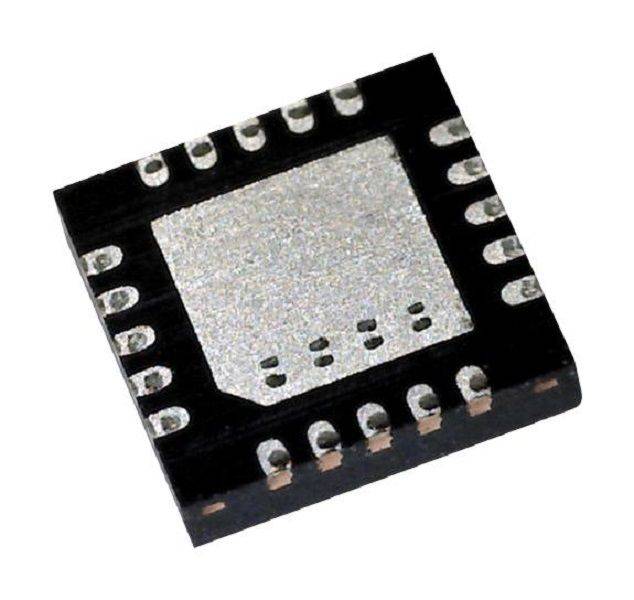

Nxp (SGTL5000XNLA3) Audio Codec, Headphone, Stereo, 1, 1, -40 °C

Audio Codec, Headphone, Stereo, 1, 1, -40 °C, 85 °C, 96 kSPSProduct OverviewLow power Stereo Codec with headphone amplifier designed to provide a completeaudio solution for products needing LINEIN, MIC_IN, LINEOUT, headphone-out anddigital I/O. Target markets include media players, navigation devices, smartphones, tablets, medical equipment, exercise equipment, consumer audioequipment, etc. Features such as capless headphone design and an internal PLLhelp lower overall system cost.Stereo LINEIN - support for external analogue input and codec bypass for lowpowerMIC bias providedProgrammable MIC gainHP output - capless designI2S port to allow routing to application processor (integrated digitalprocessing)PLL allows input of an 8MHz to 27MHz system clock - standard audio clocks arederived from PLLDesigned to operate from 1.62V to 3.6VProduct InformationAudio CODEC Type: StereoNo. of ADCs: 1No. of DACs: 1Operating Temperature Min: -40°COperating Temperature Max: 85°CSampling Rate: 96kSPSAudio IC Case Style: QFNNo. of Pins: 20PinsNo. of Input Channels: 1ChannelsNo. of Output Channels: 2ChannelsADC / DAC Resolution: 24bitADCs / DACs Signal to Noise Ratio: 90dBIC Interface Type: I2C, SPISupply Voltage Range: 1.62V to 3.6VProduct Range: -MSL: MSL 3 - 168 hours
