Package weight: 0.10 kgFeature:
The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.
1: the use of STM8 industrial microcontroller control center.
2: strong and weak electricity through optocoupler isolation, safe operation.
3: the power line and the foot switch line adopts the screw free fast connection terminal, more convenient and reliable.
4: input time, current using high-precision single potentiometer, to ensure reliable input, convenient
5: on-board power supply, state, foot, trigger indicator, working state clearly visible.
6: the design of reliable zero crossing detection circuit to ensure that the SCR phase shift accuracy.
7: the controller is compatible with 100A scr.
8: digital control interface, you can display the current time and current settings.
9: time input 1-50, unit cycle (1 cycles is 20ms), current input (30-99%)
AramDescription of the fault Time or current is not adjustable, the number does not change
Solution:

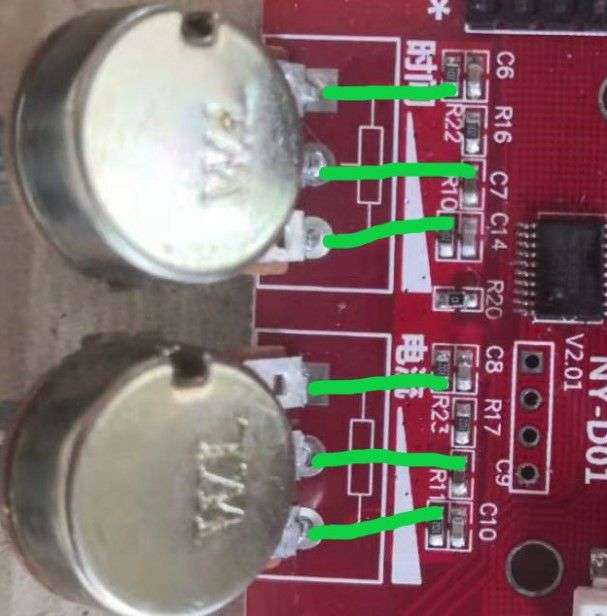

First look at the pad on each of the 3 pins of the potentiometer. As shown belowe
When there is a break, you can re-weld it with a wire.

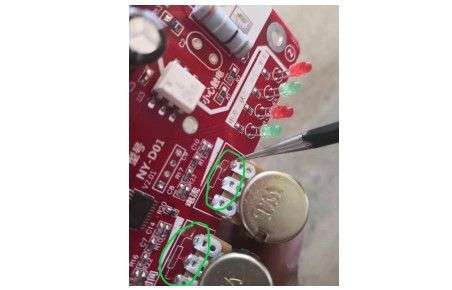

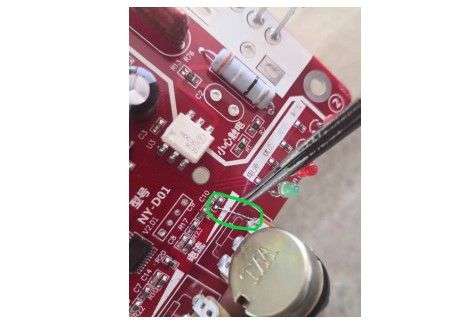

Note: The position of each potentiometer is as shown below.

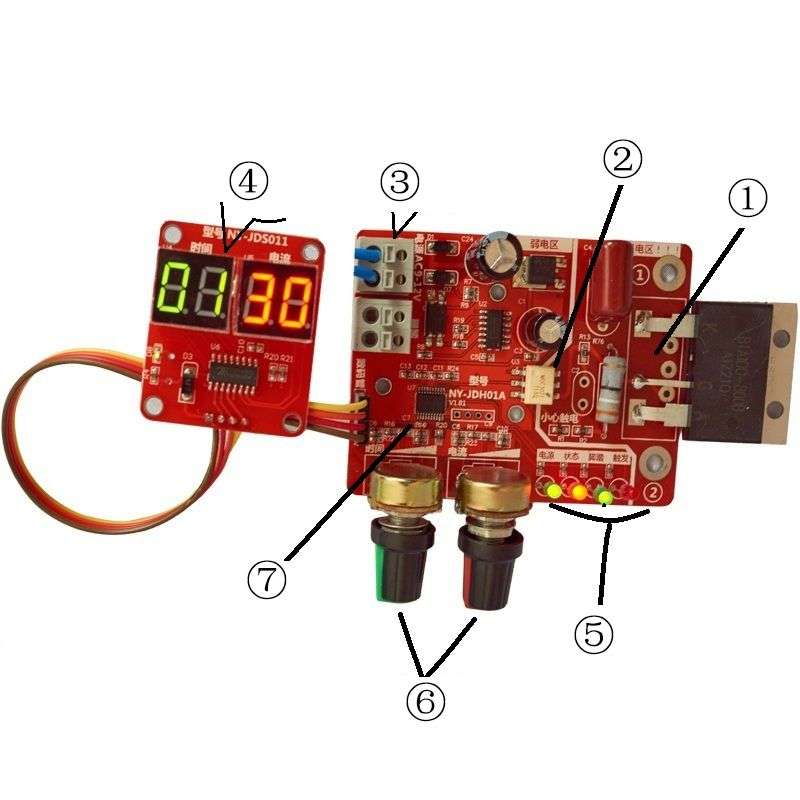

Powerful functions:
Compatible with 41-100A thyristor
Strong and weak electrical use optocoupler isolation, the operation more secure.
Create-free quick connect terminal. Use hand push raised above, put wires in.
Time and current digit display. Time range 1-50 cycle, one cycle 20 millisecond. Current range 30-99%
Onboard Indicator, can see working status clearly
Time and Current adjust knob
Industrial microcontroller, stable and reliable

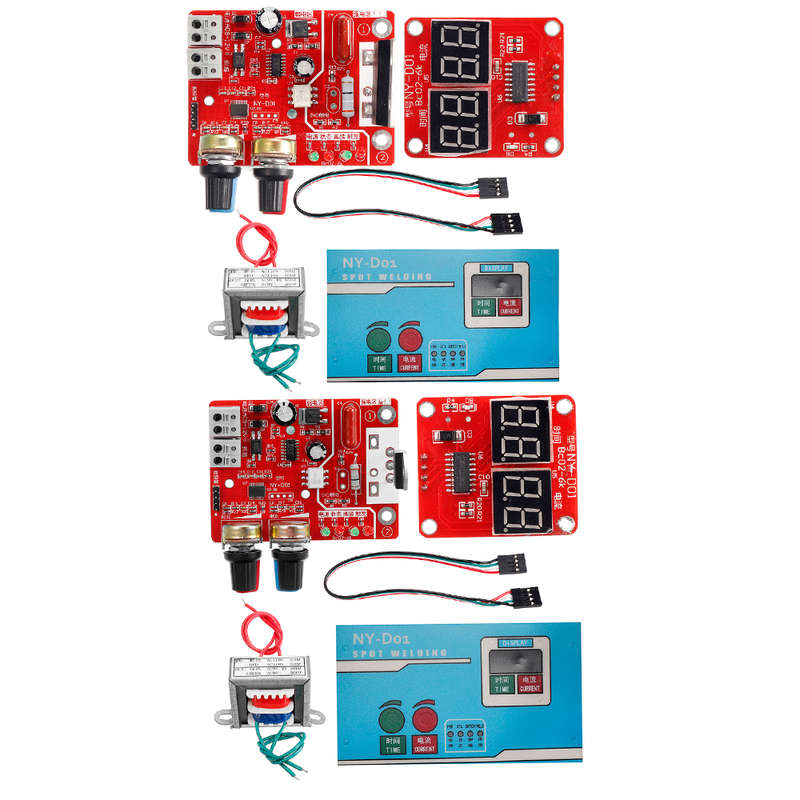

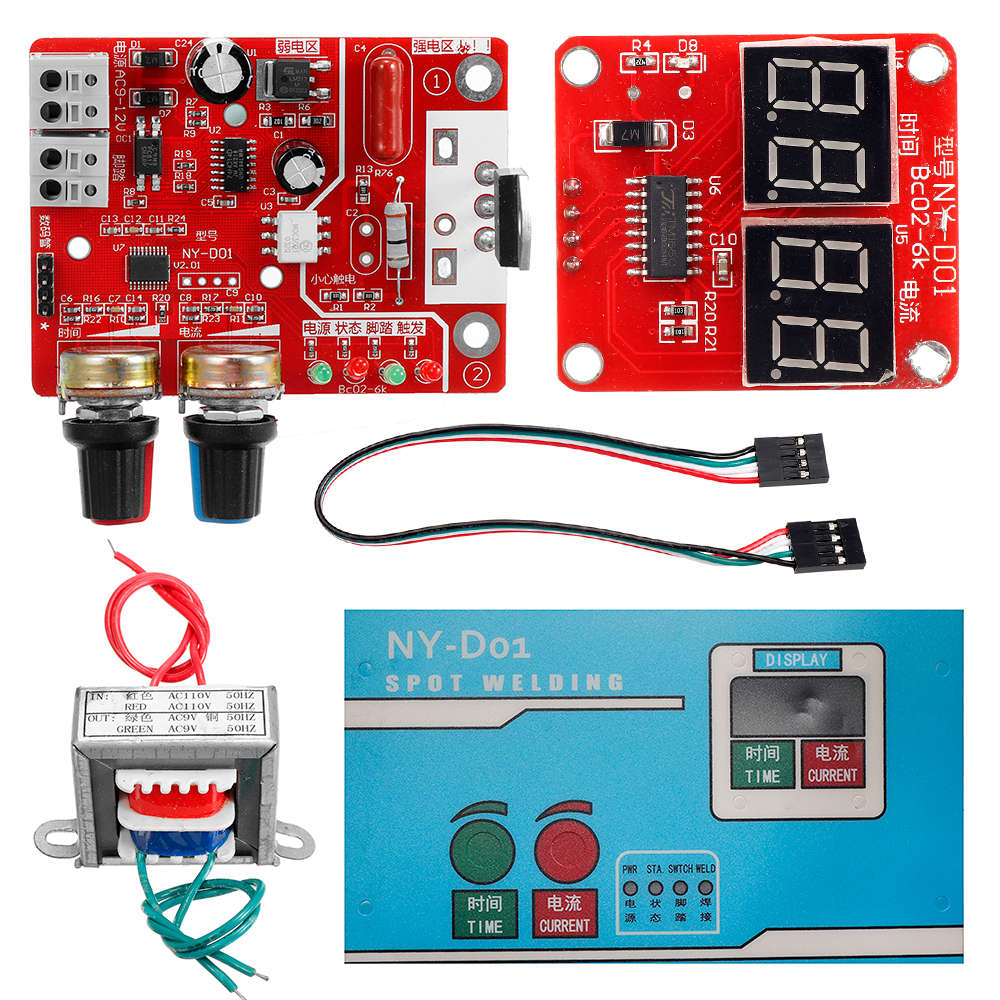

Package Included:
1 x Main Board
1 x Display Board
1 x Cable
1 x AC 9V Transformer
