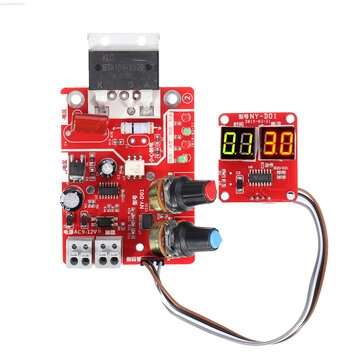

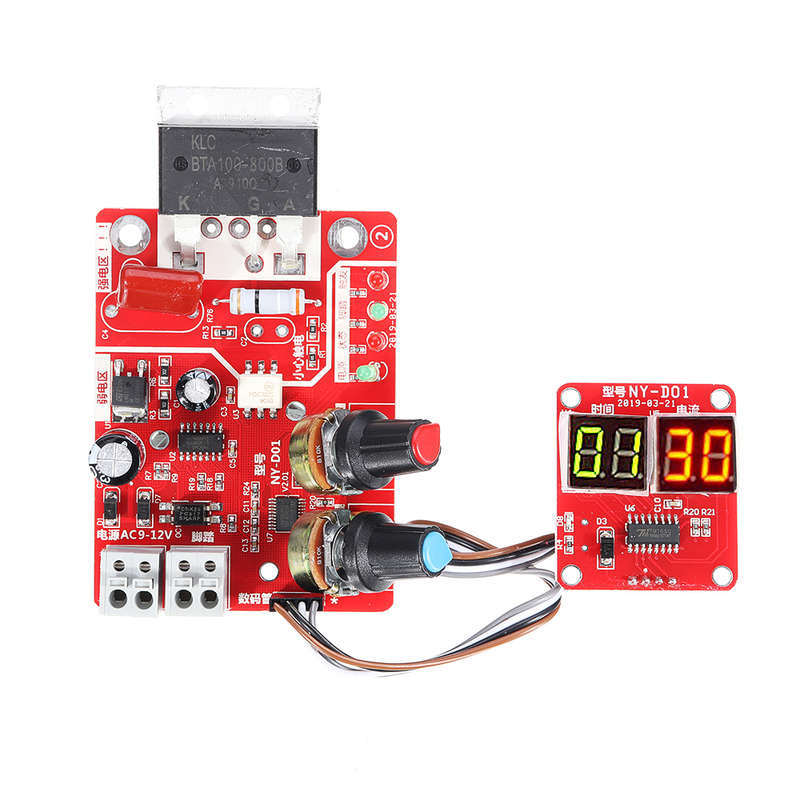

NY-D01 40A/100A Digital Display Spot Soldering Station Time and Current Controller... (CURRENT: 40A)

20 available / new

R669.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3524

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643385803

SELECTED OPTION:
CURRENT: 40A

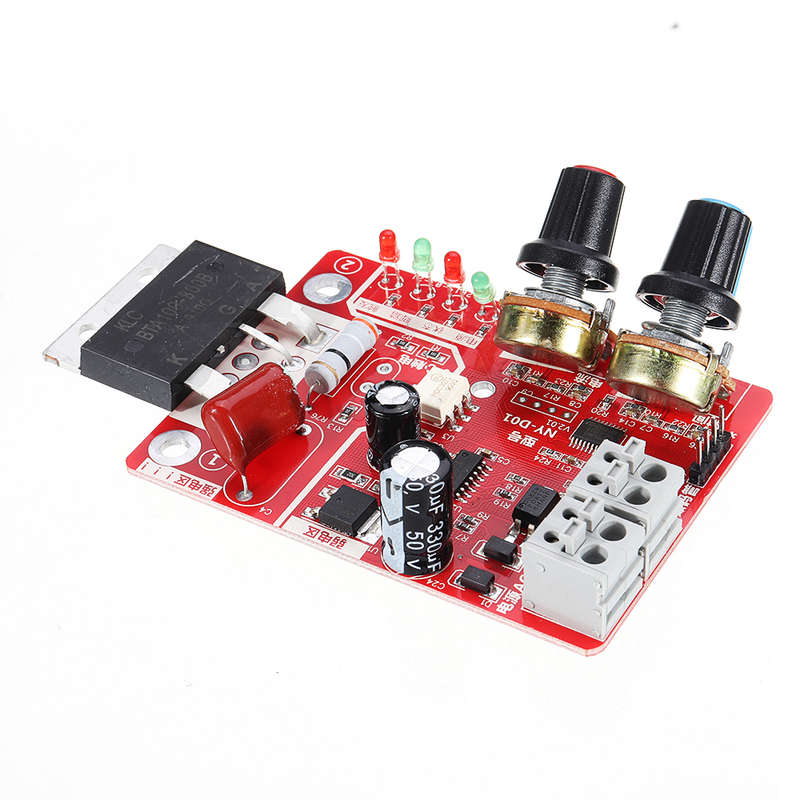

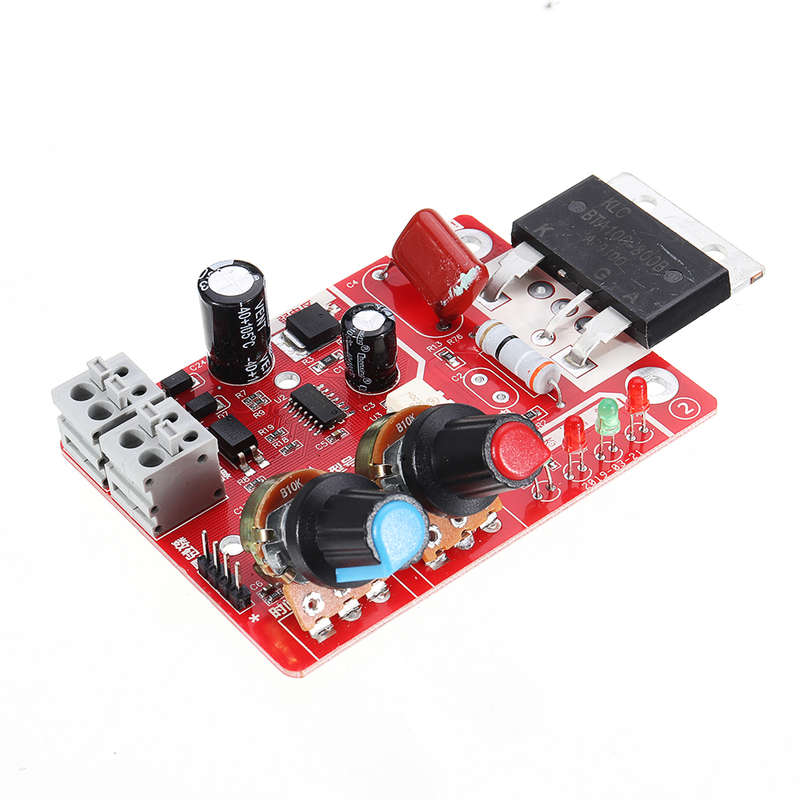

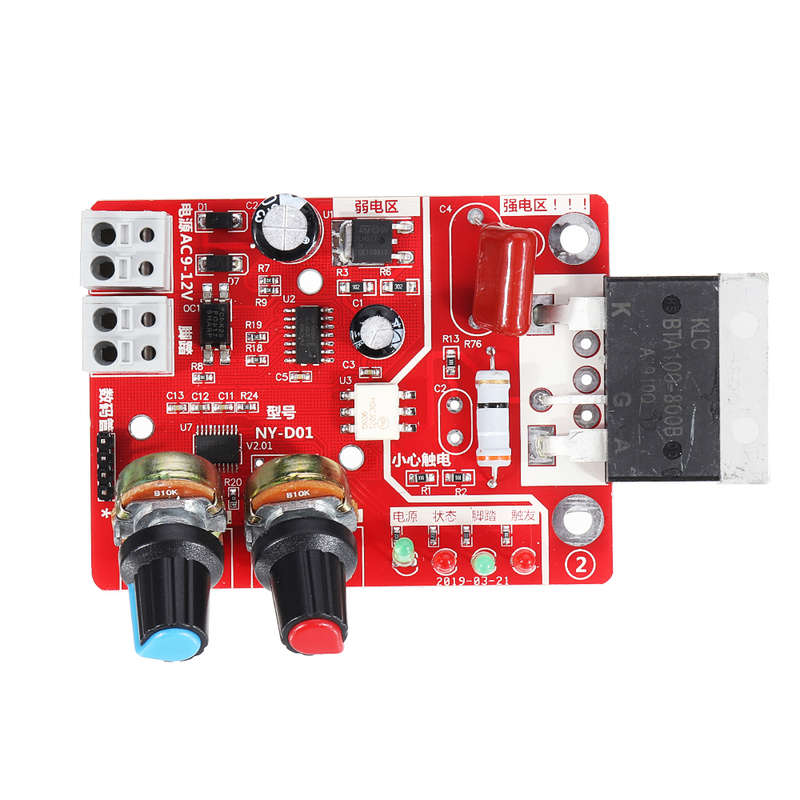

Overview: The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding. The main features of this controller: 1. The use of STM8 industrial microcontroller control center. 2. Strong and weak electricity through optocoupler isolation, safe operation. 3. The power cable and the footswitch line adopts the screw-free fast connection terminal, more convenient and reliable. 4. Input time, current using high-precision single potentiometer, to ensure reliable input, convenient 5. On-board power supply, state, foot, trigger indicator, working state clearly visible. 6. The design of reliable zero-crossing detection circuit to ensure that the SCR phase shift accuracy. 7. The controller is compatible with 100A SCR. 8. Digital control interface, you can display the current time and current settings. 9. Time input 1-50, unit cycle (1 cycles is 20ms), current input (30-99%)

Package includes:

1 xSpot Welders Control Board

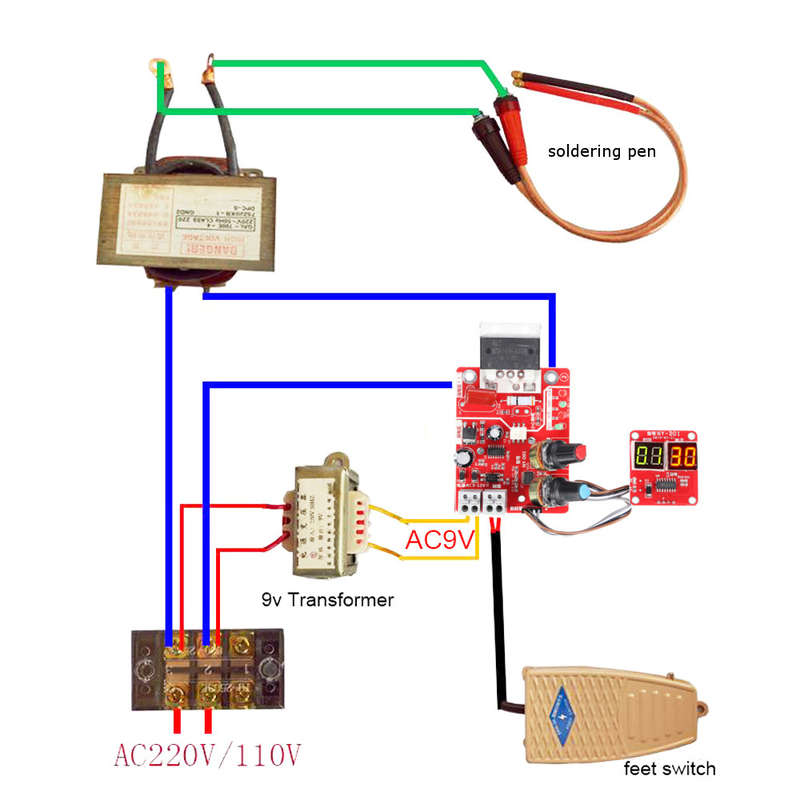

Wiring demo:
