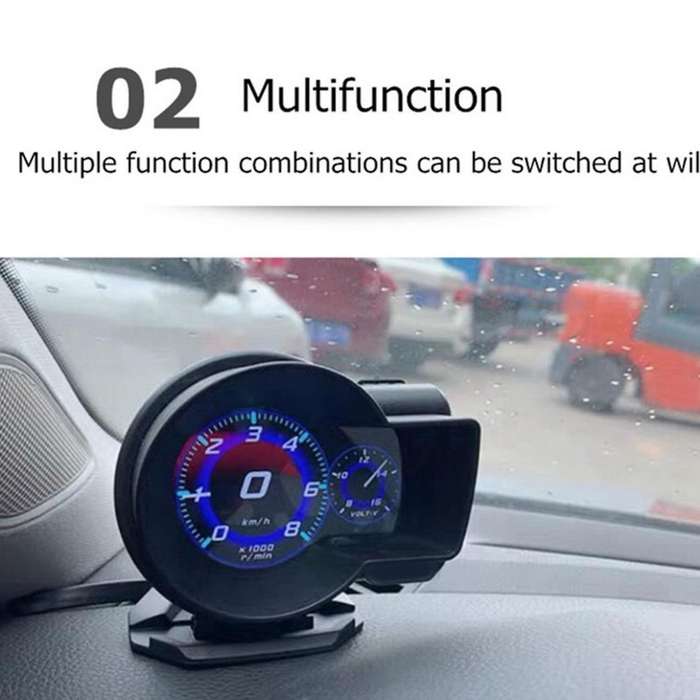

Obd Display Car Digital Boost Gauge Water Temp Alarm Diagnostic Tool

Description:It is especially designed for vehicle without speedometer, engine temperature gauge, oil thermometer, boost gauge and fuel consumption meter.can also monitor and display battery voltage, engine charging voltage, overspeed alarm, engine temperature warning.It can even read the real-time data stream, scan and clear trouble code.Warning function:Supports water temperature warning, over-speed alarm, shifting reminding, vehicle malfunction warning for safe and secure driving.Trouble code clearing: Supports code scanning and general code clearing.Installation: 1.Find the car's OBD data interface, the common interface is located under the driver's side dashboard. 2.Start the vehicle and keep the engine running. 3.Connect the vehicle OBD interface to the meter with the OBD cable. 4.The product displays the boot animation, recognizes the protocol, and then the meter starts to display normally5.Fixed the product and hides the trace and the installation is completed. Supported vehicles:For petrol vehicles with standard OBD-II protocol, especially for vehicles without water gauge, speedometer and fuel consumption meter.Specifications:Operating voltage: 10-18V DC; Operating current: less than80mA; Sleep current: less than15mAOperating temperature: -20 - 75Dimensions: 60mm X 50mm X 67mmHardware:CPU based on 32 bit ARM CORTEX-M3 kernel.Maximum operating frequency: 72MHzSupports multiple high speed auto communication protocolsFunction ItemFunction1:SPEED AVG /SPEED/TACHO/RPMFunction2:INTAKE AIR T./COMMON R.P/THROTTLE P.Function3:ACC P.B/ACC P.C/ACC P.D/ACC P.E/ACC P.F/ACC P.P.Function4:IGNITION T./ENGINE LOAD/SHORT TRIM/LONG TRIMFunction5:O2 B1 S1/O2 B1 S2/O2 B1 S3/EXHAUST G.RFunction6:FUEL LEVEL/BARO/FUEL C./FUEL C;AVG/OUTSIDE T.Function7:OTL P./FUEL P./OIL T./WATER T.Function8:EXT T./VOLT/CLOCK/ENGINE RUN T./AIR FLOWDefault alert valueMeter Defaults MIN MAX UNIT ALARM IND.OutputTACHO/RPM 6000 0 9000 RPM greater than equal Setting ONShifting Value 5000 0 9000 RPM greater than equal Setting ONSPEED 120 0 400 Km/h greater than equal Setting ONVOLT. 11 8 18 V less than equal Setting ONWATER T. 105 -40 140 greater than equal Setting ONOIL T. 115 -40 140 greater than equal Setting ONTURBE/AIR P. 120 -100 200 Kpa greater than equal Setting ONOIL P. 50 0 1000 Kpa less than equal Setting ONFUEL P. 50 0 600 Kpa less than equal Setting ONEXT T. 950 0 1100 greater than equal Setting ONColour: BlackMaterial: ABSPackage Included:1 * LCD Meter1 * Power Cord1 * Non-slip Mat1 * OBDOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
