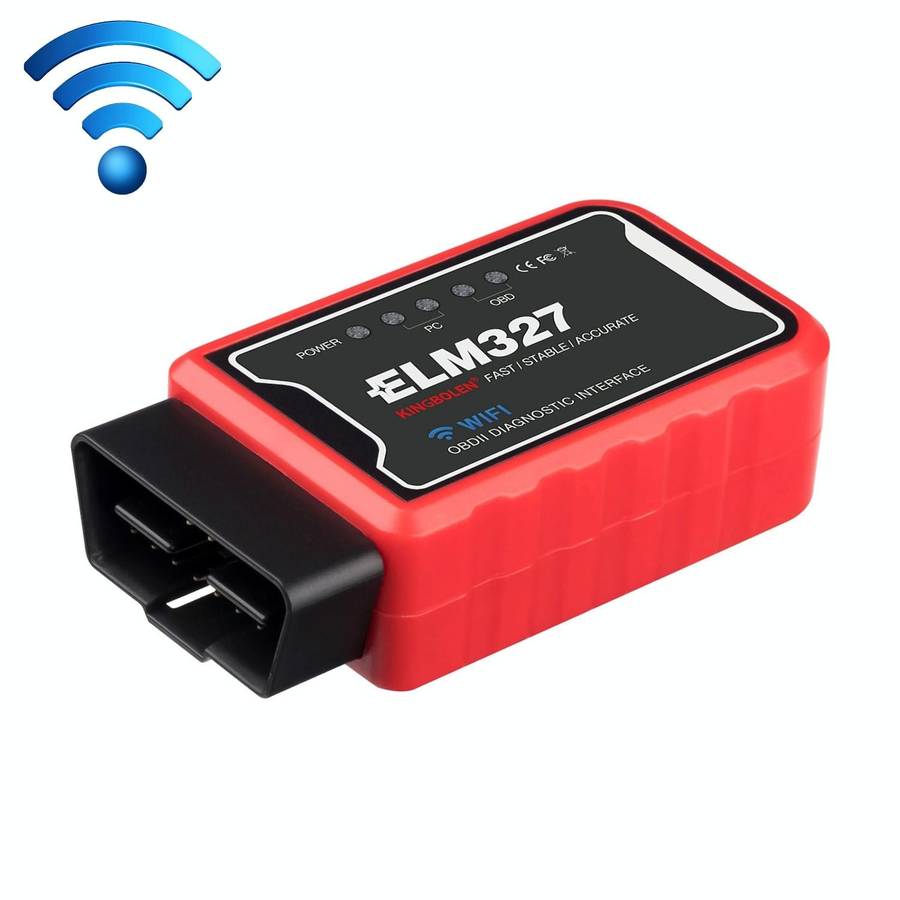

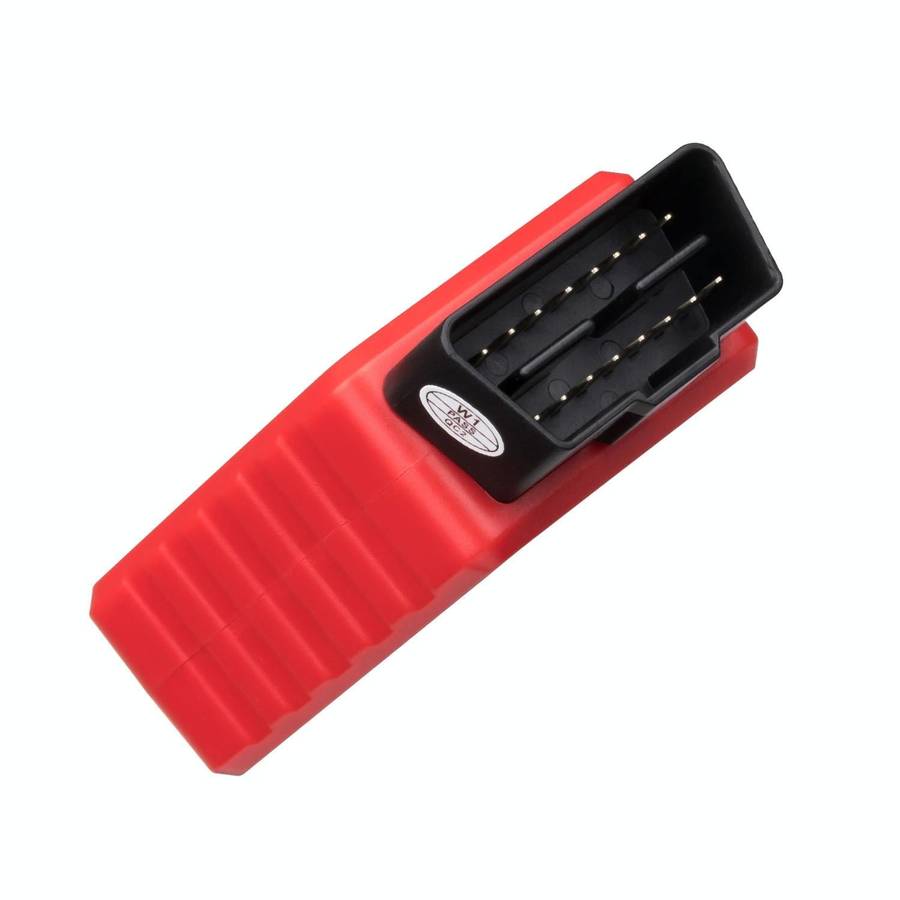

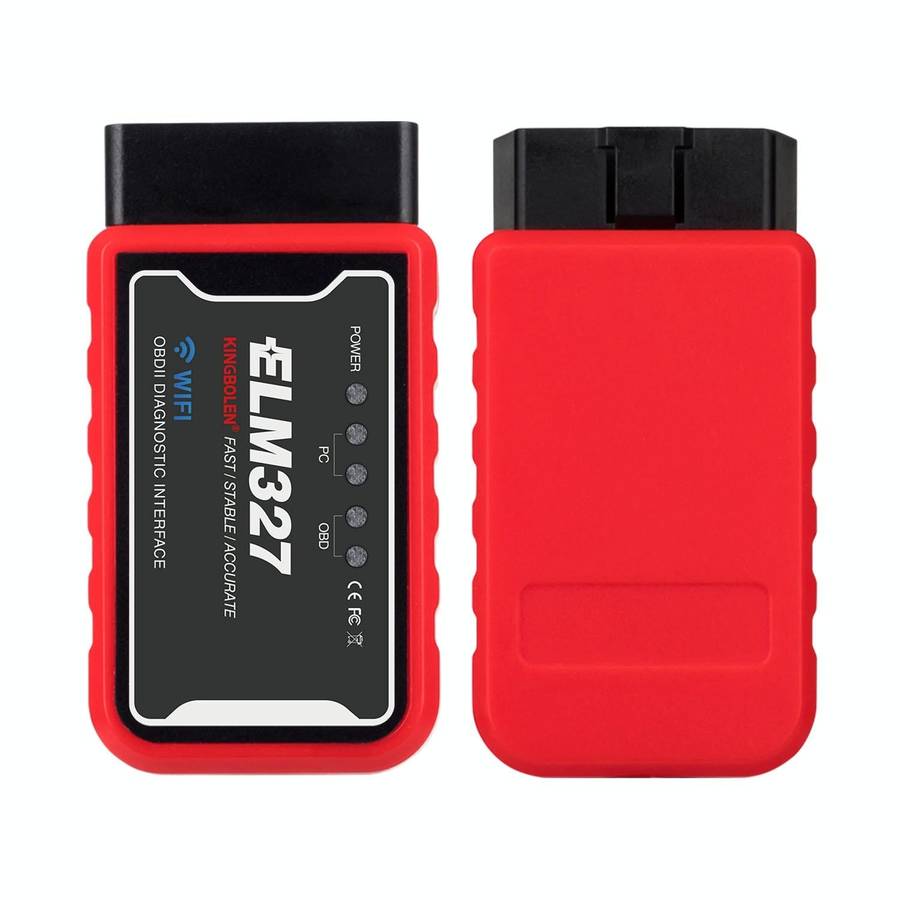

OBD II ELM327 WiFi Car Fault Diagnostic Tool PIC25K80 Chip

Function
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (Check Engine light)
3. Display current sensor data, including: Engine RPM / Calculated Load Value / Coolant Temperature / Fuel System Status / Vehicle Speed
4. Short Term Fuel Trim
5. Long Term Fuel Trim
6. Intake Manifold Pressure
7. Timing Advance
8. Intake Air Temperature
9. Air Flow Rate
10. Absolute Throttle Position
11. Oxygen sensor voltages / associated short term fuel trims
12. Fuel System status
13. Fuel Pressure

Specification
1. SSID: WiFi_OBDII
2. IP: 192.168.0.10
3. Port: 35000
4. Communication: WIFI

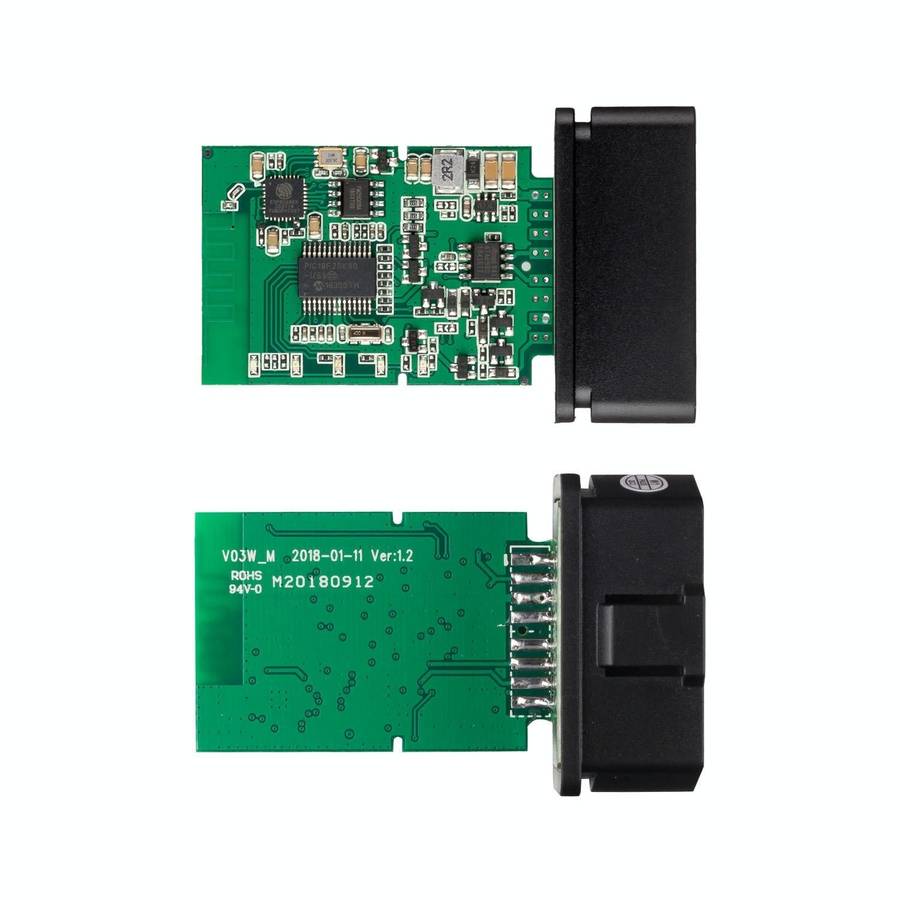

5. Chip: PIC25K80
6. Support System: IOS, Android, Symbian, Windows
7. Working Voltage: 9v ~ 16v
8. Working Current: 65mA
9. Standby Current: 45mA
10. Operating temperature: -40 ~ 85 Celsius degree
11. Working Humidity: less than 60%
12. Size: 45mm x 25mm x 75mm
13. Compatible systems: Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
14. Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope

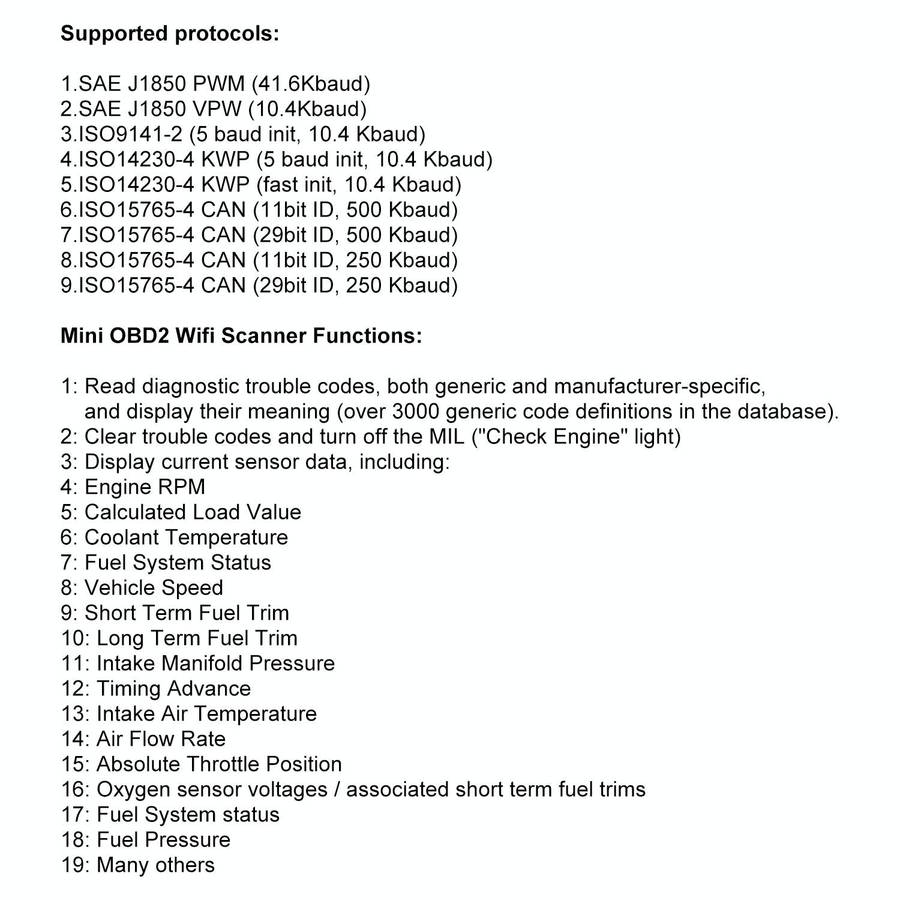

Supported Protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
