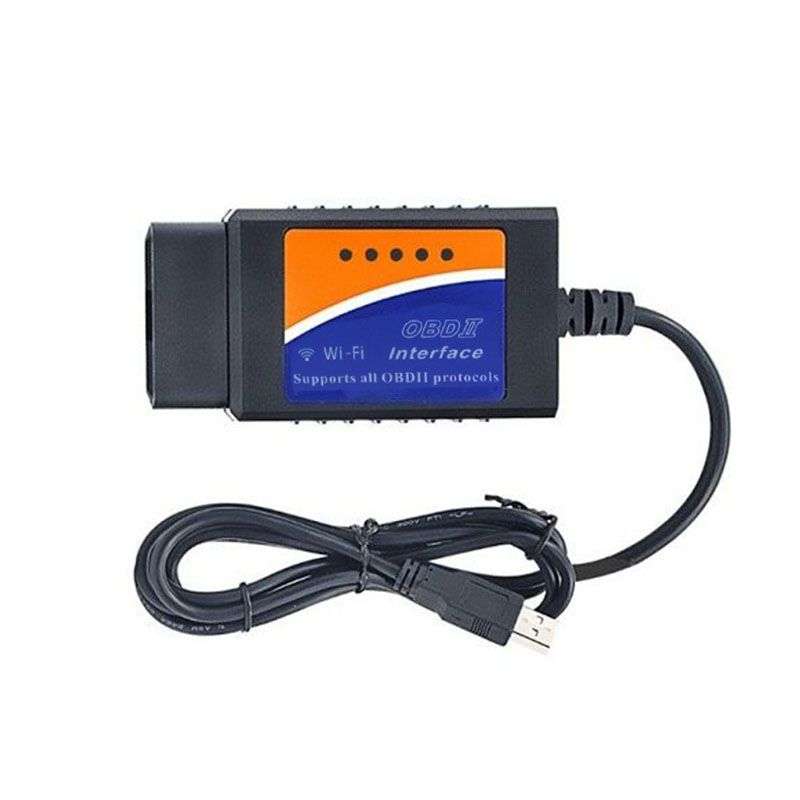

OBD2 Scanner with USB Connection - Reads generic and manufacturer-specific trouble codes

OBD2 Scanner with USB Connection - Reads generic and manufacturer-specific trouble codes

8 available / new
R234.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
GW-T-OBD2-USB
Bob Shop ID
616104072

*Does not support Diesel cars

Function

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (Check Engine light)
Display current sensor data
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages / associated short term fuel trims
Fuel System status
Fuel Pressure

Specifications

Communication: USB Interface
Master Chip: ST
Driver IC: PL2303
Support System: Windows
Working Voltage: 9v ~ 16v
Working Current: 15mA
Standby Current: 0mA
Operating temperature: -40 ~ 85 degree Celsius
Working Humidity: less than 60%

Compatible systems

Software support platform: Windows XP, Windows 7/8

Compatible Software

Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Size: 45 x 25 x 75 mm
Cable Length: 1.5 m

Supported Protocol

SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
SO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
