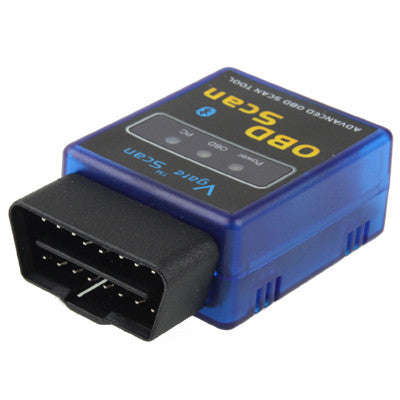

OBDII / OBD SCAN Bluetooth Diagnostic Interface

This product is in stock locally in South Africa and is dispatched immediately

---------------------------------------

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

**Automatic

1) SAE J1850 PWM (41.6Kbaud)

2) SAE J1850 VPW (10.4Kbaud)

3) ISO9141-2(5 baud init10.4Kbaud)

4) ISO14230-4 KWP (5 baud init 10.4 Kbaud)

5) ISO14230-4 KWP (fast init 10.4 Kbaud)

6) ISO15765-4 CAN (11bit ID 500 Kbaud)

7) ISO15765-4 CAN (29bit ID 500 Kbaud)

8) ISO15765-4 CAN (11bit ID 250 Kbaud)

9) ISO15765-4 CAN (29bit ID 250 Kbaud)

-SAE J1939 CAN (29bit ID 250*Kbaud)

-USER1 CAN (11*bit ID 125*Kbaud)

-USER2 CAN (11*bit ID 50*kbaud)

* *default settings (user adjustable)

1) Works with all OBD-II compliant vehicles

2) Wireless (Bluetooth) 5~10meters

3) Software included for Palm PDA Mobile

4) Software included for Windows PC

5) Software included for Windows Smartphone

**Functions:

1) Read diagnostic trouble codes both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database).

2) Clear trouble codes and turn off the MIL ( inch Check Engine inch light)

3) Display current sensor data including:

4) Engine RPM

5) Calculated Load Value

6) Coolant Temperature

7) Fuel System Status

8) Vehicle Speed

9) Short Term Fuel Trim

10) Long Term Fuel Trim

11) Intake Manifold Pressure

12) Timing Advance

13) Intake Air Temperature

14) Air Flow Rate

15) Absolute Throttle Position

16) Oxygen sensor voltages/associated short term fuel trims

17) Fuel System status

18) Fuel Pressure

19) Many others...

---------------------------------------
