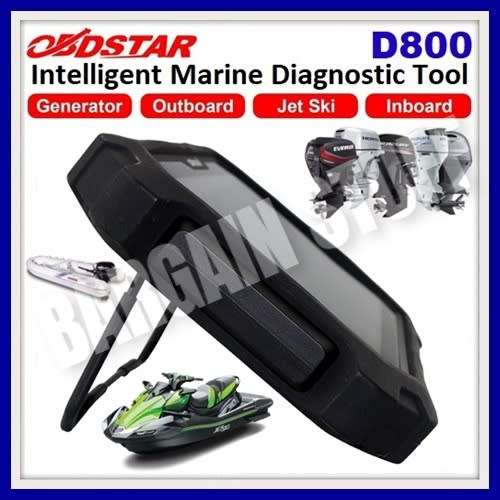

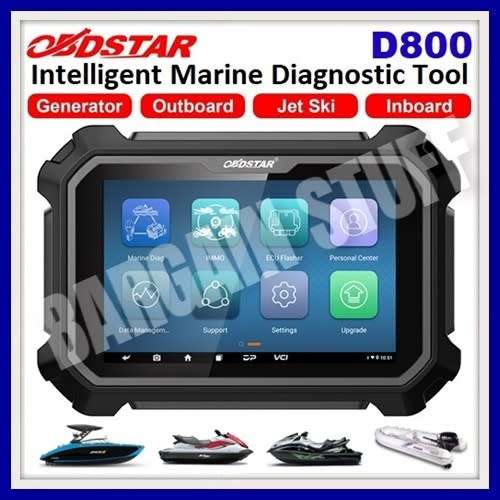

OBDStar D800 Marine (Jet Ski / Outboard / Inboard / Generators Diagnostic Tool

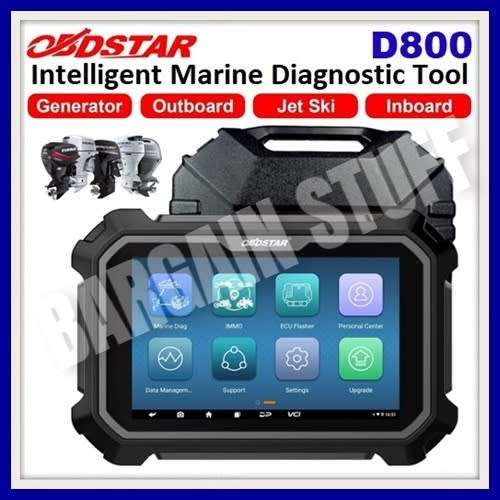

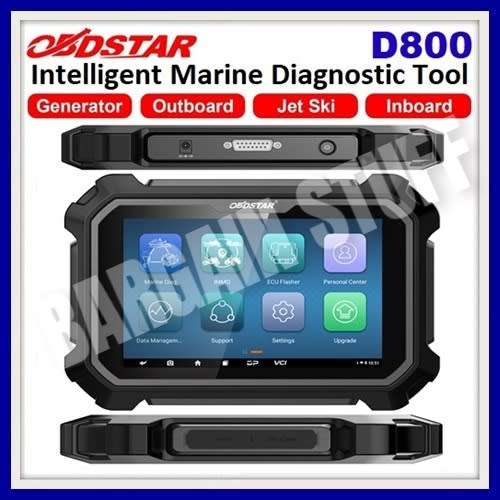

The OBDStar D800 is new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!

Functions:

1. New android 5.1.1 operation system.
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation.
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc.
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults.
5. Wi-Fi connection to the internet, one-click software upgrade.
6. One-click remote function, OBDSTAR technical staff remote assistance.


Advanced Function:

1. The OBDSTAR mobile APP integrates functions such as diagnostic socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free)
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free.

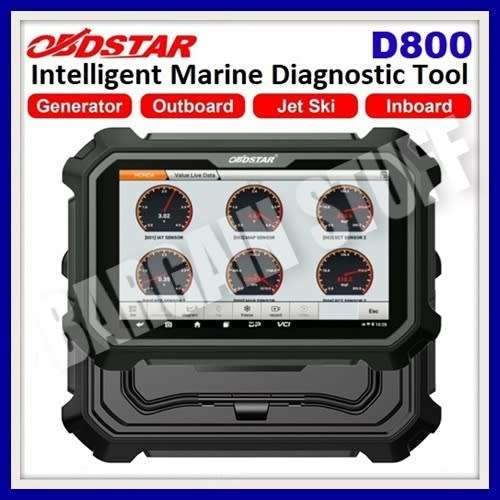

3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults.
4. Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality, and other functions.

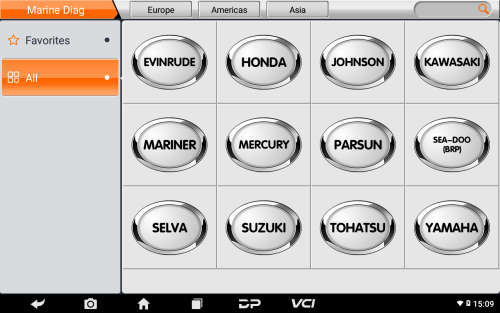

Supported Brands: Evinrude, Honda, Johnson, Kawasaki, Mariner, Mercury/Mercury Racing, Parsun, Sea-Doo(BRP), Selva Marine, Seven Marine, Suzuki, Tohatsu, Yamaha.

Note: Functions and Coverage may differ from makes and models. Please Contact us To confirm if the D800 Supports you Marine (jet ski/ outboard/inboard/ generator)

Function Display- (From OBDSTAR Mobile App)

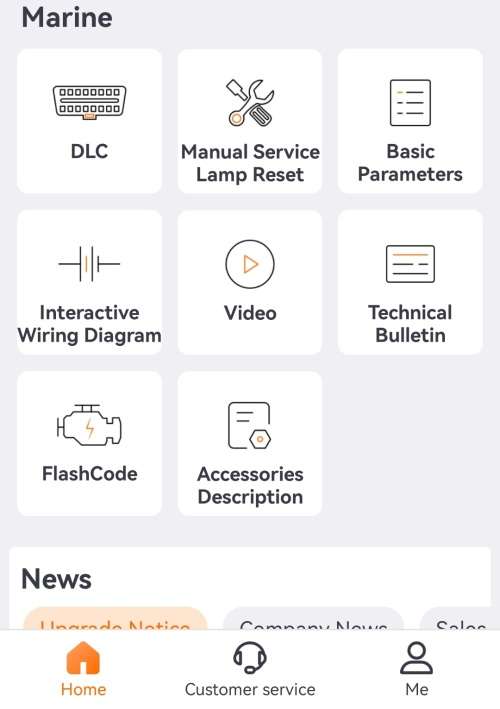

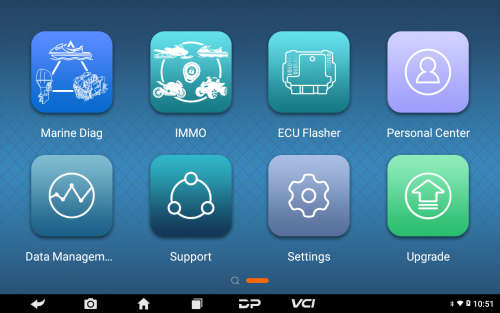

1) Main Page.

2) Diag Socket/Diag Connector Location.

Other Functions:

• Manual Service Function: (Service Lamp Reset)
• Technical Bulletin.
• Flash Code.

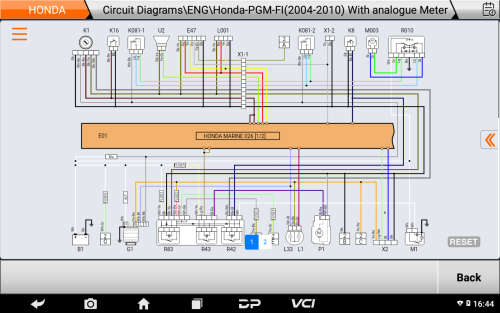

• Interactive Circuit Diagram.
• Data Flow Text / Waveform Diagram / Instrument Diagram.
