OBDStar ISCAN BMW Motorcycle Diagnostic Tool

The OBDSTAR ISCAN BMW is a portable tablet which has super performance and industrial appearance design specialized for BMW. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

Functions:

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced function:

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/snowmobile/ATV/UTV support series: BMW.

Coverage Link: http://www.obdstar.com/Admin/Others/DownloadsPage.aspx?nid=14&id=51&ref=prod_view&t=60f110f59a28bdeb

Function Display:

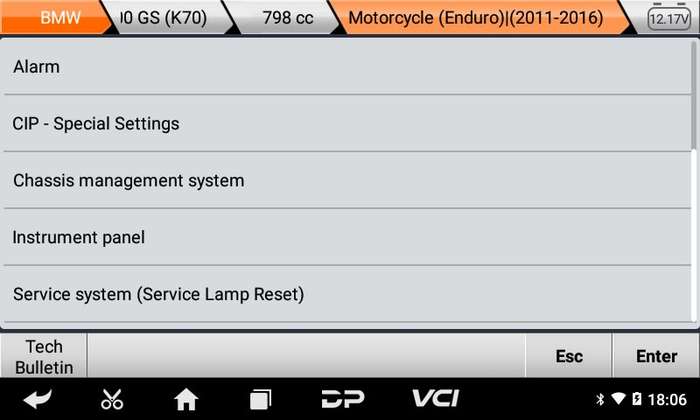

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin:

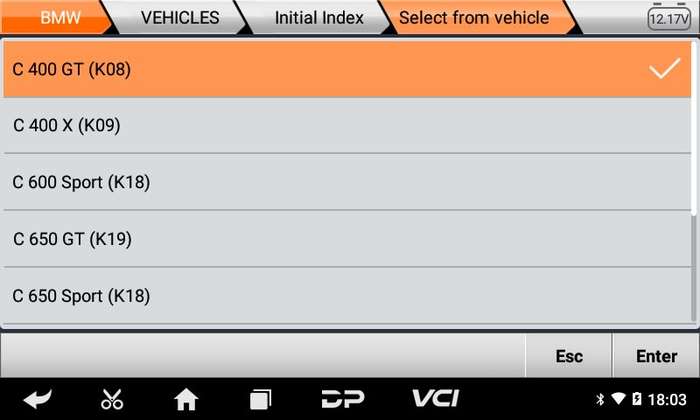

3Supported Systems/Vehicles List:

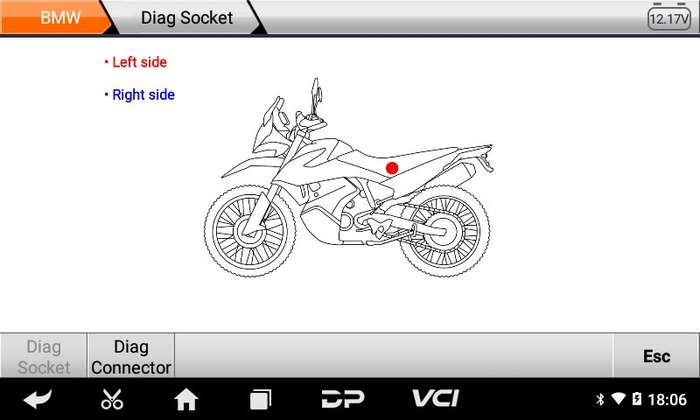

4) Diagnostic Socket/Diagnostic Connector Location:

Specifications:

• Operation system: Android 5.1.1
• CPU: RK3128 quad-core ARM cortex A7
• Battery: 2600mA, rechargeable polymer lithium battery
• Extension memory card: 32G micro SD (TF) card supported
• Storage capacity: 16GB
• LCD: 5.0 inch
• LCD resolution: 800*480
• Touch screen: Capacitive touch screen
• Wifi: Supported
• Working temperature: -20~55 (14~131)
• Storage temperature: -20~70 (-4~158)
• Weight: About 700g
• Dimension: 198mm*115*mm*31mm.
