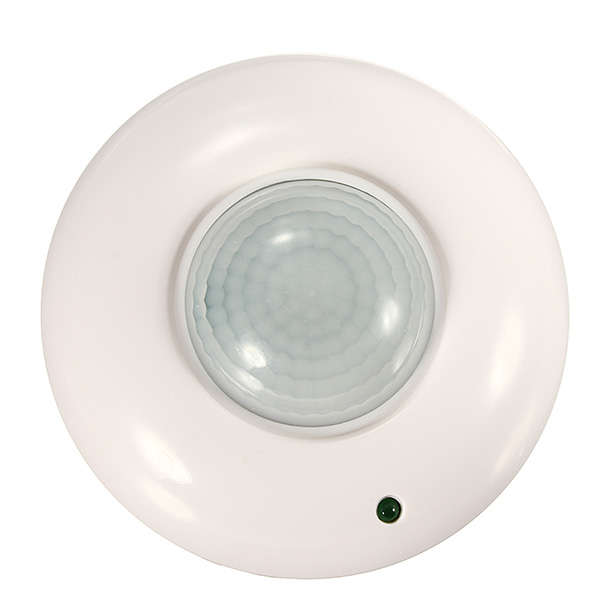

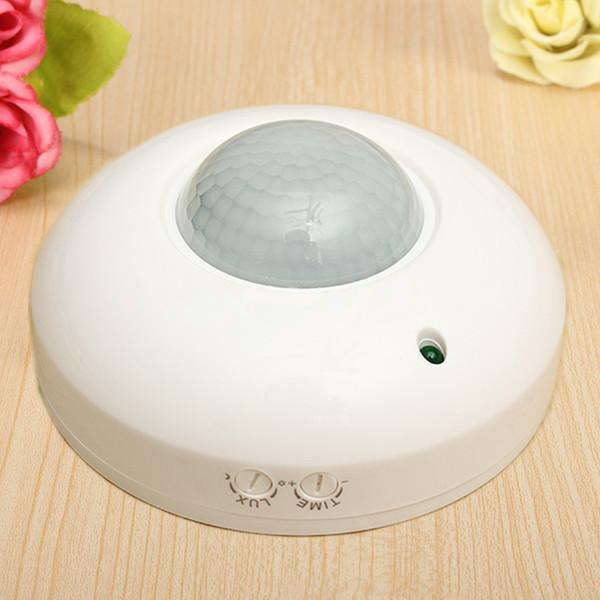

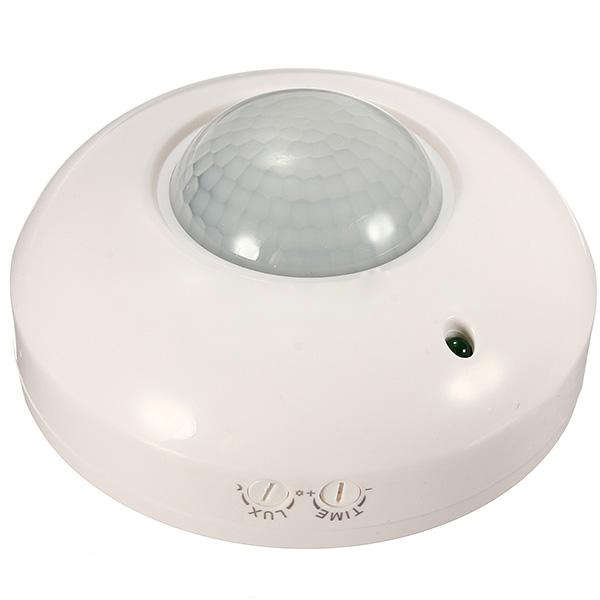

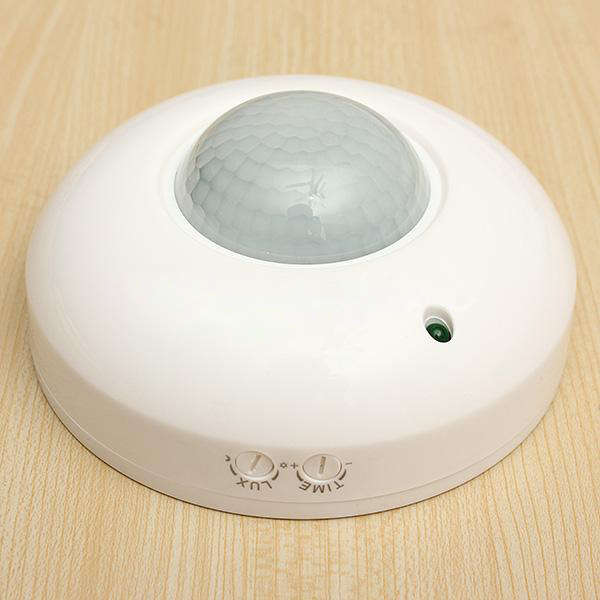

Occupancy Flexible LED Ceiling Recessed PIR Motion Sensor Switch AC220-240V

Features:
Commonly used to control lighting and extract ventilation.
Power-saving by ensuring lights and fans are not left on.
They will save energy by ensuring lights and fans not to be left on.
The energy savings will be high with a short energy saving investment payback time if connected to average energy level lighting such as fluorescent tubes, or compact fluorescent lamps. Higher savings if controlling tungsten or halogen lighting.
Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally.

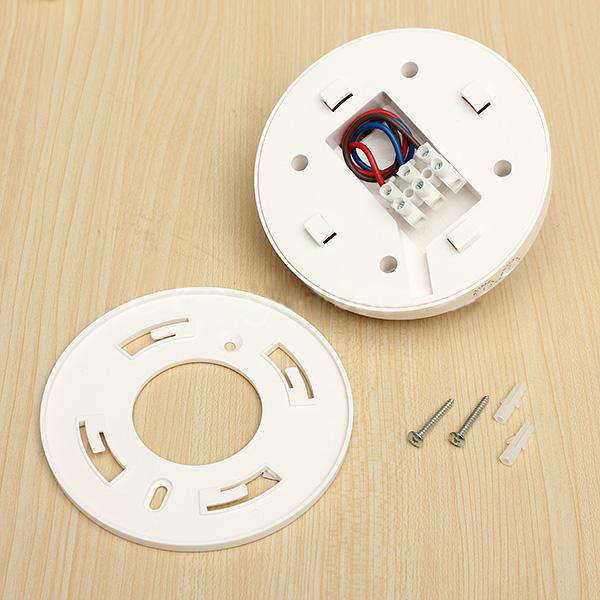

Note:
The red line should be connected with the fire line of the lamp.
The brown line should be connected with the 220V fire line.
The blue line should be connected with the 220V zero line.

Specifications:
Power Source: 220 -240V AC
Power Frequency: 50Hz
Detection Range: 360ﾣ
Working Temperature: -20 - 40 deg C, Working Humidity: <93%RH
Ambient Light: 3-2000LUX (adjustable)
Time-Delay: min: 10sec&pm;3sec - Max: 7min&pm;2min
Installation Height: 2.2-4m
Power Consumption: 0.45W (work), 0.1W (static)
Rated Load: 1200W max(incandescent lamp)/ 300W max(energy-saving lamp)
Detection Motion Speed: 0.6 ~1.5m/s, detection distance: 6m max (24 deg C)
Dimensions: 11.1*11.1*5.2cm

Package included:
1 x Occupancy Sensor 360 Degree PIR Motion Light Switch
