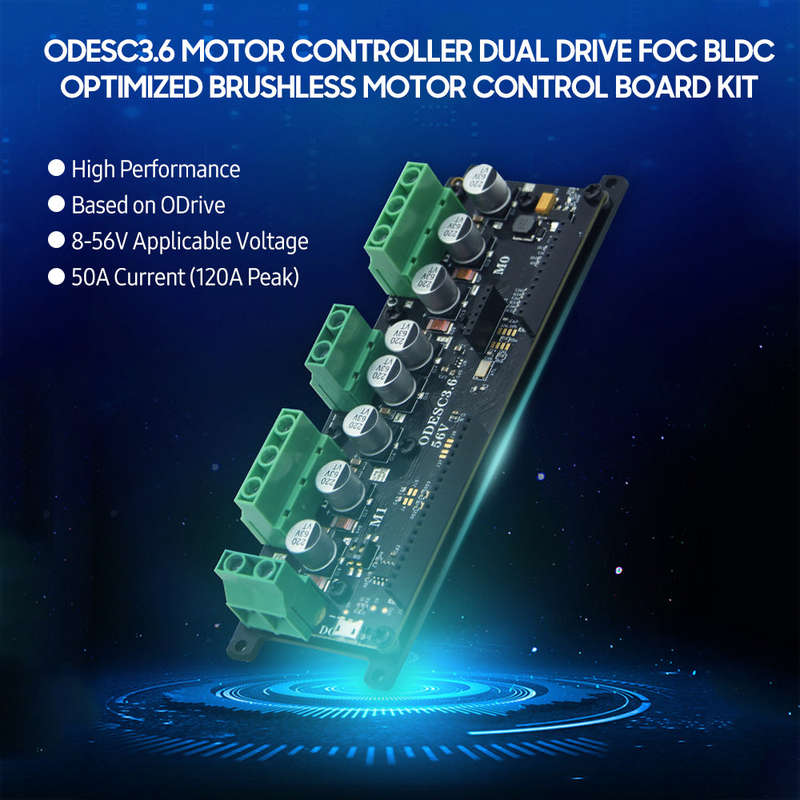

ODESC3.6 Motor Controller Dual Drive FOC BLDC High Power Optimized Brushless Motor Control Boa

The optimized dual drive ODESC3.6 motor controller board kit is of high performance, wide application, safe use, different modes and rapid heat dissipation. It's an excellent module kit designed for people who have a certain level of knowledge in electric circuit and are insterested in DIY.

Features:
This dual-drive brushless motor controller is based on ODrive, it features 8-56V applicable voltage and optimized high performance.
Mainly used for smart robot, large robotic arm, precision 3D printer, printing machine, electric surfboard, electric skateboard and so on.
Safe to use, with programmable voltage protection to prevent excessive battery discharge.
Multiple modes satisfy different needs-- speed mode, torque mode, current mode, position mode, trajectory mode, etc..

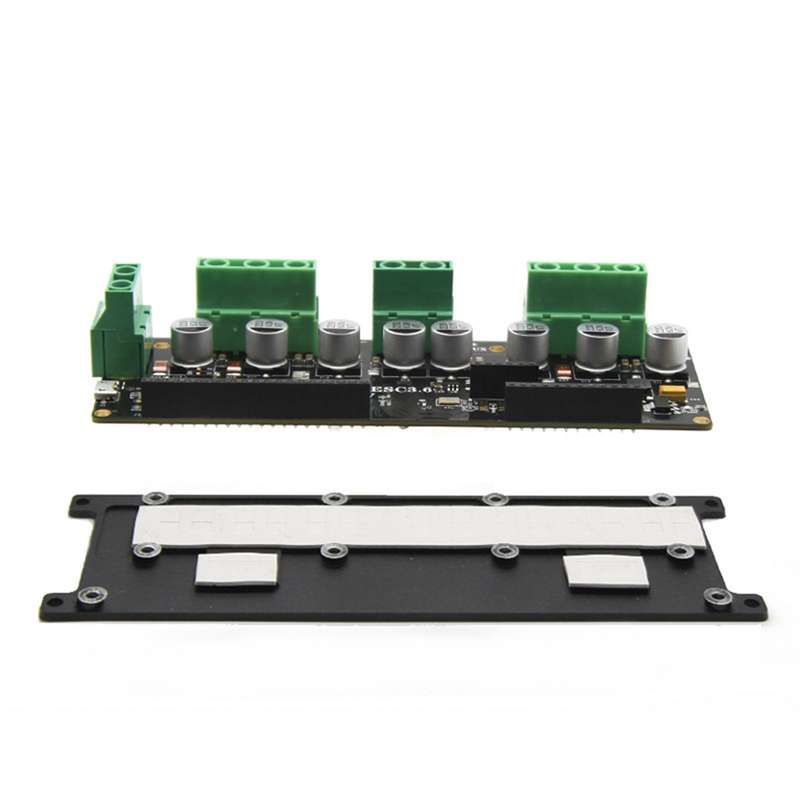

PCB integrated high current skylight, tin column, CNC customized heat sink, continuous and stable current, rapid heat dissipation to prolong service life.

Note: Size and color may be slightly different because of manual measurement and different light conditions. Thanks for understanding.

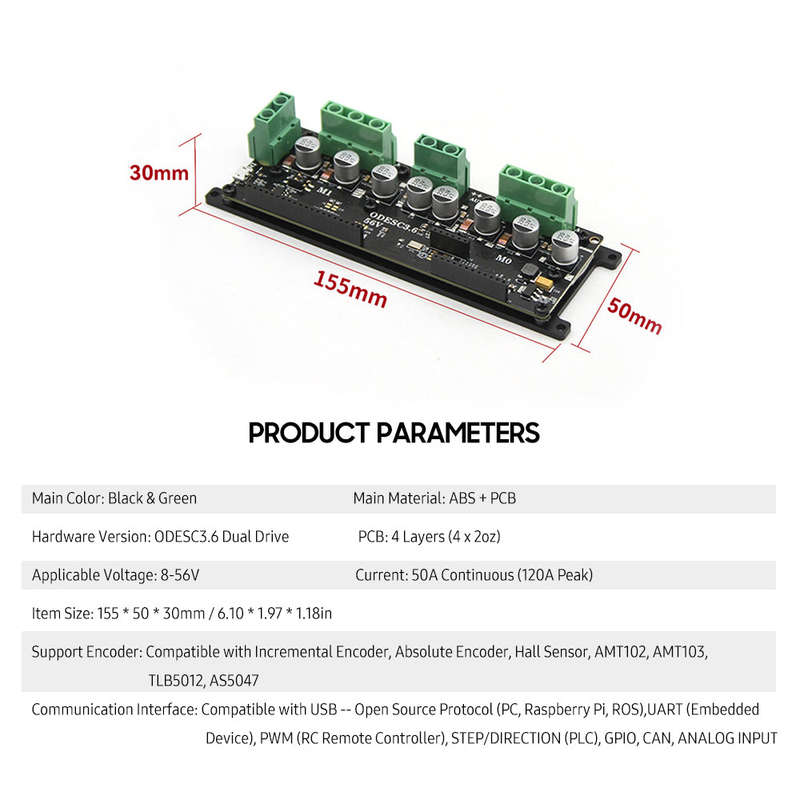

Specifications:
Main Color: Black & Green
Main Material: ABS + PCB

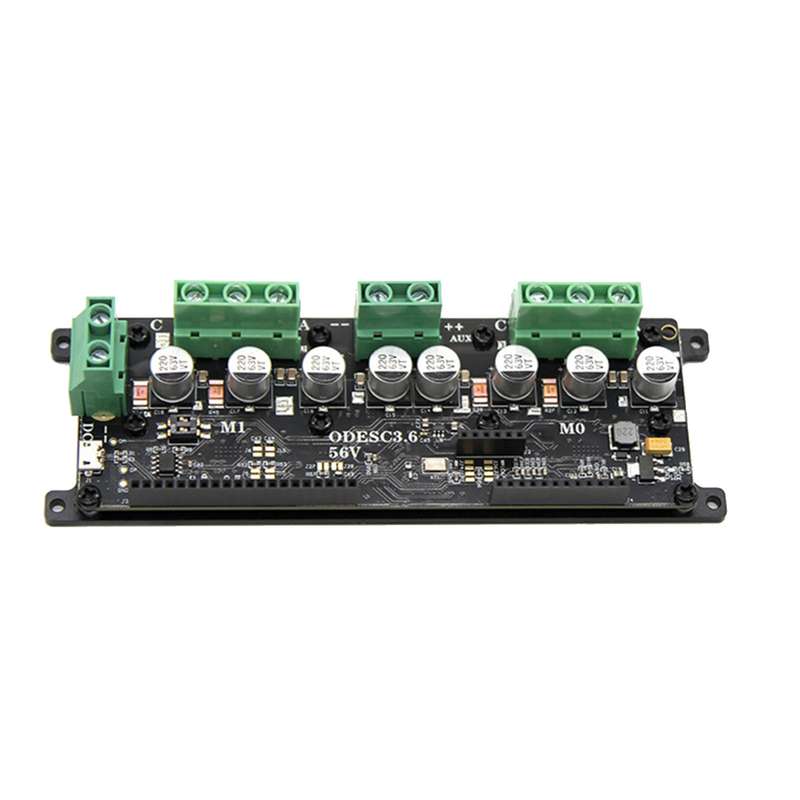

Hardware Version: ODESC3.6 Dual Drive
PCB: 4 Layers (4 x 2oz)
Applicable Voltage: 8-56V
Current: 50A Continuous (120A Peak)
Support Encoder: Compatible with Incremental Encoder, Absolute Encoder, Hall Sensor, AMT102, AMT103, TLB5012, AS5047
Communication Interface: Compatible with USB -- Open Source Protocol (PC, Raspberry Pi, ROS), UART (Embedded Device), PWM (RC Remote Controller), STEP/DIRECTION (PLC), GPIO, CAN, ANALOG INPUT
Item Size: 155 * 50 * 30mm / 6.10 * 1.97 * 1.18in
Item Weight: 164g / 5.76oz
Package Size: 19.5 * 12.5 * 3cm / 7.68 * 4.92 * 1.18in
Package Weight: 264g / 9.29oz

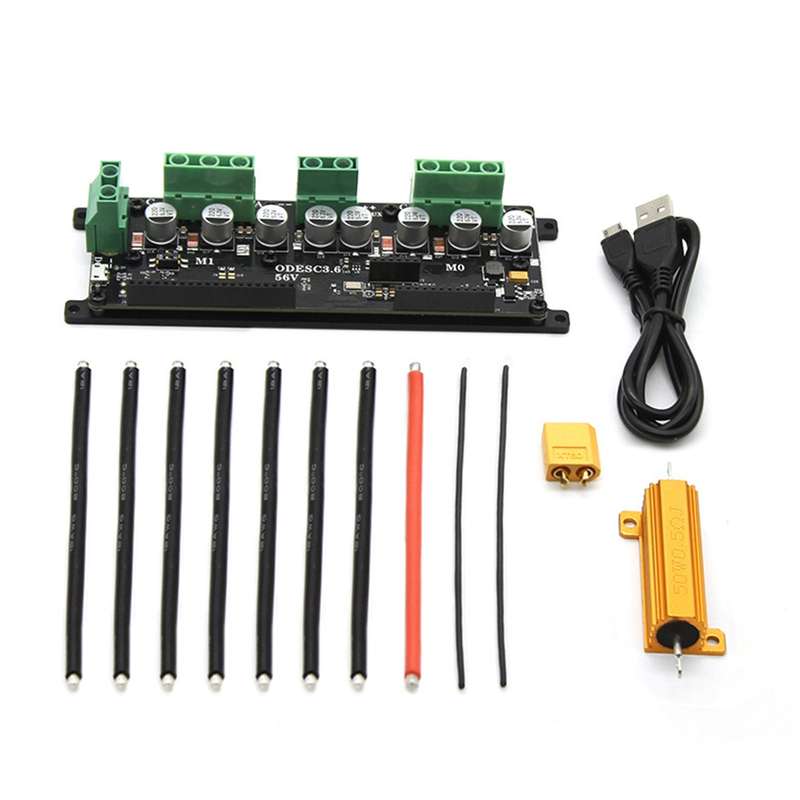

Package List:
1 * Motor Driver Board
1 * Power Resistor
1 * XT60 Male Head
1 * USB Cable
2 * 20AWG Resistance Wire
6 * 12AWG Motor Wire
2 * 12AWG Power Cable
