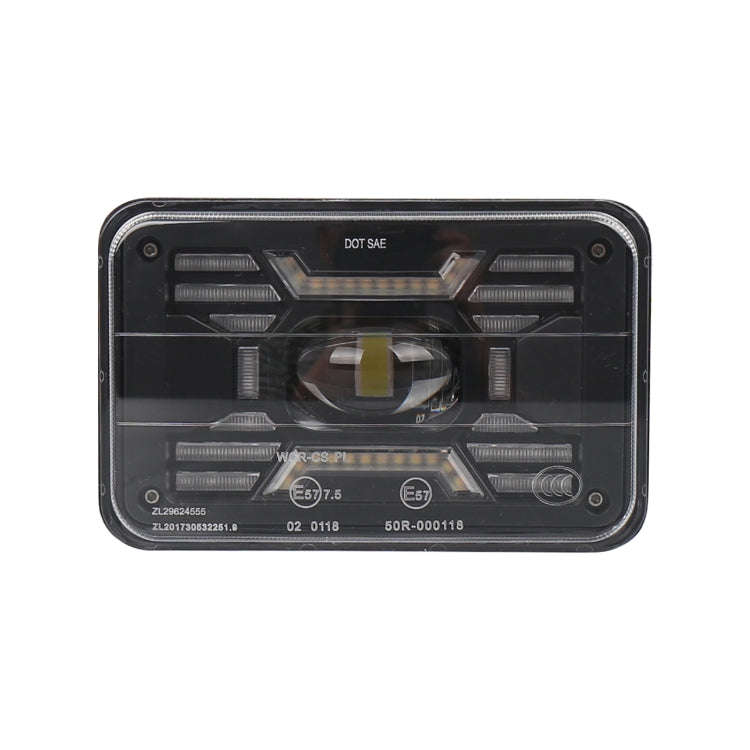

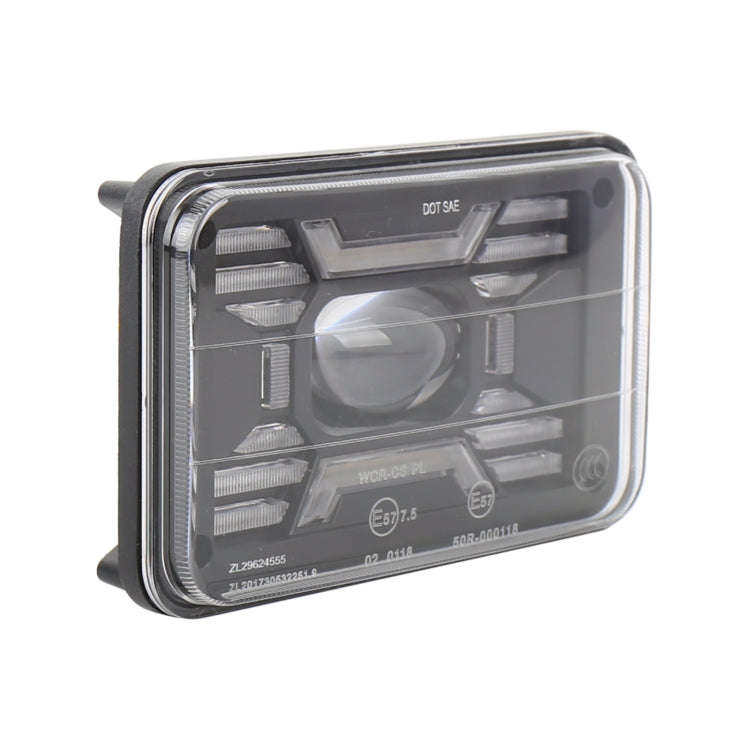

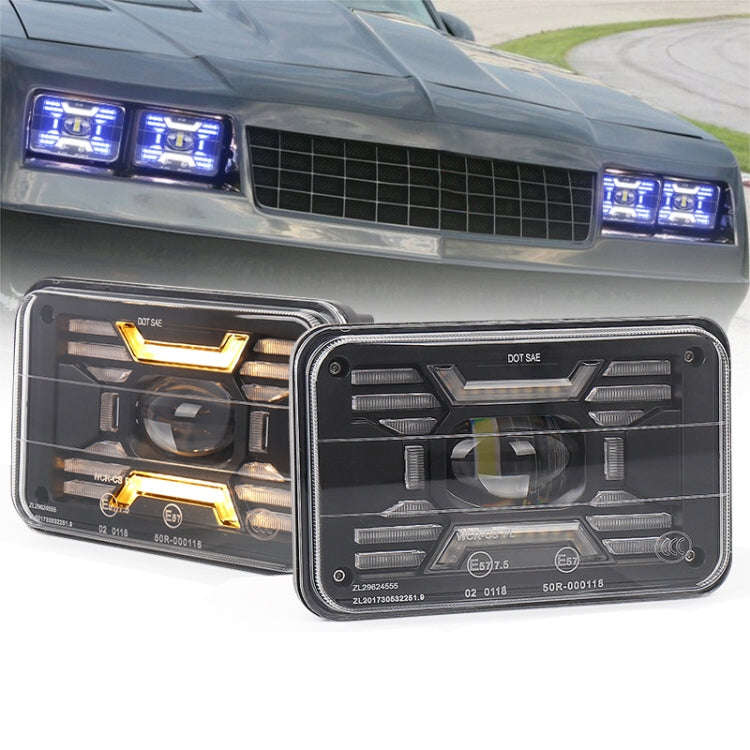

OL-2051S 1 Pair 4x6 inch Off-road Vehicle Modified Angel Devil Eyes Rectangular Headlight

1. Lamp body installation: unscrew the bolts on the decorative strip of the lamp frame, remove the decorative strip of the lamp frame, and expose the bracket; unscrew the screws and springs on the bracket, and remove the original lamp and bracket together; remove the bracket and the original lamp Separate and replace the product; place the product and the bracket on the lamp frame, screw on the bracket screw, install the lamp frame decorative strip and lock it with the screw.

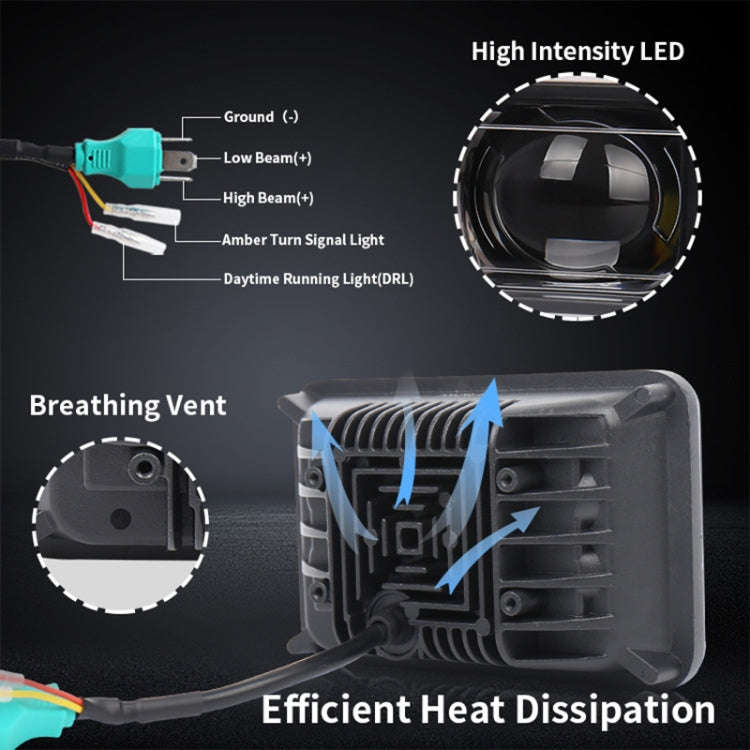

2. Wiring mode:

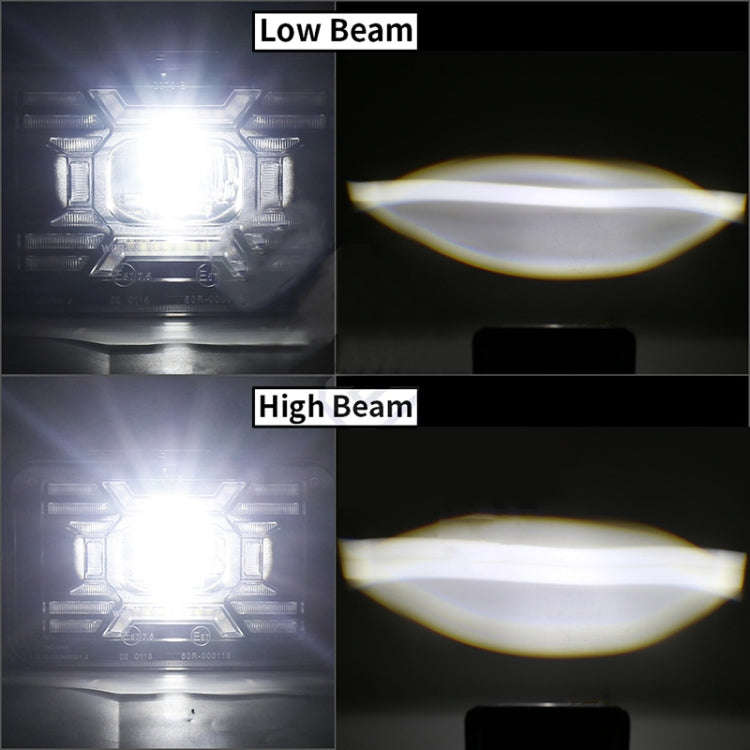

The far and near beams are connected to the headlight connector of the original car (H4 connector)
The turn signal is connected to the positive pole of the grid lamp (yellow wire)
Daytime running light, background light connects to ACC (red line)
3. Use as a work light: the rear shell is equipped with a bracket, which is directly screwed to the location where it needs to be installed.
4. Size: 4x6 inches
5. Power: 20W
6. Waterproof rating: IP67
7. Color temperature: 6500K
8. Voltage: DC12V
