Features
Supported Alarm Panels: Paradox, IDS X-Series & 806, Texecom Elite
Area & Zone Label Sync: Yes
Multi-Area Control: Yes
Arm / Set: Yes
Disarm / Unset: Yes
Stay Arm: Yes
Part Arm: Yes
Zone Status: Yes
Bypass Zone / Omit: Yes
AC Status: Yes
Panel Outputs / PGM: Yes
Remote Programming: Yes
Time Sync: Yes
Specifications
Peripheral Connection
Protocols: Serial & Keybus (depending on peripheral make & model)
Standard Cable Length: 1.5m
Maximum Cable Length: 3m
Connectors: 1 x 4 pin white Molex connector, 1 x 5 pin white Molex connector
Signals
Contact ID: Yes

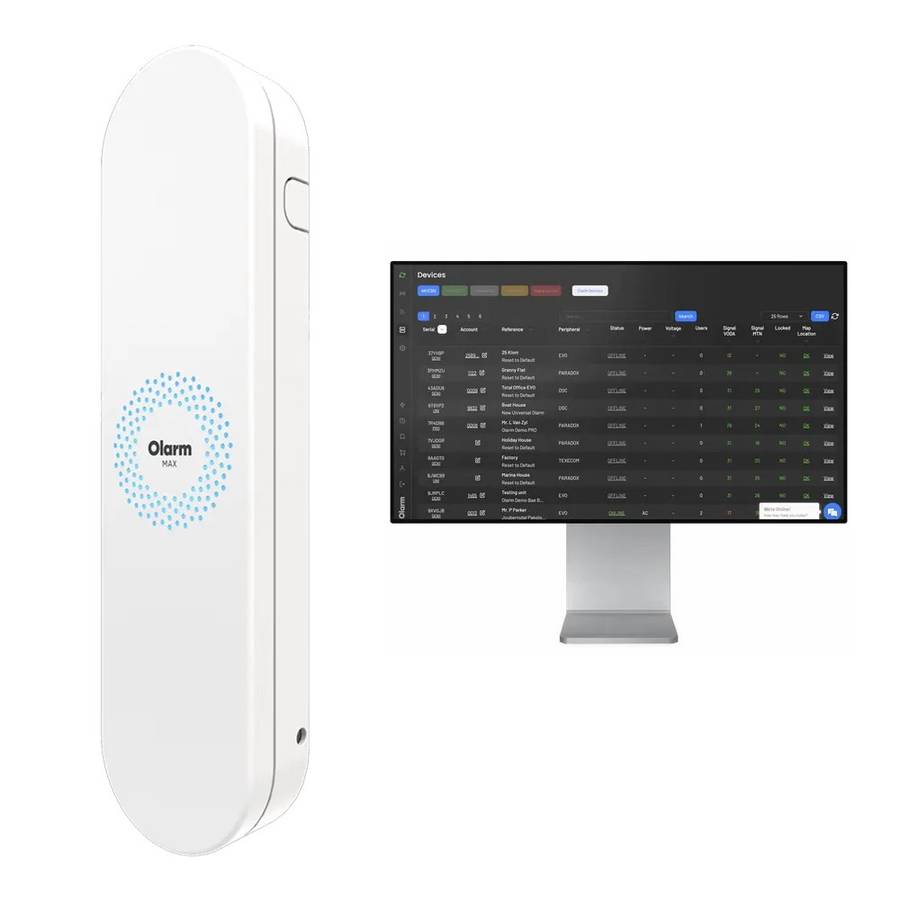

Remote Connect Serial Bridge: Using Olarm Remote Connect for remote management
Software (Supported)
Babyware
Wintex
IDSwift
Mechanical Specifications
Packaged Weight: 195 g
Packaged Dimensions: 205 x 52 x 46 mm
Device Weight: 111 g
Cable Weight: 40 g
Device Dimensions: 200 x 50 x 20 mm
Enclosure Material: ABS - Resin MG47F
Status Indicator: RGB LED
Tamper Detection & Prevention
Enclosure: Tamper resistant design

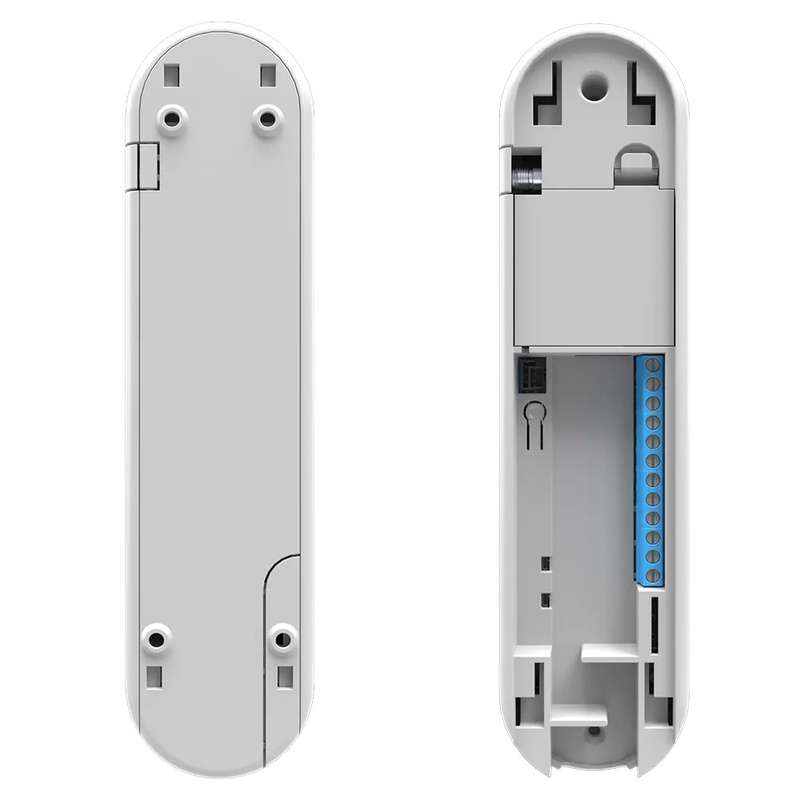

Wall Mount: Includes tamper breakaway tab
Antennas: Tamper-proof internal antennas for 4G, and Wi-Fi
Tamper Detection: Optical sensor with alerts via Olarm APP and Contact ID
Power Supply
Voltage: 7 to 24VDC
Current: 100 mA (typical), 250 mA (max) @ 12 VDC
Supply Source: Typically supplied from the alarm panel / electric fence energizer via provided cable (ensure at least 300mA)
Internal Battery
Battery: 3.7V LiPo 1300mAh - 703845 or smaller
Connector: JST2
Battery Holder Dimensions: 8 x 38 x 45 mm
Note: Battery not included, sold separately
Operating Conditions
Temperature: —15 to 60°C
Humidity: 0 - 90% RH
Radio / Wireless Technologies
Connectivity: 4G, 2G & Wi-Fi (simultaneous multi-path routing)
Mobile Connectivity: 4G & 2G with tamper-proof internal & optional external antennas (SMA connectors)
Mobile Network Switching: Typically under 60 seconds (coverage & network dependent)
Regional Models
Olarm MAX A: South Africa, Africa & Europe
LTE-FDD Frequency Bands: B1/3/5/7/8/20/28
GSM Frequency Bands: B3/8
SIM Cards
South Africa: 2 x Olarm managed local SIM cards - Vodacom & MTN
Wi-Fi - 2.4GHz
Standards: IEEE 802.11b/g/n
Center Frequency Range: 2412 ~ 2484 MHz
Antenna Type: Tamper-proof internal
Data Rate
20MHz: 11b: 1, 2, 5.5, 11 Mbps; 11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 11n: MCS0-7, 72.2 Mbps (Max)
40MHz: 11n: MCS0-7, 150 Mbps (Max)
Tx Power: 13 to 19.5 dB (Data rate dependent)
Rx Sensitivity: -69 to -97 dBm (Data rate dependent)
Encryption: WPA2-PSK
WPS Setup: Yes
Configuration
Setup: Plug-and-play zero configuration via device QR Code scan within Olarm APP
Olarm APP Users: Unlimited (requires active subscription)
Package Contents
1x Olarm MAX
1x Tamper-proof wall mount
Mounting hardware

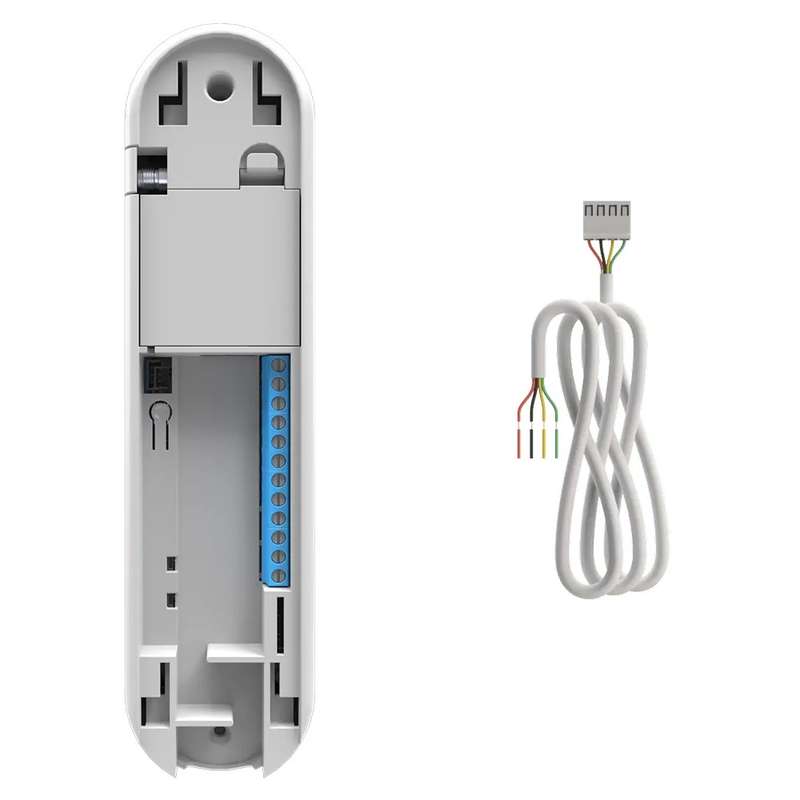

1x Reversible 1.5m peripheral cable
Compatible Alarm Panels
Paradox
MG5050 (minimum panel firmware v1.11.001)
MG5050+ (minimum panel firmware v1.11.001)
SP6000 (minimum panel firmware v1.10.004)
SP6000+ (minimum panel firmware v1.10.004)
SP65
EVO192
Texecom
Elite 24
Elite 48 (coming soon)
Elite 64
Elite 64-W
Elite 64-W LIVE
Elite 88
Elite 168
Elite 640 (coming soon)
IDS
806 (requires adapter board - sold separately)
X16 (requires adapter board - sold separately)
X64 (requires adapter board - sold separately)
X64 Serial (requires adapter board - sold separately)
Orisec
ZP-20 (coming soon)
ZP-40 (coming soon)
ZP-100 (coming soon)
Honeywell
Galaxy G2 (coming soon)
Pyronix
(coming soon)
