OLED LCD Display Module I2C Interface Blue 0.91 Inch
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

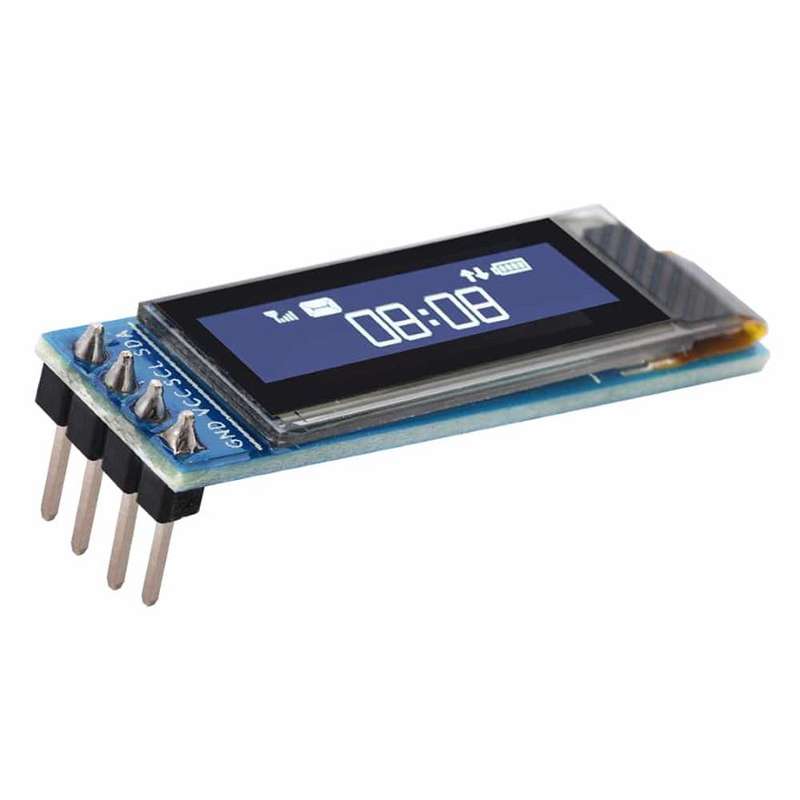

0.91-inch OLED LCD Display Module I2C Interface Blue
Are you looking for a unique way to upgrade your projects? Look no further than the 0.91 Inch OLED LCD Display Module I2C Interface Blue! Perfect for crafting and hobbyist projects, this vibrant display module is sure to make your work stand out from the crowd.
The OLED 0.91 inch is a monochrome graphic display module, 128X32 high-resolution display. This module can work despite the absence of a backlight. In a dark environment, the contrast of OLED 0.91inch is higher than LCDs, which is an important application advantage of OLED graphic displays.
The device is I2C or SPI compatible, It is a durable product as it can withstand the use of long hours. If you are looking for a device with clear visibility, this is the perfect one for you. It has outstanding contrast and brightness that will cater to your needs. It can also be used in various applications due to its capability in displaying.

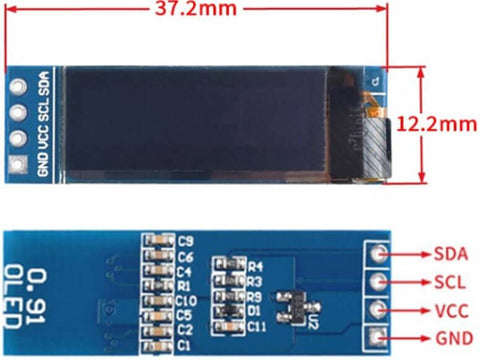

Pin Out & Dimensions
The above image shows us the display's pinouts as well as its dimensions so that you will be able to connect the display correctly and easily as well as know exactly how much space is required for the screen itself.

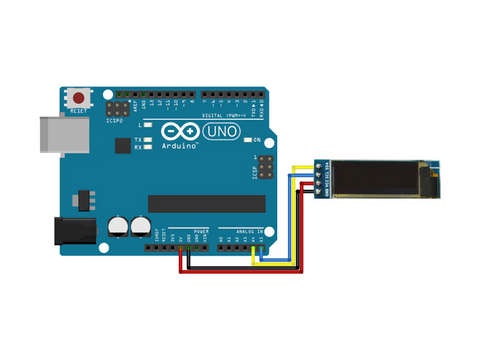

Simple Wiring Diagram
The above image shows us a simple and easy way of connecting the 0.91 Inch OLED LCD Display Module I2C Interface Blue with the Arduino Uno. This simple wiring diagram will not work without the correct corresponding code.
0.91 Inch OLED LCD Display Module I2C Interface Blue Specifications
Operating voltage | 3.3V/5V |
Interface | I2C |
Driver | SSD1306 |
Resolution | 128 x 32 |
Dimension | 36 x 12.5 (mm) |
Documentation
- SSD1306 Library
