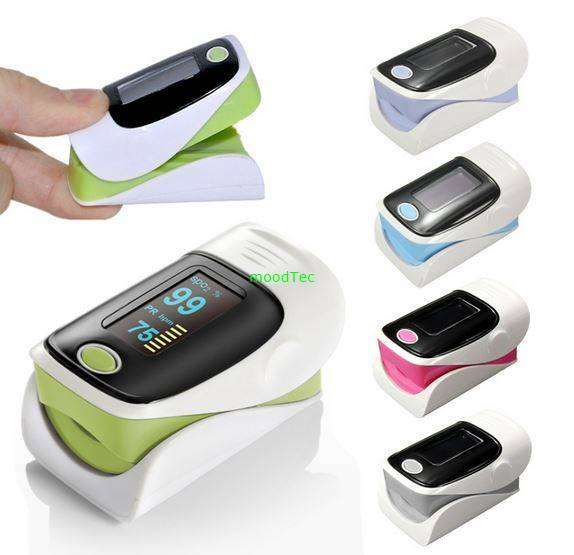

Combines blood oxygen probe and heart rate in single display module
Lightweight and portable, convenient to carry
Easy to use with low-power consumption
Oxygen saturation display
Pulse rate and bar graph display
Pulse wave display
Low-voltage indicator
Four directions display modes
Automatically powers off in 5 seconds when finger removed
- Quantity: 1
- Display Screen: 1.1" color OLED display, resolution: 96 x 64
- SpO2: Measurement range: 70~99%; Resolution: 1%; Accuracy: 70%~99% +/- 2%, unspecified <70%
- Pulse rate: Measurement range: 30~240bpm, Resolution: 1bpm, Accuracy: +/- 2bpm or +/- 2% (select larger)
- Power: 2 x AAA alkaline batteries (not included)
- Power consumption: <=30mA
- Working voltage: DC 3V
- Measurement principle: the principle of the oximeter is as follows:
- An experience formula of data process is established by exerting Lambert Beer Law according to Spectrum Absorption Characteristics of Reductive hemoglobin (R Hb) and oxyhemoglobin (O2 Hb) in glow and near-infrared zones; Operation principle of the instrument is to combine Photoelectric Oxyhemoglobin /inspection Technology with Capacity Pulse Scanning and Recording Technology, so that two lights with different wavelength (660nm glow and 940nm near infrared light) can be focused onto human nail through perspective clamp finger-type sensor. Then measured signal can be obtained by a photosensitive element, information acquired through which will be shown on two groups of LEDs through process in electronic circuits and microprocessor
- Two color OLED display, more display modes
- Low-power consumption, continuously four directions adjustable
- Low voltage indicator
- Automatically power off in 8 seconds when there is no signal
- Compact design, lightweight for convenient to carry
- Can be used in hospital, home, community medical treatment, sports healthcare, etc.
- Packing List:
- 1 x Oximeter
- 1 x Strap
- 1 x English user manual
