OLED/TFT Color DevKit ESP32 Watch Development Board (COLOR1: #2)

20 available / new

R1,249.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643385858

SELECTED OPTION:
COLOR1: #2

What is it

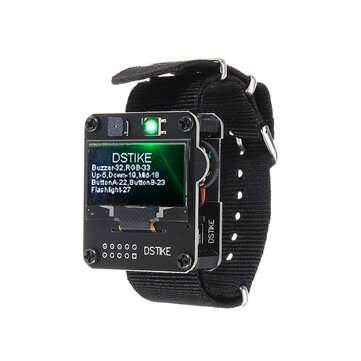

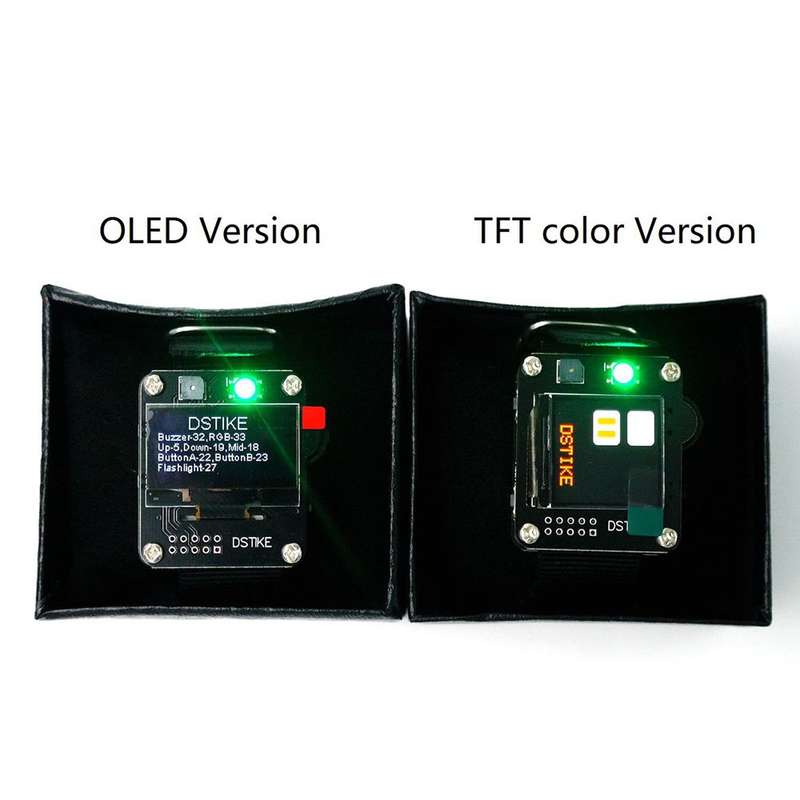

It is a ESP32 Watch development board. There are two versions: OLED version and TFT color version. Both version share the same bottom board. Why did you make it
This product was planned at the same time of deauther wristband. I learned a lot of experience from deauther wristband and I knew ESP32 is a better choice for a Watch. The break ou pads are also designed to connect different sensors. TX/RX could be used to communicate with computer or other control board. 17/16 is IIC port could be connected with RTC module or other IIC sensors. SVP/SVN could input ADC signals. 25/26 could output DAC signals. What makes it special

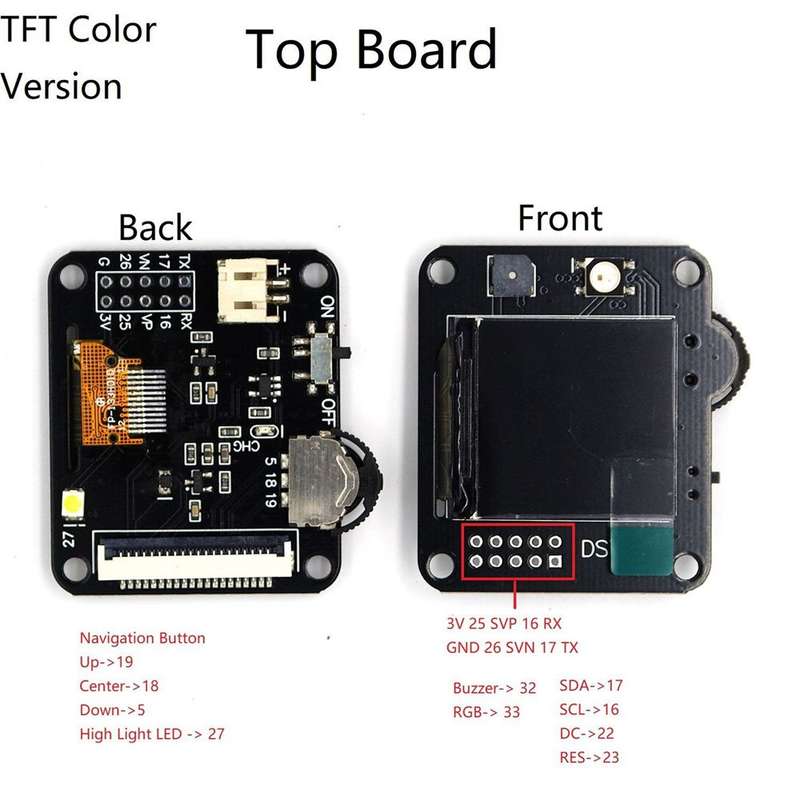

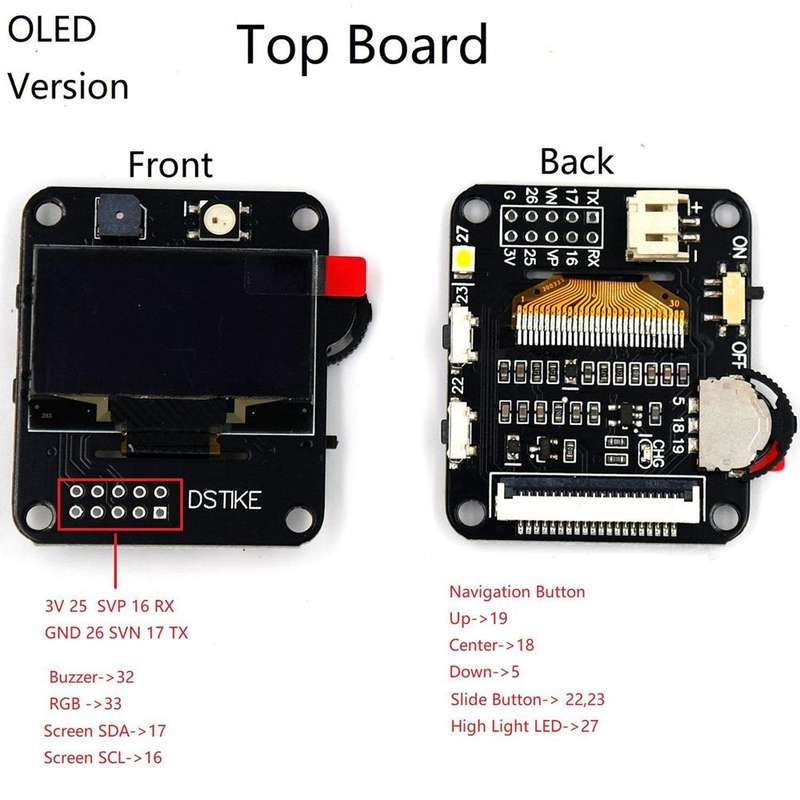

Small size: 3.8x4.5cm Height:1.5cm Double 4 layer board 600mAh battery inside On/OFF Power Switch OLED version:1.3OLED SH1106(SDA-17,SCL-16) TFT color version: ST7789 240*240 LCD(SDA-17,SCL-16,DC-22,RES-23) Buzzer-32 WS2812b RGB LED-33 Navigation Button(Up-19,Center-18,Down-5) OLED version external slide button(22,23) Highlight LED(27) Indicate charging LED(On means Charging,OFF means Full) Reset and Flash Button at Bottom board Break ou GPIOs(TX,RX,17,16,SVP,SVN,25,26,GND,3V)

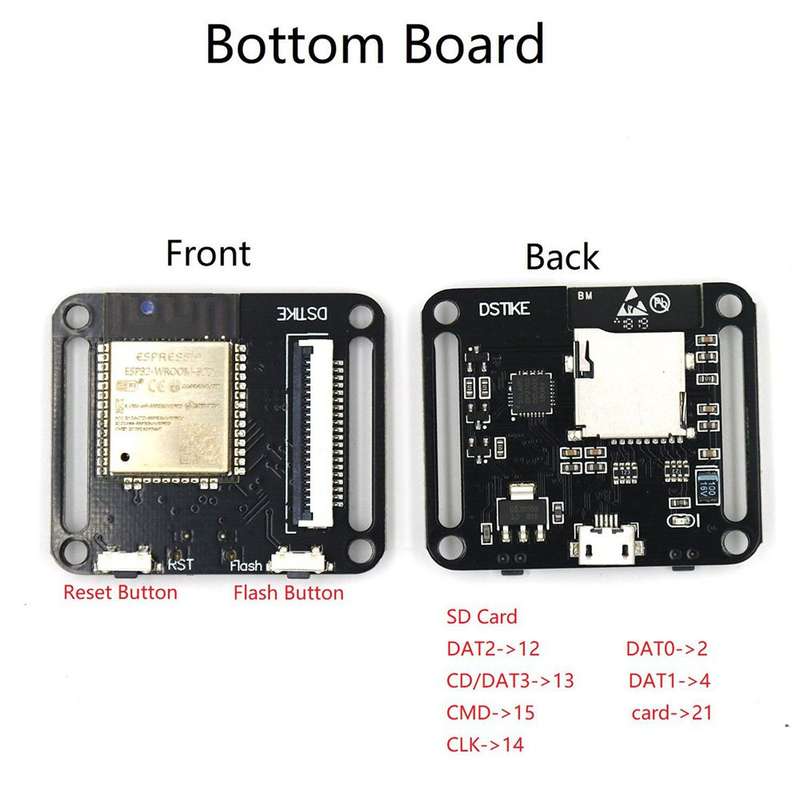

SD Card support GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card
Tutorial:

1. 2. 3. 4.

Package Included:

1 xDSTIKE ESP32 Watch DevKit
