OLED Version DevKit ESP32 Watch Development Board

What is it
It is a ESP32 Watch development board.
Why did you make it
This product was planned at the same time of deauther wristband. I learned a lot of experience from deauther wristband and I knew ESP32 is a better choice for a Watch. The break ou pads are also designed to connect different sensors. TX/RX could be used to communicate with computer or other control board. 17/16 is IIC port could be connected with RTC module or other IIC sensors. SVP/SVN could input ADC signals. 25/26 could output DAC signals. What makes it special

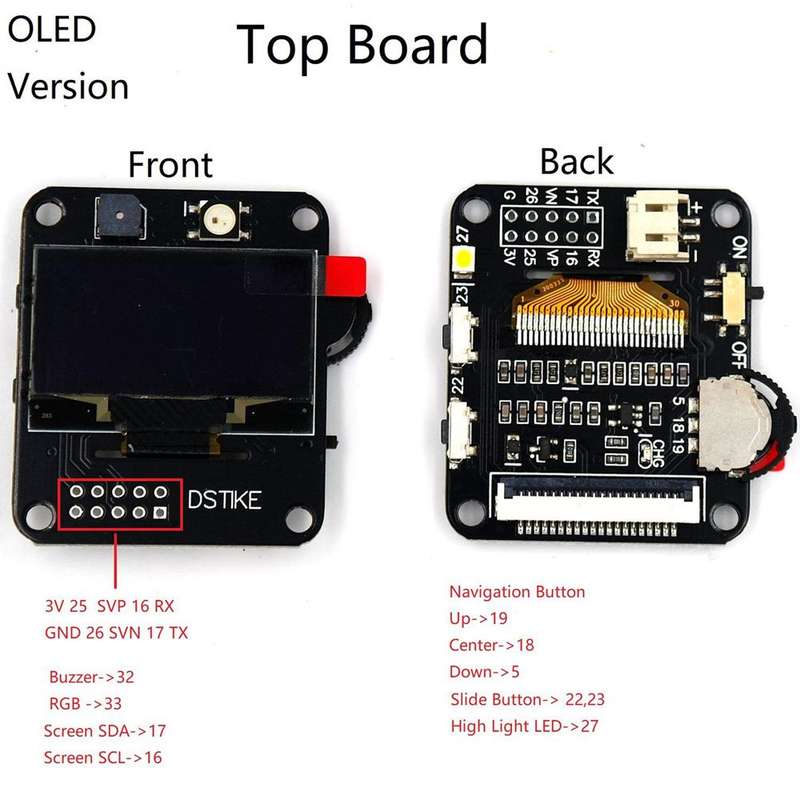

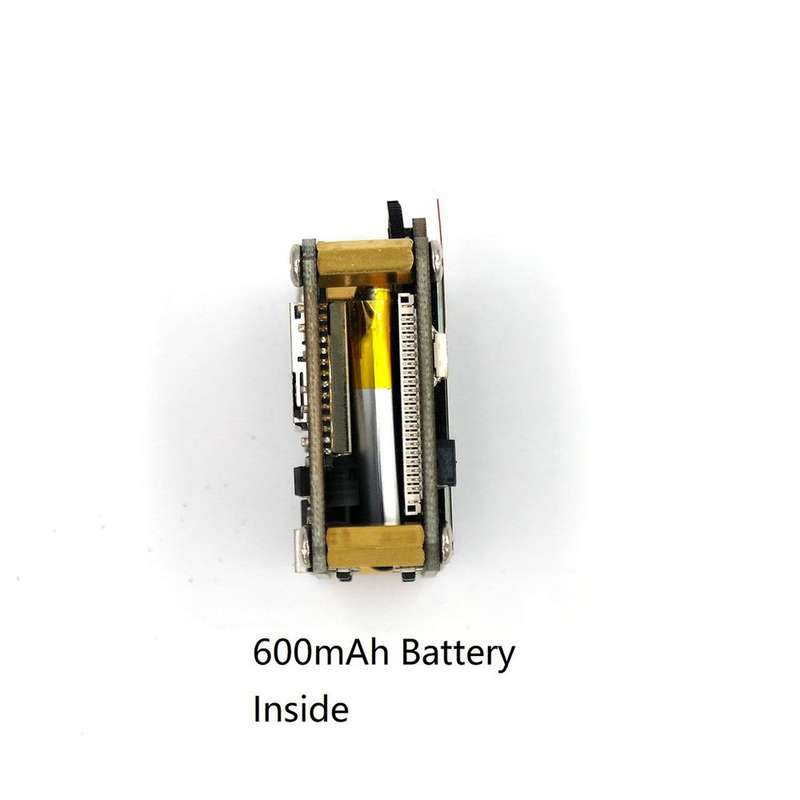

Small size: 3.8x4.5cm Height:1.5cm Double 4 layer board 600mAh battery inside On/OFF Power Switch OLED version:1.3OLED SH1106(SDA-17,SCL-16) Buzzer-32
WS2812b RGB LED-33 Navigation Button(Up-19,Center-18,Down-5) OLED version external slide button(22,23) Highlight LED(27) Indicate charging LED(On means Charging,OFF means Full) Reset and Flash Button at Bottom board Break ou GPIOs(TX,RX,17,16,SVP,SVN,25,26,GND,3V)

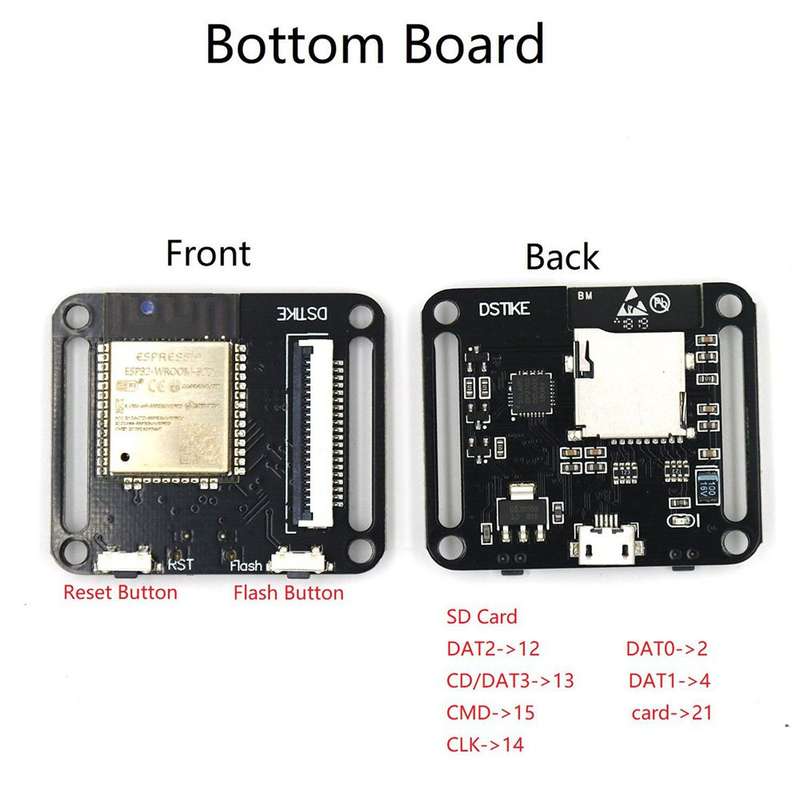

SD Card support GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card
Tutorial:

1. 2. 3. 4.

Package Included:

1 xDSTIKE ESP32 Watch DevKit
