About this item

• : If your setup requires the use of an adaptor plate,it is very important to follow the installation instructions from the manufacturer of adaptor plate for proper mounting. Specifically, please pay attention to the - and the need to apply to ensure overall reliability of your Osight.

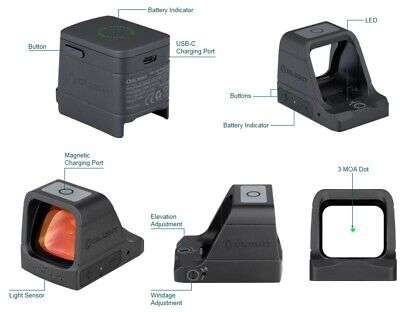

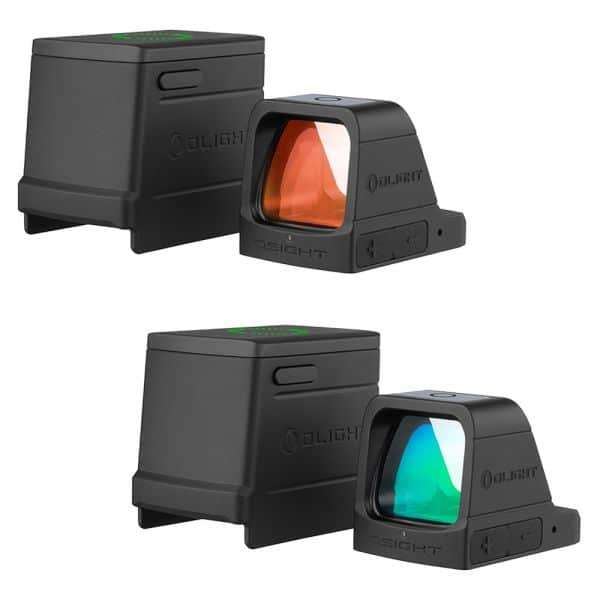

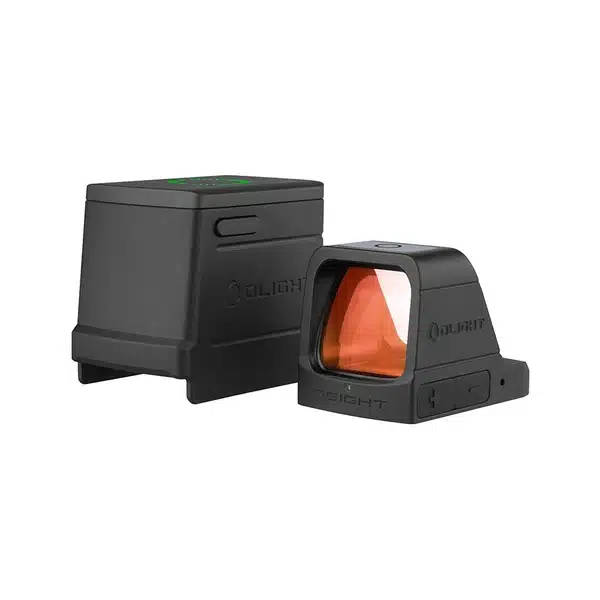

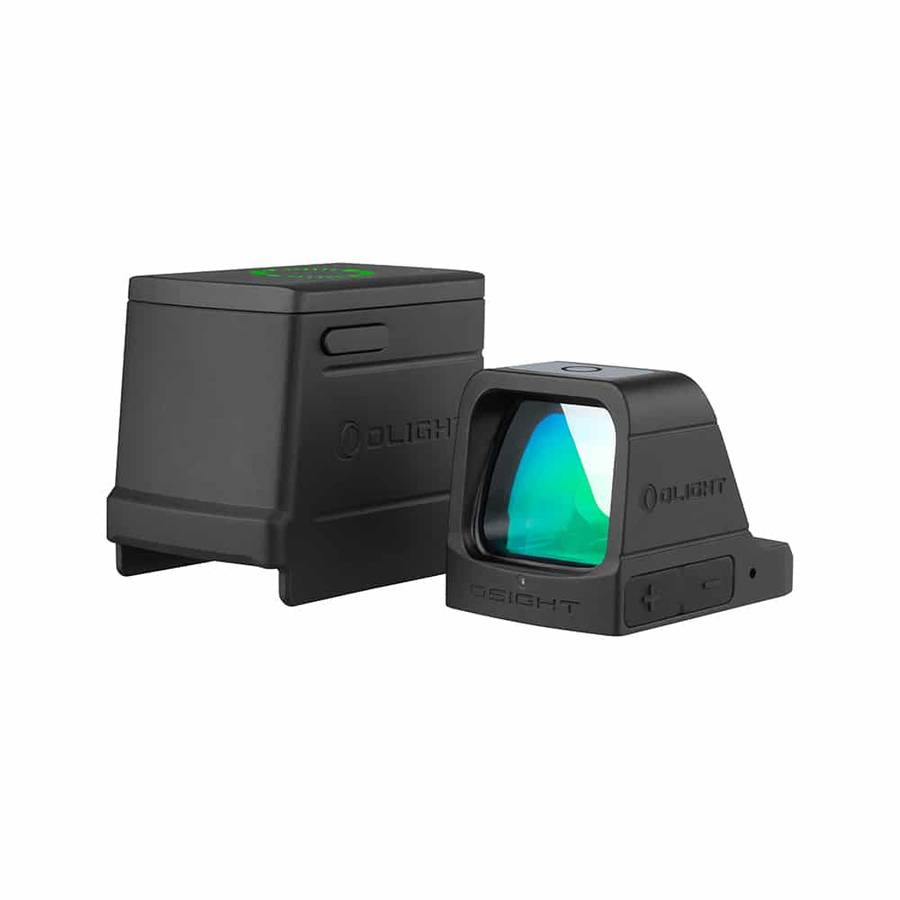

• [' ] The charging cover has a percentage battery display for you to monitor the battery level of both the charging cover and the optic anytime. The well-built cover can also protect your optic from dust and scratches when it's stored in your strong box warehouse.
• [- ] On a single charge, the optic itself can last over 70,000 hours on its lowest mode. Even at its brightest setting, it can continuously run for over 17 days and this duration can be extended to over 70 days with the support of a fully charged charging cover.
• [ ] Featuring a 0.94in x 0.85in lens, the optic ensures accurate target acquisition even during recoil.
• [ ] The dot is clear and easy to locate, ensuring swift and precise dot acquisition.
• [ ] The optic can be easily zeroed at 15-yard, 25-yard, or 30-yard distances with windage and elevation adjustments. The default zeroing distance is 25 yards.
• [ ] The OLIGHT Osight allows you to wake your optic in an instant. The optic turns off automatically after 10 minutes of inactivity.

Product Description

1. See the Power

   • The OLIGHT Osight adopts the industry-standard mounting footprint (Ruggedized Miniature Reflex, 407c/507c footprint) for broad product compatibility.

   1. Mounting compatible (requires mounting plate or slide cut);
   2. Compatible with full-size or compact models. Subcompact models are not recommended.

Tech Specs

Reticle Type	3 MOA Dot
Light Wavelength	Osight GN: 525 nm
Footprint	Ruggedized Miniature Reflex; 407c/507c Footprint
Adjustment	1 MOA Per Click
W&E Travel Range	± 45 MOA
Torque Specification	17in-lbs Per Screw
Runtime (Mode 1)	Over 70,000 Hours
Charging Type	Magnetic Charging (Optic); USB-C Charging (Charging Cover)

Window Size	0.94 x 0.85in
Weight	2.12oz/60g (Optic); Charging Cover: 1.76oz/50g (Charging Cover)
Dimensions	1.77 x 1.18 x 1.29in (Optic); 2.01 x1.38 x 1.73in (Charging Cover)
Waterproof Rating	IPX6 (Optic); IPX4 (Charging Cover)
Magnification	1x
Power Source (Optic)	Built-in 170mAh Rechargeable Lithium Polymer Battery
Power Source (Charging Cover)	Built-in 800mAh Rechargeable Lithium Polymer Battery
Feature	Parallax Free, Unlimited Eye Relief, Motion Sensor, Light Sensor, Memory Function
