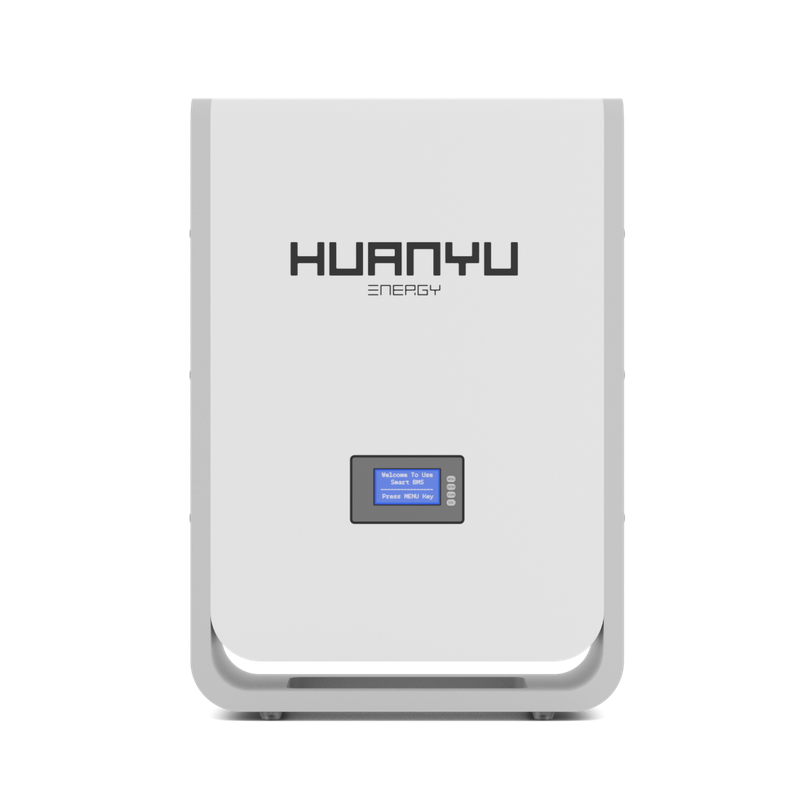

Oliter/Huanyu Energy Lithium Ion battery 5.12kWh Wall mount
Nominal Voltage(V) | 51.2V |
Nominal Capacity(WH) | 5120Wh |
Usable Capacity(Wh) | 4096Wh/80%DOD |
Design Life | 10+ Years (25°C) |
Dimension(mm) | 458*197*610 |
Weight(kg) | 54 |
Cycle Life | >6000 , 25°C |
Discharge Voltage(V) | 40~58.4 |
Charge Voltage(V) | 56~58.4 |
Charge/Discharge Current(A) | 50A(Recommended)100A(Max) |
Internal Resistance | 30m |
Power Consumption | <2W (Work) <100mW(Sleep) |
Monitoring Parameters | System voltage, Current, cell voltage, cell temperature, module temperature |
SOC | Intelligent algorithm |
Communication | CAN/RS-485/RS-232 |
Operating Temperature Range | -10 ~50°C |
Transport or Storage Temperature Range | -20 ~45°C |
Humidity | 15%~85% (No Condensing) |
Warranty | 10years or 6000cycles |
