Omnibus F7 Pro Flight Controller Built-in Dual Gyro AIO OSD Current Sensor and LC Power Filter for R

Omnibus F7 Pro Flight Controller Built-in Dual Gyro AIO OSD Current Sensor and LC Power Filter













Specification: ?( )
Item Name: Omnibus F7 Pro Flight Controller
Processor: STM32 F745 MCU ( Faster than?the current F3 and F4 processors)
Size: 36x36mm
Mount Hole: 30.5x30.5mm Weight: 6.6g Two gyros on the flight controller: a MPU6000 for sampling up to 8khz ;
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?and ICM20608 for sampling up to 32khz?

- Built-in betaflight OSD - Built-in Current Sensor - Built-in 5V LC-power filter - Built-in Barometer?
- Support DShot ESC - SD card reader for recording black box data (SD card not included) Supports 2-4s natively, 5-6s with 220uf 35V capacitor 5v/1A regulator Support PPM/SBUS/IBUS/DSM2/DSMX protocol receiver LED_strip ready pin headers? Buzzer ready pin headers Smart port ready Pin headers Compatible 4 in 1 ESC with JST-SH 1.0 6pin housing

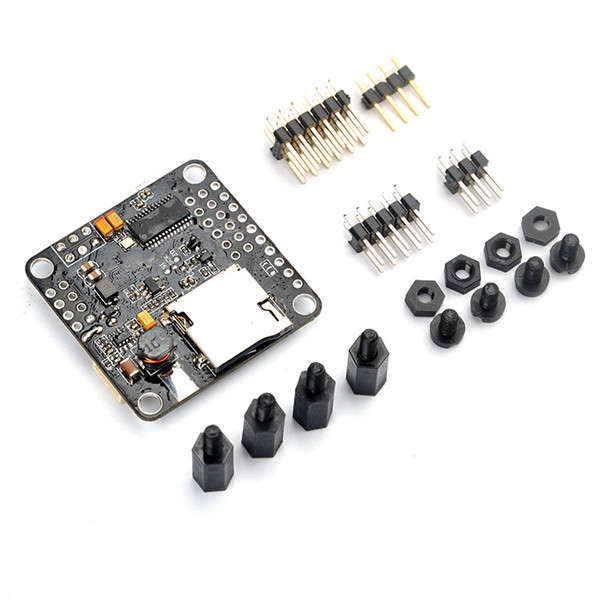

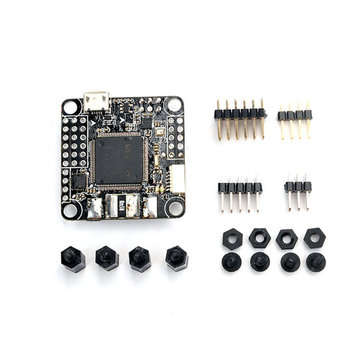

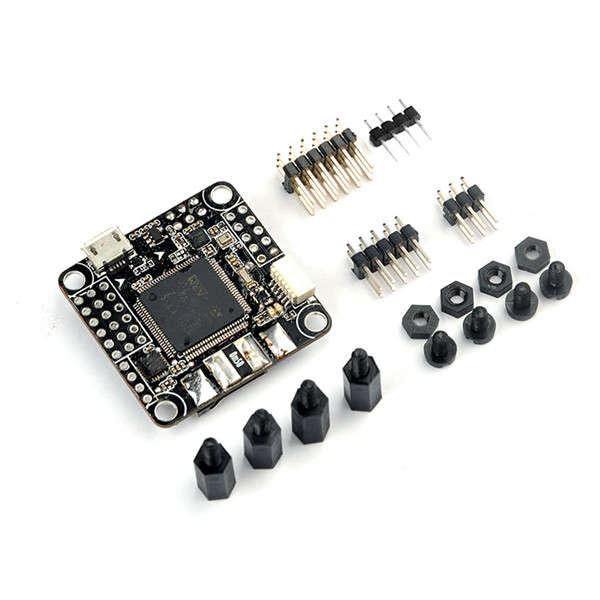

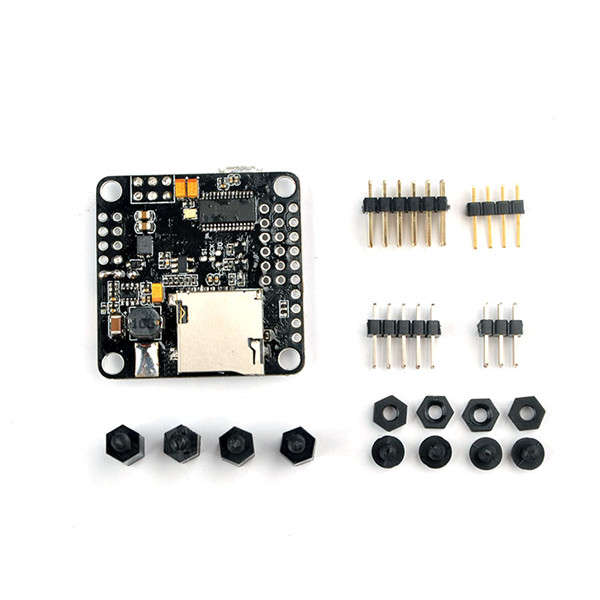

Package Included:
1xOmnibus F7 Pro flight controller 4x M3 screws? 5x M3+4x 5 Nylon column? 4x M3 Nut
