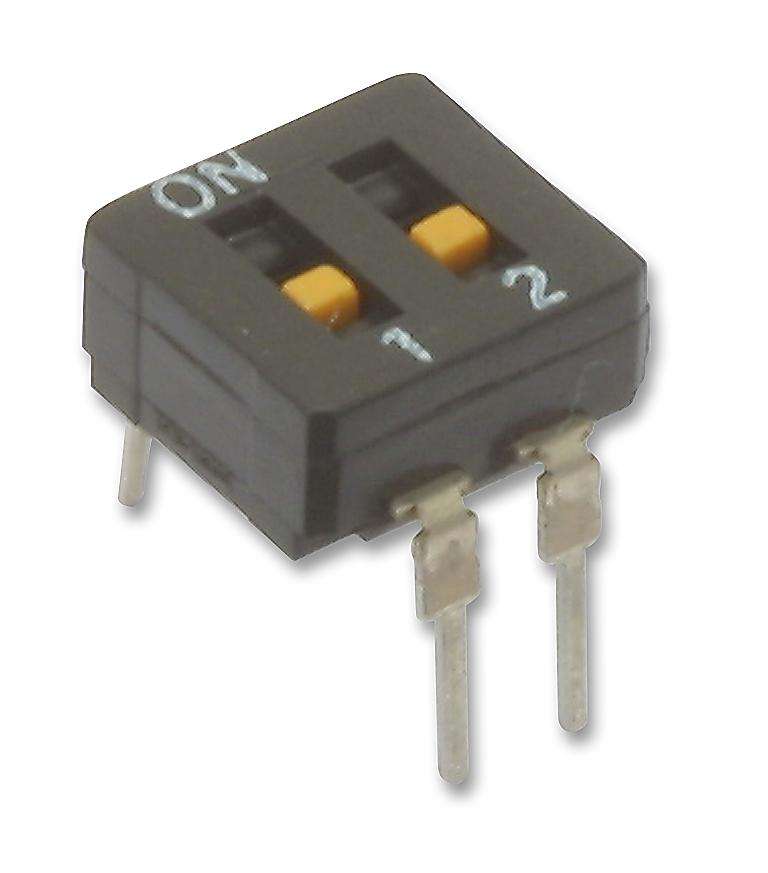

Omron (A6D-2100) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 2 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 2CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Through HoleSwitch Type: DIP SealedContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: A6DProduct OverviewThe A6D series Sub-miniature DIP Switch offers space-saving and sealed, unsealedconstruction. The sealed construction equivalent to IEC 60529 prevents fluxpenetration and provides high contact reliability even in dusty locations andlocations where water is used. Smooth, sure switching action enables comfortableoperation. Designed to standards of DIL-IC top actuated types are autoinsert-able. The gold-plated twin contacts and a slide-type, self-cleaningmechanism ensure high reliability.IP64 Protection rating30mA at 30VDC Switching capacity10µA at 3.5VDC Minimum permissible load100MR Maximum contact resistance10MR at 250VDC Minimum insulation resistance500VAC Dielectric strength for 1 minute between terminals30 to 500gf (0.3 to 4.9N) Operating force-20 to 70°C Ambient operating temperature5000 Operations minimum mechanical service life2000 Operations minimum electrical service lifeApplicationsIndustrial
