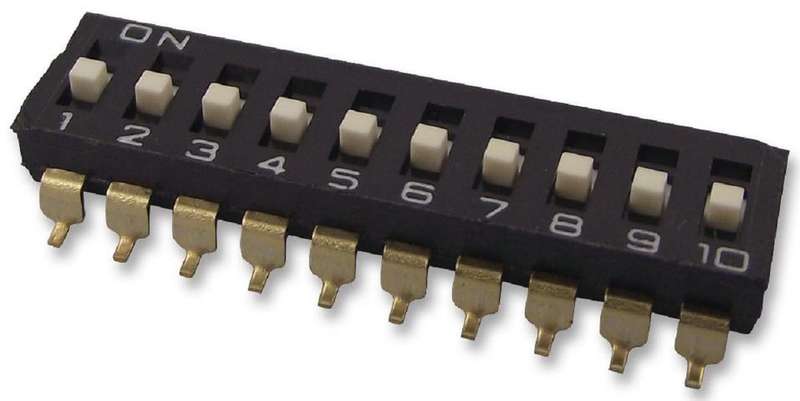

Omron (A6S0104H) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 10 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 10CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Surface MountProduct Range: -Switch Type: DIP UnsealedContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct OverviewThe A6S0104H is a 10-pole surface-mount DIP Switch with raised actuator andincreased solder heat resistance. Designed to enable replacement of previous(A6S) model, featuring the same dimensions and improved solder heat resistance(peak solder temperature: 260°C). The gold-plated twin contacts and aslide-type, self-cleaning mechanism ensure high reliability.25mA at 24VDC Switching capacity10µA at 3.5VDC Minimum permissible load200mR Maximum contact resistance100MR at 250VDC Minimum insulation resistance500VAC Dielectric strength for 1 minute between terminals30 to 1000gf (0.3 to 9.8N) Operating force-20 to 70°C Ambient operating temperature1000 Operations minimum mechanical service life1000 Operations minimum electrical service lifeApplicationsIndustrial
