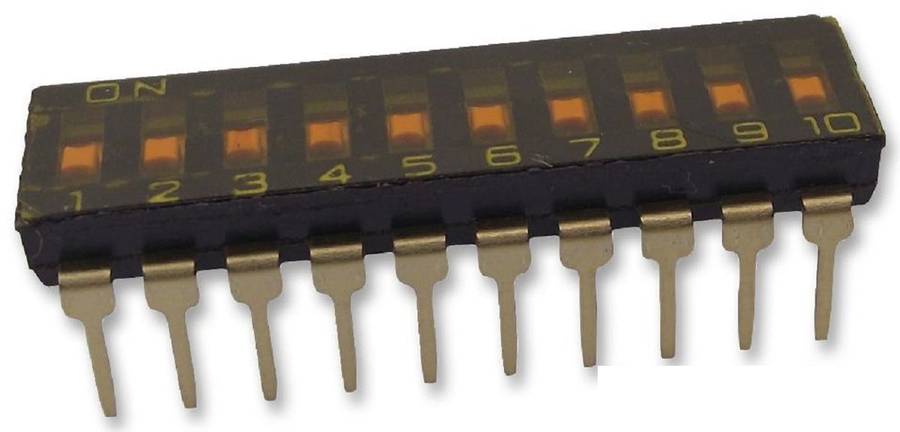

Omron (A6T0102) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 10 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 10CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Through HoleSwitch Type: DIP SealedContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: A6TProduct OverviewThe A6T series slide type DIP Switch with through-hole terminals in a wideassortment of pole configurations. The gold-plated twin contacts and aslide-type, self-cleaning mechanism ensure high reliability. Available inwashable with seal tape models. The wide product line extends from models with 1to 10 poles to meet a wide range of needs.10µA at 3.5VDC Minimum permissible load200mR Maximum contact resistance100MR at 250VDC Minimum insulation resistance500VAC Dielectric strength for 1 minute between terminals30 to 1000gf (0.3 to 9.8N) Operating force-20 to 70°C Ambient operating temperature1000 Operations minimum mechanical service life1000 Operations minimum electrical service lifeApplicationsIndustrial
