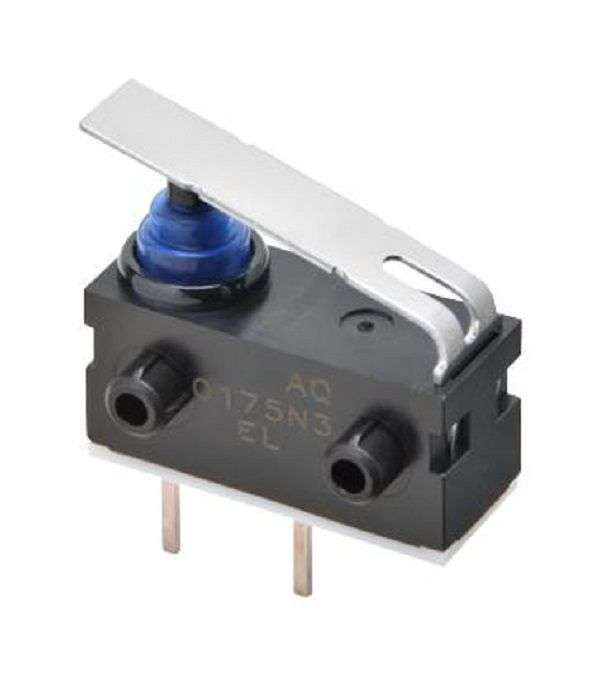

Omron (D2AW-EL062D R) Microswitch, Ultra Subminiature, Leaf Lever

Product Information:Microswitch Type: Ultra SubminiatureMicroswitch Actuator: Leaf LeverContact Configuration: SPST-NCSwitch Terminals: SolderContact Current Max: 100mAContact Voltage DC Nom: 12VProduct Range: D2AWContact Voltage AC Nom: -Operating Force Max: 2NProduct Overview:The new Omron D2AW long-stroke sealed switches feature a unique twin contactdesign, giving higher reliability. The contacts have a sliding action, which notonly helps remove dust and other contamination but is also exceptionally quiet.This makes the D2AW highly suitable for consumer electronics and high-gradeautomotive applications. Sized just 13.3mm x 7.0mm x 5.3mm, the D2AW has a longstroke with 1.4mm of over travel. The D2AW is very robust, and is able tosupport up to 20 operations per minute and has an insulation resistance of100Mohms. It has a rated life of 200,000 operations. It is sealed to IEC IP67.It can switch currents of up to 100mA. The switch is available as Normally Openor Normally Closed, with a pin plunger, leaf lever, long lever, roller lever orlong roller lever actuators. All Omron lever switches can be customised in termsof lever, terminal and cover according to the customer's specific applicationand requirements.Small size and long strokeSliding contact structure enables smooth and quiet operationDouble the reliability with the help of twin contactsSPST-NC or SPST-NO contact configurationStraight PCB or solder terminalsMounting structure: without postslong postM3-screw mounting modelshort postAvailable in various actuator styleContact resistance is 100mohm maximumMinimum insulation resistance is 100Mohm at 100VDCIEC IP67 ratingApplications:Consumer Electronics
