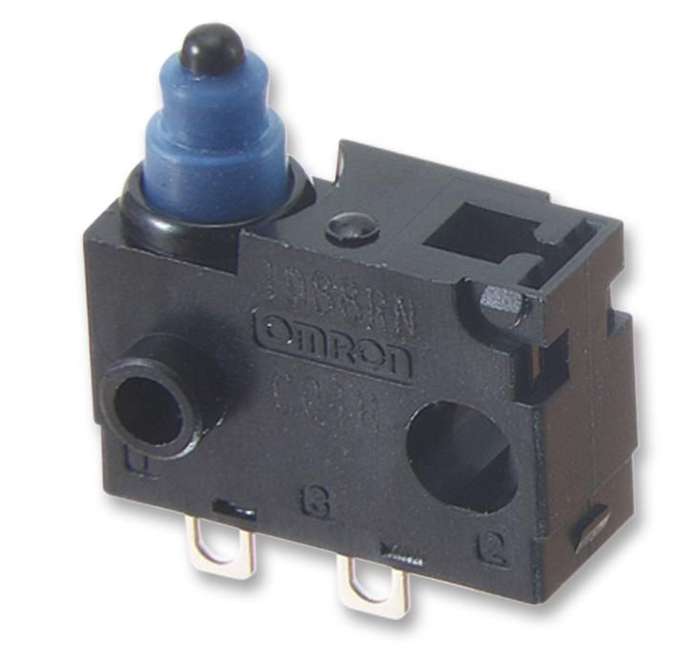

Omron (D2QW-C003H) Microswitch, Subminiature, Pin Plunger

Omron (D2QW-C003H) Microswitch, Subminiature, Pin Plunger

1037 available / new
R305.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2113271
Bob Shop ID
645131484
Product Information:Microswitch Type: SubminiatureMicroswitch Actuator: Pin PlungerContact Configuration: SPST-NOSwitch Terminals: SolderContact Current Max: 100mAContact Voltage DC Nom: 14VDCProduct Range: -Contact Voltage AC Nom: -Operating Force Max: 1.5NProduct Overview:The D2QW-C003H is a SPST-NO sealed subminiature Basic Switch with pin plungeractuator and solder terminals. The sealed long stroke slide-contact switch forreliable ON/OFF action even in severe environmental conditions. High temperatureresistance up to 85°C and drip-proof structure for wide range of applicationsenvironmental resistance required.Gold-plated highly reliable contactM3-screw mounting coverExtra-long stroke even without levers (2.7mm overtravel)Clip contacts with highly reliable slide contact mechanism100MR at 500VDC Minimum insulation resistanceIP67 Protection ratingApplications:Industrial
