Omron (G3VM-21GR1) MOSFET Relay, 20 VAC, 300 mA, 1.5 ohm, SPST-NO

Omron (G3VM-21GR1) MOSFET Relay, 20 VAC, 300 mA, 1.5 ohm, SPST-NO

New 16 available
R255.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2065732
Bob Shop ID
645124821

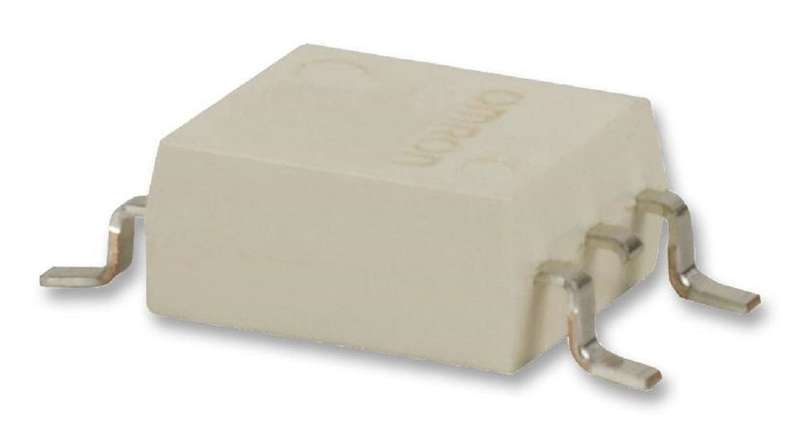

Product Information:Contact Configuration: SPST-NOContact Form: SPST-NO (1 Form A)Load Current: 300mALoad Type: AC / DCLoad Voltage Max: 20VMOSFET Relay Package Style: SOP-4On State Resistance Max: 1.5ohmRelay Mounting: Surface MountIsolation Voltage: 1.5kVForward Current If: 30mARelay Terminals: Gull WingI/O Capacitance Typ: 0.8pFOff State Leakage Current Max: 1000pAProduct Range: G3VMProduct Overview:The G3VM-21GR1 is a MOSFET Relay with low output capacitance andsurface-mounting terminals. It has ON resistance of 1R typical suppresses outputsignal attenuation and leakage current of 1nA maximum when output relay is open.-20 to 85°C Operating temperature rangeApplications:Industrial, Test & Measurement, Communications & Networking
Add to cart
