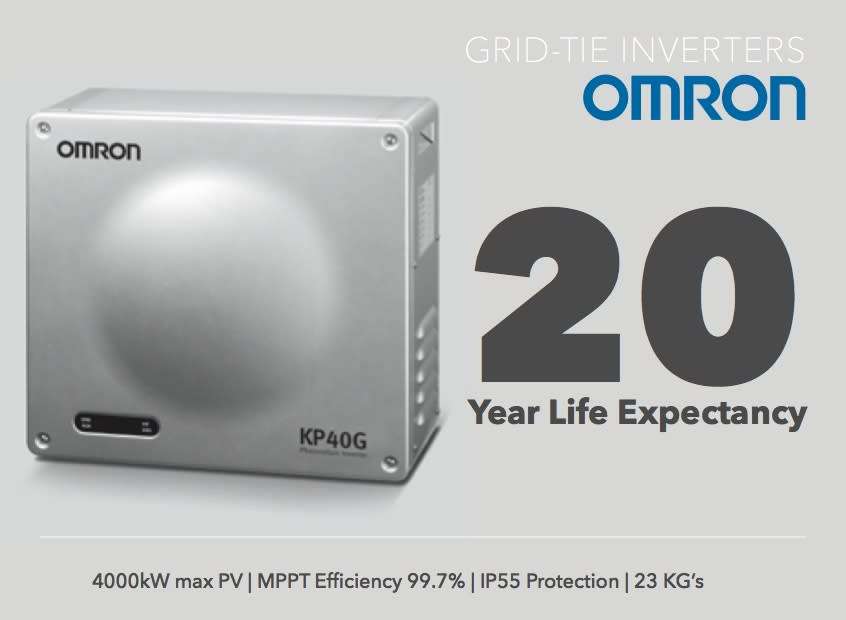

Model KP40G-OD-1/ KP40G-OD-2
Rated output power 4kW (at 25 degree C)
Peak output power 4kW (at 25 degree C)
MPP voltage range DC225V to 600V
Max. operation voltage DC600V
Rated input voltage DC380V
Max. Input current 19A max. and 10A max. per pair
Euro efficiency 94.00%
Max. efficiency 95.00%

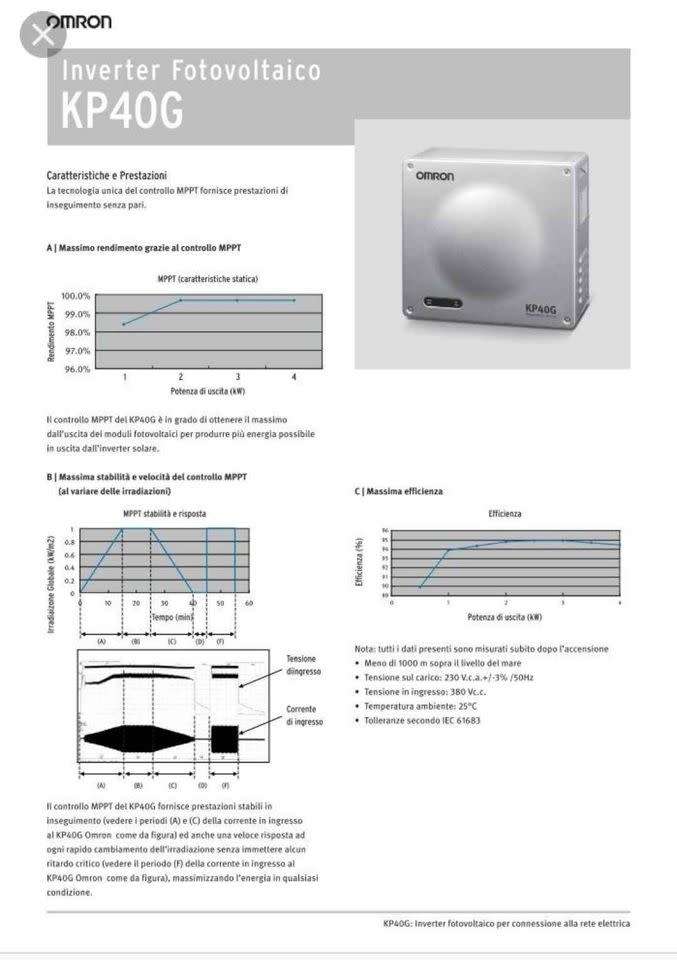

MPPT efficiency 99.7% max.
Ambient temperature range -20 to 55_
Relative humidity 100%
Cooling Forced ventilation
ENS (applicable to Germany market) Yes (with KP40G-OD-2)
Protection degree IP55
Size HxWxD in mm 400x430x200 mm
Weight Approx. 23kg
Standby consumption power < 2W (at 230VAC/50Hz), from utility
Night time consumption power < 0.15W (at 230VAC/50Hz), from utility
DC socket type Multi-Contact
