ON-ON DPDT Mini Toggle switch - Custom Short Handle

2 way (ON-ON) Double Pull Double Throw mini toggle switch

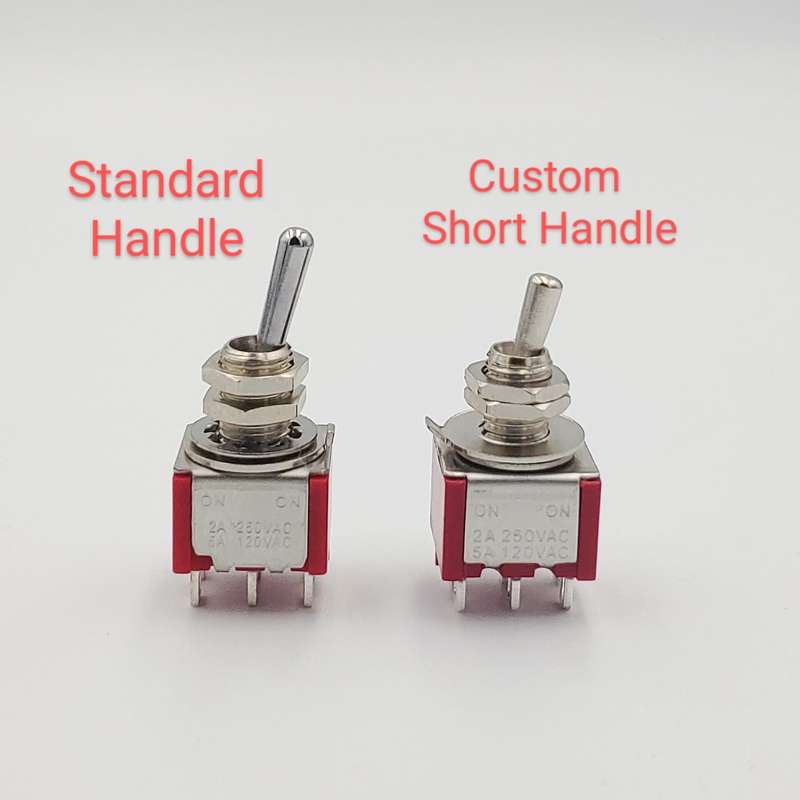

Toggle switches are often used for switching power on and off to circuits as well as many other functions like switches on guitar amps. effects pedals and guitar pickguards. This one is a mini, red and panel mountable. It also has a custom short handle so when used on guitars or guitar pedals the handle only sticks out a little bit as to not get in the way of your other knobs and switches. It is perfect for coil splitting mods or "Gilmour" mods on guitars, this was the reason we had the short handle made specially for us at Valley Sound. We also have the SPDT (3 pins) variation of the short lever mini toggle available. The

Features:

• Type: DPDT (ON-ON)
• Pins Number : 6
• Max. Voltage: 2A 250VAC
• Max. Current: 5A 125VAC
• Thread Diameter (Approx): 6mm
• Body Size: 13 x 8 x 10mm / 0.5" x0.31" x 0.4" (LxWxH)
• Bushing and lever material: Nickel plated brass

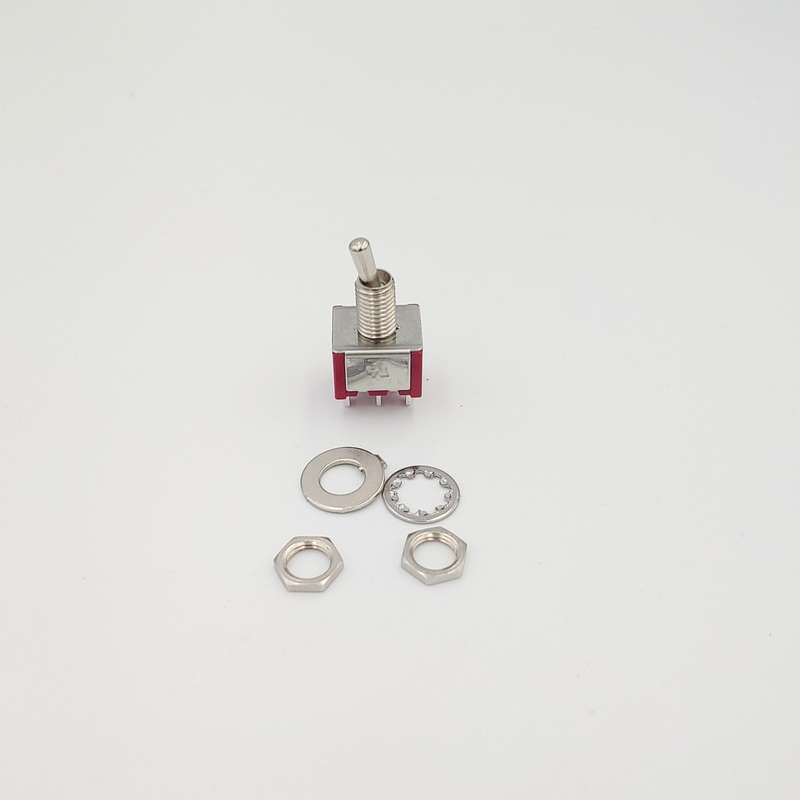

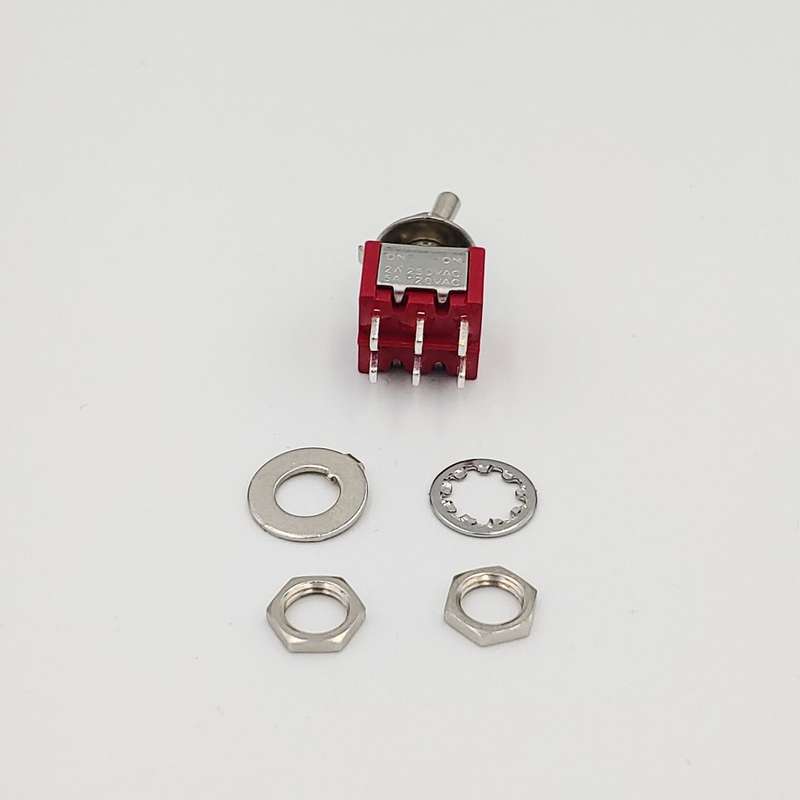

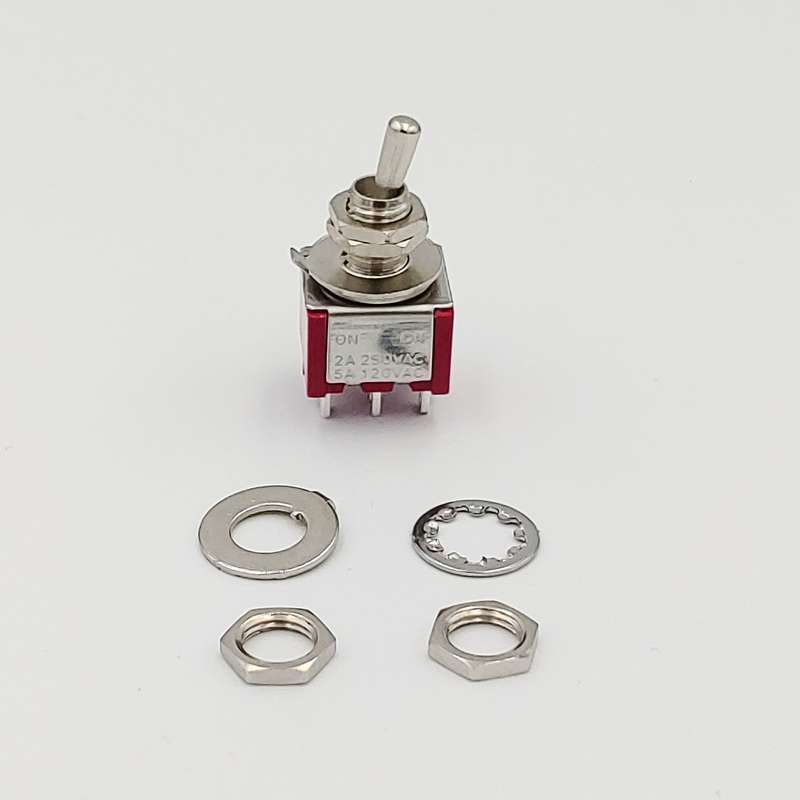

• 2 nuts (one can be used to adjust height)
• 1 washer
• 1 starlock washer to stop switch from spinning
