ONESTO 1600W 24V Off-Grid Inverter:
Compact and quiet, with less than 50dB of noise
Selectable voltage settings for wide or narrow voltage windows
Input protections from under/over voltage and frequency
10A or 20A 3-stage charging that is independent, and able to charge while the inverter is turned off.
Battery protection with low/high DC cut-off voltage settings
Output protections from overload and short-circuit
20ms switching between line and battery mode
Auto-restart function
LCD indicators and buzzer alarms that can be muted
Model Name: IP1600
Capacity(VA/W): 2000/1600
Input: Voltage Range:
Narrow Range Mode: 170-280Vac
Wide Range Mode: 90-280VAC
Frequency Range: 50/60Hz(Auto Sensing)
Output:
AC Voltage Regulation (Batt Mode): 230Vac +- 10%
Frequency Range (Batt Mode): 50/60Hz +- 1Hz
Transfer Time: 20ms Typical
Waveform: Modified Sine Wave
Battery:
Battery Voltage: 24V
Charging Current: 10A/20A
Protection: Low Battery Alarm, Low Battery Shutdown, Over Charge Protection, Overload Protection, Over Temperature Protection, Short Circut Protection
Alarm:
Low Battery: Beep Every Second
Overload: Beep Every 0,5 Seconds
Fault: Contiunous Beep
Operating Environment:
Humidity: 0-90% RH @ 0-50 c (non-condensing)
Physical
Dimension (DxWxH) mm: 310x239x93
Others
Built-in USB Charger (5V x 1A max): Optional
AC Input Voltage Range Selection: Yes
AC Charging Current Selection: Yes
Low DC Cut-off Voltage Setting: Yes
AC Output Rating Voltage Selection: Yes
Buzzer Mute Control: Yes
Battery Voltage & Load Percentage Display: Yes
100Ah Gel Battery:
Product Code: 6-GSP(G)-100AH
Product Name: Gel Battery - 12VDC / 100Ah - Solar Pal
Voltage: 12V
Number of Cells: 6 Cells
Capacity: 100Ah @10hr-Rate to 1.80V per cell @25
Weight: 30.8Kg
Internal Resistance: Approx. 6m
-Terminal: F1 / F2
Max. Discharge Current: 1500A (5s)
Short Circuit Current: 5000A
Max. Charging Current: 25A
Reference Capacity: C10: 100.0Ah,
C3: 74.6Ah,
C1: 56.8Ah
Design Life: 10~15 Years
Float Charging Voltage: 13.6V~13.8V @25 , Temperature Compensation: -20mV/ /Cell
-Cycle Use Voltage: 14.4V~14.9V @25 , Temperature Compensation: -30mV/ /Cell
- Operating Temperature Range: Discharge: -20 ~60,
Charge: 0 ~50,
Storage: -20 ~60
Normal Operating Temperature Range: 25 5
Self Discharge: Less than 3% at 25 per month
Container Material: ABS UL94-HB, UL94-V0 Optional
100Ah Gel Battery Cabinet:
- One Level
- 4 Wheels
- Cold Rolled Steel
- 428 x 433 x 350
- Black

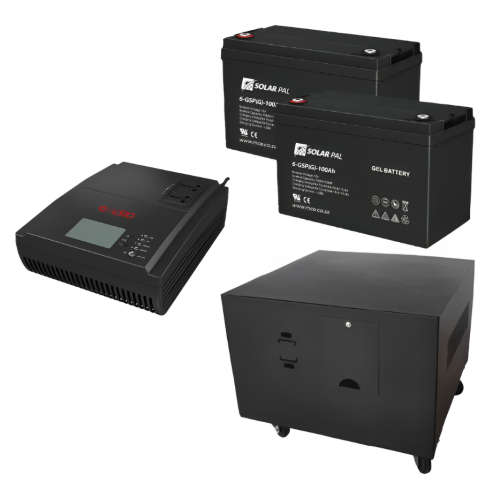

What's in the box
1 x 1600W Off Grid Inverter
2 x 100Ah Gel Battery
1 x Battery Cabinet
