Scaling the Heights of A/V Perfection with Multi-Format Capability and Untainted Audio Signals

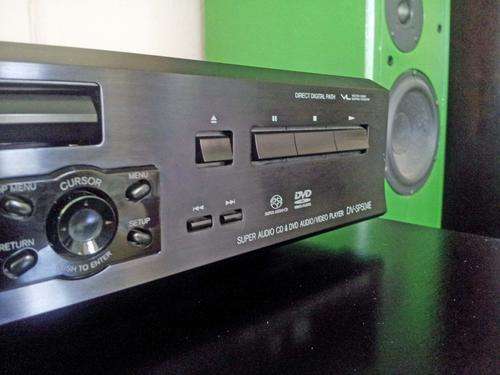

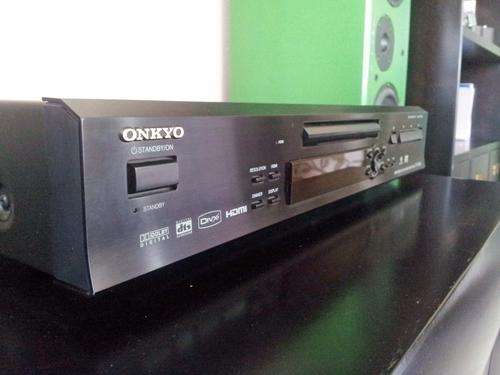

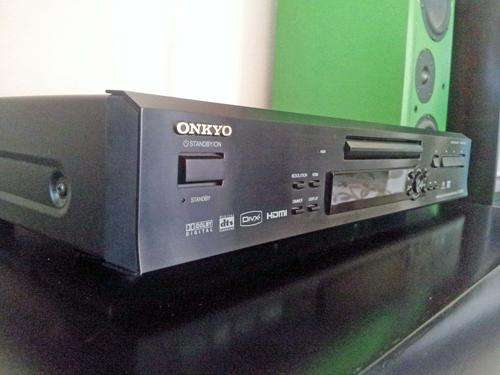

The DV-SP504 universal DVD/CD player stands out as a versatile player that is well positioned for the emergence of high-definition entertainment. It's the inclusion of the High-Definition Multimedia Interface (HDMI) that makes the DV-SP504 a superb choice for delivering high-definition movies in 720p or 1080i formats, high-resolution music, and more recent formats like HD JPEG (megapixel images with enhanced resolution). On the audio front, the inclusion of three Cirrus Logic CS4398 digital-to-analog converters takes audio performance into a totally different league. Onkyo's own technologies come into play with Vector Linear Shaping Circuitry (VLSC) and Direct Digital Path to protect audio signals from the most destructive elements to quality movies and music - pulse noise and noise emanating from a player's internal components.
- HDMI
- HDMI (High-Definition Multimedia Interface) uses a single digital connection to eliminating wire clutter while supporting enhanced or high definition video and multichannel surround sound audio.
- Progressive Scan
- Near high-definition quality with a flicker-free image.
- Dolby Digital/DTS
- When connected to a compatible A/V receiver listen to 5.1 channels of spacious Dolby Digital/DTS surround sound.
- Multi-Format Playback Capability
- Compatible with DVD-Video, Video CD, CD, MP3, WMA JPEG, DVD-Audio and Super Audio CD, CD-R/RW, DVD-R/RW, and DVD+R/RW.
- Programmed Memory Playback
- Playback a disc from any point even if it has been removed from the player.
- Slow Motion Playback
- Slow the image down by 1/2, 1/4, 1/6, or 1/8x normal speed.
- Frame By Frame
- View individual frames of a movie one frame at a time.
- View a Slideshow
- Images are displayed sequentially for 5 seconds apiece.
- A-B Repeat
- Use this function to play a specified section again and again.
Product Specification:
General Product Type DVD player
Audio SystemDigital Audio Format Dolby Digital output, DTS digital output
Sound Output Mode Surround Sound
Response Bandwidth 4 - 44000 Hz
Dynamic Range 96 dB
Signal-To-Noise Ratio 106 dB
Total Harmonic Distortion 0.03%
DVDMedia Type CD-R, CD-RW, SACD, DVD-Audio, DVD-R, DVD+RW, DVD-RW, DVD+R, DVD, CD, Video CD
Media Format NTSC
Media Load Type Tray
Supported Digital Audio Standards WMA, MP3
Upscaling Yes ( up to 1080i )
Video D/A Converter 14bit / 108MHz
Audio D/A Converter 24bit / 192kHz
Built-in Audio Decoders Dolby Pro Logic, Dolby Digital, DTS decoder
DVD FeaturesPicture Zoom Yes
Additional Features Progressive scanning, JPEG photo playback
Remote ControlType Remote control
Technology Infrared

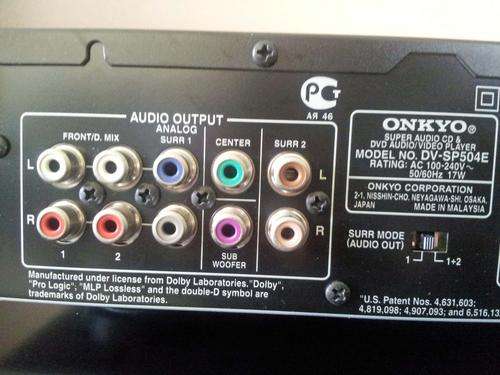

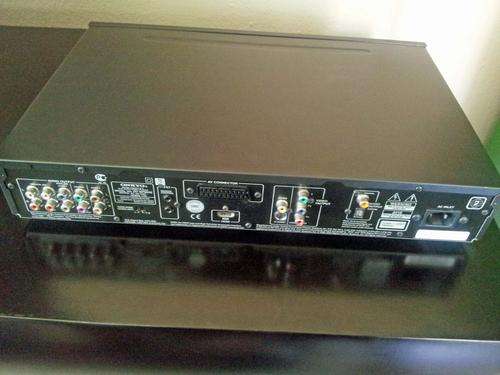

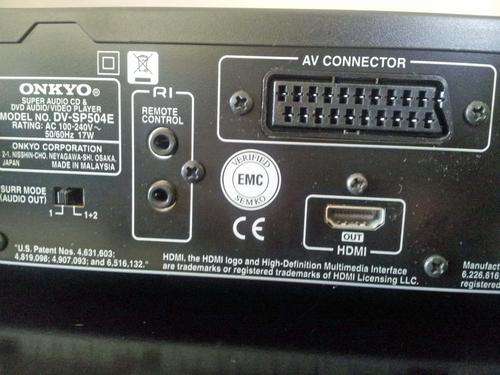

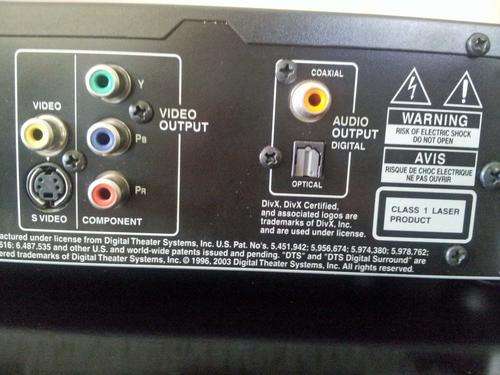

ConnectionsConnector Type 1 x 7.1 channel audio line-out ( RCA phono x 8 ) - rear ¦ 1 x HDMI ( 19 pin HDMI Type A ) - rear ¦ 2 x remote control - rear ¦ 1 x SPDIF output ( RCA phono ) - rear ¦ 1 x component video output ( RCA phono x 3 ) - rear ¦ 1 x composite video output ( RCA phono ) - rear ¦ 1 x SPDIF output ( TOSLINK ) - rear ¦ 1 x S-Video output ( RCA phono ) - rear
PowerPower Consumption Operational 17 Watt
Power Device Power supply - internal
Power Consumption Stand by / Sleep 0.4 Watt
COMES WITH AN OPERATION MANUAL
NO PACKAGING
NO SHIPPING, COLLECTION ONLY. WILL DELIVER IN JHB AND PRETORIA FOR R200 COD.
PAYMENT WITHIN 48 HRS
THE DVD PLAYER IS PERFECT WORKING CONDITION EXCEPT THAT IT MIGHT NEED A LENS CLEANING KITS AS IT HAS BEEN SITTING UNUSED FOR MONTHS NOW
