ONKYO TXNR656

Highlights:

Power and Processing:

• 7-channel amplifier
• 100 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos® processing for use with in-ceiling or "height" speakers for more enveloping surround sound
  • supports a 5.1.2 Atmos setup
  • DTS:X for an immersive, 3-dimensional soundstage (available via Summer 2016 firmware update)
• automatically upscales 1080p video signals to 4K resolution when connected to a compatible 4K TV
• Advanced AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)
  • new AccuReflex technology aligns phase of upfiring "height" speakers with the sound coming directly from your other speakers

Digital and Streaming Music Options:

• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services.
• built-in Bluetooth for wireless music streaming from a compatible phone, tablet, or computer
• Apple AirPlay for streaming music from an iPhone®, iPad®, iPod touch®, or computer running iTunes
• plays high-resolution digital music files via USB storage device or a networked computer (up to 24-bit/192kHz resolution)
• plays DSD files (up to 5.6 MHz) from network and USB storage devices

Audio Performance Features:

• high-current amplifier design
• 32-bit/384kHz Asahi Kasei AK4458 digital-to-analog converter for clear sound from digital sources
• Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
• bi-amp capability with compatible front speakers by reassigning surround back channels

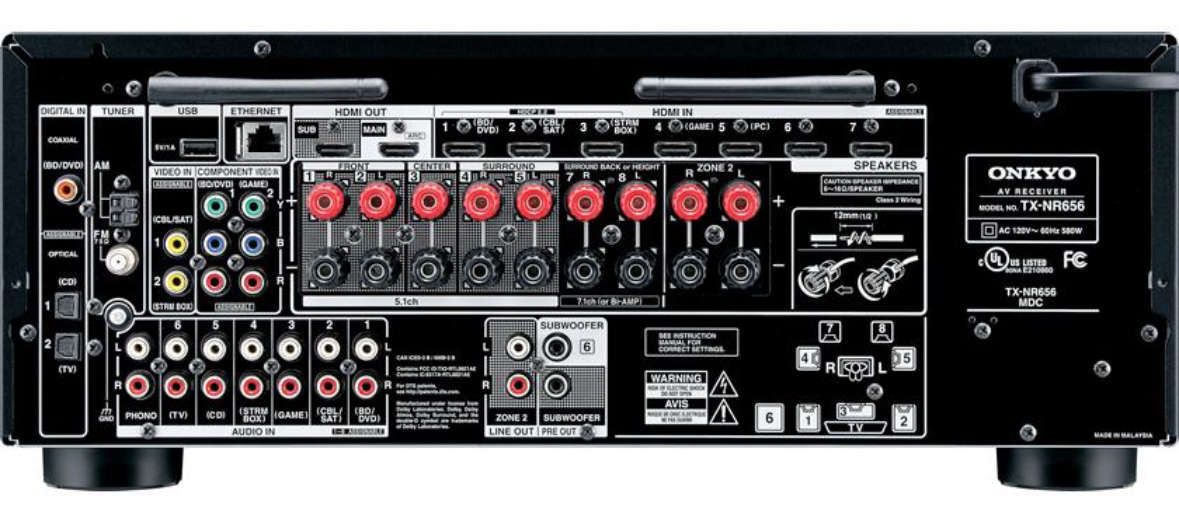

Connections:

• HDMI 2.0a audio/video switching: 8 in, 2 out (includes front-panel input)
  • HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (HDMI inputs 1, 2, 3, and monitor output only)
  • HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
• 2 component video inputs
• 2 composite video inputs
• digital audio inputs: 2 optical and 1 coaxial
• 6 analog stereo audio inputs
• phono input for direct connection of a turntable
• preamp outputs for 2 powered subwoofers
• rear-panel USB port for audio playback from USB storage devices
• Ethernet port for network connection
• outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Zone 2 L/R)
• receiver can power a maximum of seven channels at once
