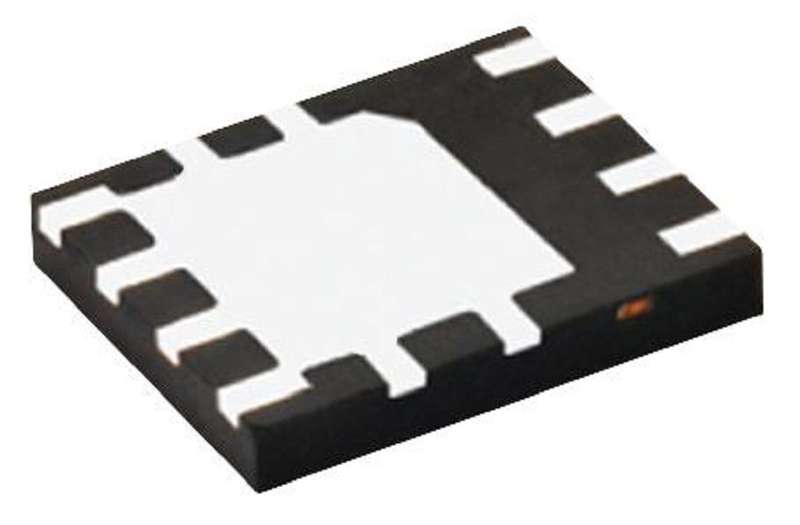

Onsemi (FDMS86500L) Power MOSFET, N Channel, 60 V, 80 A, 0.0021 ohm

Power MOSFET, N Channel, 60 V, 80 A, 0.0021 ohm, Power 56, Surface MountProduct OverviewThe FDMS86500L is a 60V N-channel PowerTrench® MOSFET has been speciallytailored to minimize the on-state resistance and to maintain low gate charge forsuperior switching performance. The latest medium voltage power MOSFET isoptimized power switches combining small gate charge (QG), small reverserecovery charge (Qrr) and soft reverse recovery body diode, which contributesfast switching for synchronous rectification in AC/DC power supplies. It employsshielded-gate structure that provides charge balance. By utilizing this advancedtechnology, the FOM (figure of merit (QGxRDS(ON))) of these devices is 66% lowerthan that of previous generation. Soft body diode performance of newPowerTrench® MOSFET is able to eliminate snubber circuit or replace highervoltage rating - MOSFET need circuit because it can minimize the undesirablevoltage spikes in synchronous rectification. This product is general usage andsuitable for many different applications.100% UIL testedAdvance package and silicon combination for low RDS (ON) and high efficiencyProduct InformationChannel Type: N ChannelTransistor Polarity: N ChannelContinuous Drain Current Id: 80ADrain Source Voltage Vds: 60VDrain Source On State Resistance: 0.0021ohmOn Resistance Rds(on): 0.0021ohmRds(on) Test Voltage: 10VTransistor Mounting: Surface MountGate Source Threshold Voltage Max: 1.8VPower Dissipation Pd: 104WTransistor Case Style: Power 56Power Dissipation: 104WNo. of Pins: 8PinsOperating Temperature Max: 150°CMSL: MSL 1 - Unlimited
