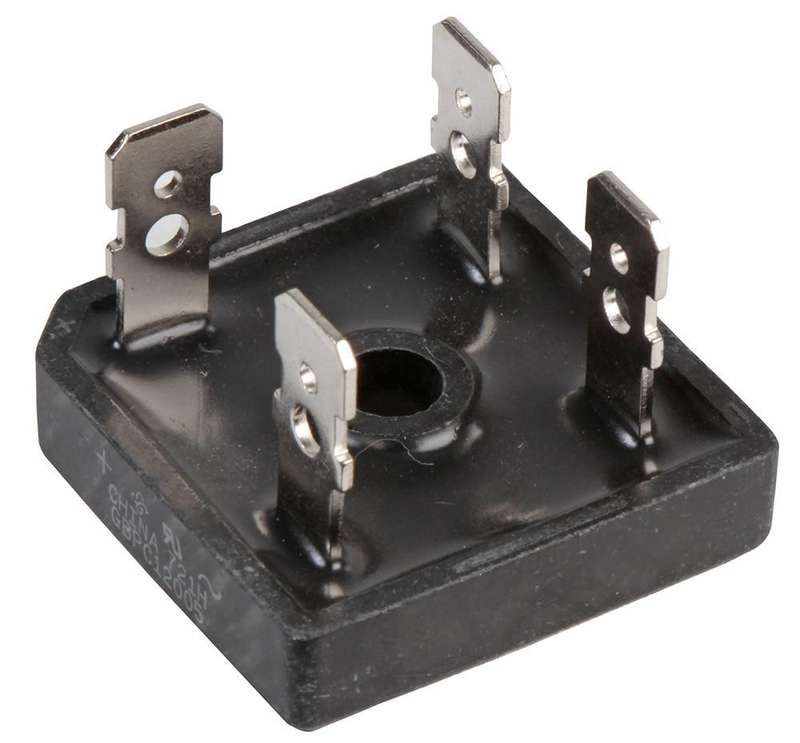

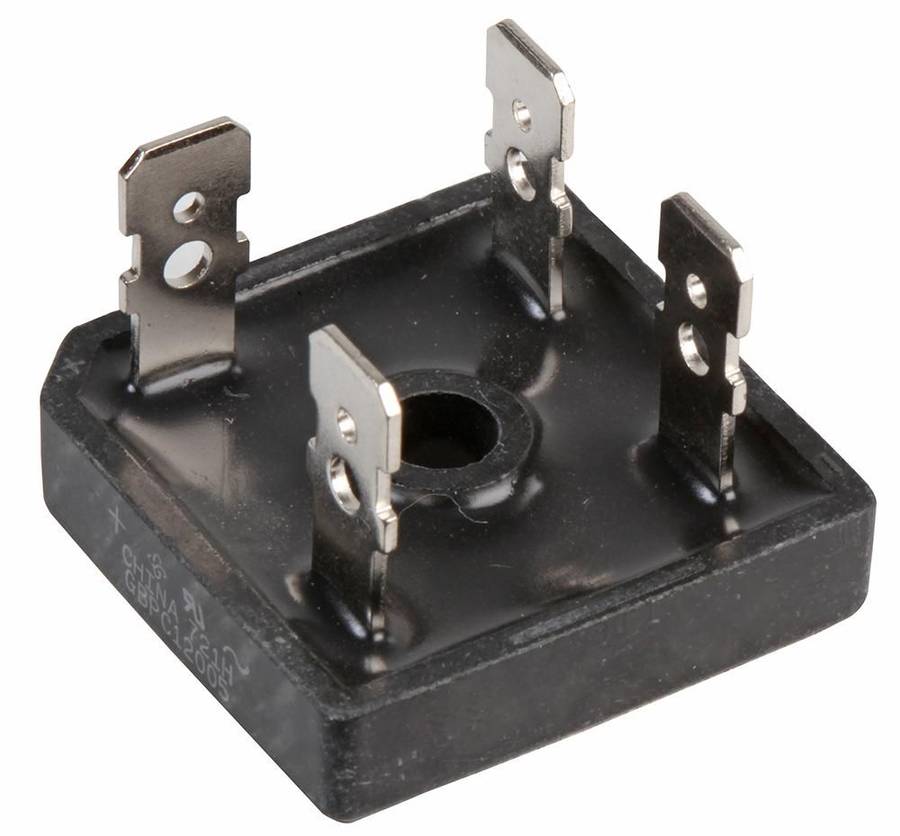

Onsemi (GBPC2502) Bridge Rectifier, Single Phase, 200 V, 25 A, Module

Bridge Rectifier, Single Phase, 200 V, 25 A, Module, 4 Pins, 1.1 VProduct OverviewThe GBPC2502 is a 25A single-phase glass passivated Bridge Rectifier withintegrally moulded heatsink. The bridge rectifier feature solderable terminalsas per MIL-STD-202, method 208 standard. This bridge rectifier is general usageand suitable for many different applications.Isolated voltage from case to lead over 2500V140V Maximum RMS bridge input voltage83.3W Power dissipation1.5°C/W Junction to case maximum thermal resistanceUL CertifiedApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 200VAverage Forward Current: 25ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Surface MountForward Surge Current: 300AOperating Temperature Max: 150°CProduct Range: GBPC2
