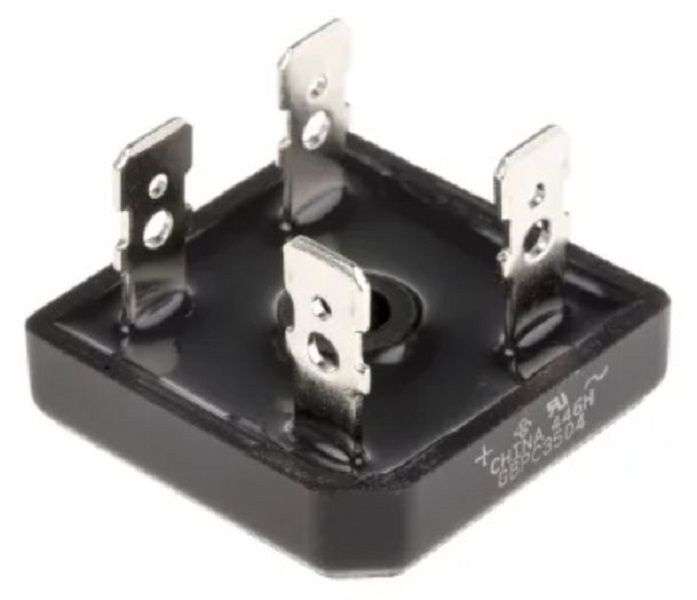

Onsemi (GBPC3504) Bridge Rectifier, Single Phase, 400 V, 35 A

Bridge Rectifier, Single Phase, 400 V, 35 A, Module, 4 Pins, 1.1 VProduct OverviewThe GBPC3504 is a 35A single-phase glass passivated Bridge Rectifier withintegrally moulded heatsink. The bridge rectifier feature solderable terminalsas per MIL-STD-202, method 208 standard. This bridge rectifier is general usageand suitable for many different applications.Isolated voltage from case to lead over 2500V280V Maximum RMS bridge input voltage83.3W Power dissipation1.5°C/W Junction to case maximum thermal resistanceUL CertifiedApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 400VAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Panel MountForward Surge Current: 400AOperating Temperature Max: 150°CProduct Range: GBPC3
