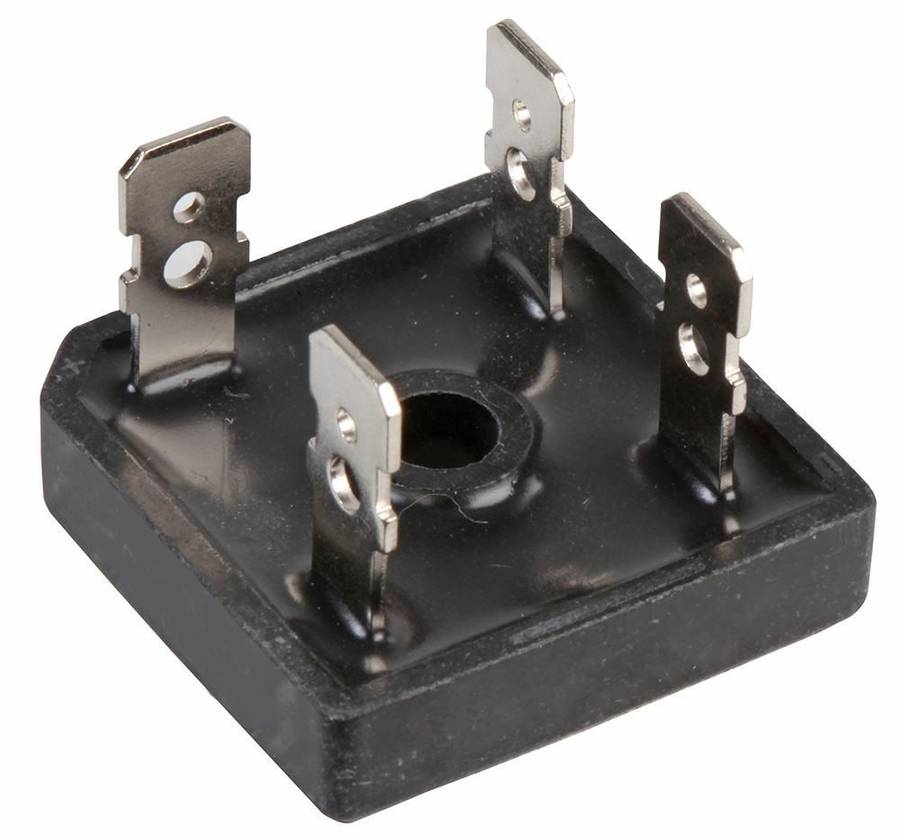

Onsemi (GBPC3506) Bridge Rectifier, Single Phase, 600 V, 35 A, Module

Bridge Rectifier, Single Phase, 600 V, 35 A, Module, 4 Pins, 1.1 VProduct OverviewThe GBPC3506 is a 35A single-phase glass passivated Bridge Rectifier withintegrally moulded heatsink. The bridge rectifier feature solderable terminalsas per MIL-STD-202, method 208 standard. This bridge rectifier is general usageand suitable for many different applications.Isolated voltage from case to lead over 2500V420V Maximum RMS bridge input voltage83.3W Power dissipation1.5°C/W Junction to case maximum thermal resistanceUL CertifiedApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 600VAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Surface MountForward Surge Current: 400AOperating Temperature Max: 150°CProduct Range: GBPC3
