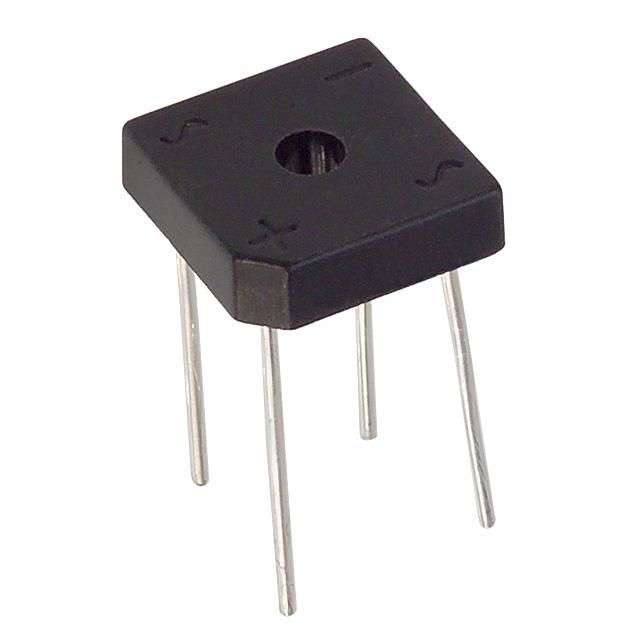

Onsemi (GBPC3506W) Bridge Rectifier, Single Phase, 600 V, 35 A

Bridge Rectifier, Single Phase, 600 V, 35 A, Module, 4 Pins, 1.1 VProduct OverviewThe GBPC3506W is a 4-pin single-phase Bridge Rectifier Diode with integrallymoulded heat-sink provided very low thermal resistance for maximum heatdissipation. It has glass passivated junction with silver finish terminalssolderable per MIL-STD-202, Method 208 for the wire type.300 to 400A Surge overload ratingIsolated voltage from case to lead over 2500V420V Maximum RMS bridge input voltage-55 to 150°C Operating temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 600VAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsOperating Temperature Max: 150°CProduct Range: GBPC
