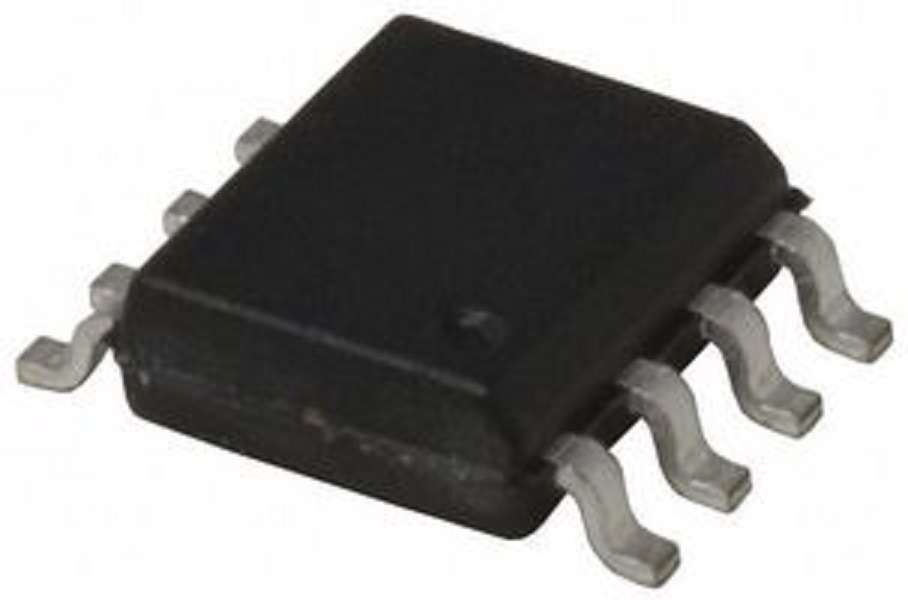

Onsemi (MC12093DG) Modulus Prescaler, 1.4 GHz, 2.7V-5.5V supply

Modulus Prescaler, 1.4 GHz, 2.7V-5.5V supply, 1 Output, SOIC-8Product OverviewThe MC12093DG is a low power modulus Prescaler with stand-by mode for low powerfrequency division of a 1.1GHz high frequency input signal. MOSAIC V technologyis utilized to achieve low power dissipation of 6.75mW at a minimum supplyvoltage of 2.7V. On-chip output termination provides output current to drive a2pF (typical) high impedance load. If additional drive is required for theprescaler output, an external resistor can be added parallel from the OUT pin toGND to increase the output power. Care must be taken not to exceed the maximumallowable current through the output. Stand-by mode is featured to reducecurrent drain to 50A typical when the standby pin SB is switched LOW disablingthe prescaler.-40 to 85°C Operating temperature rangeApplicationsIndustrialProduct InformationClock IC Type: Modulus PrescalerFrequency: 1.1GHzNo. of Outputs: 1OutputsSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VClock IC Case Style: SOICNo. of Pins: 8PinsOperating Temperature Min: -40°COperating Temperature Max: 85°C
