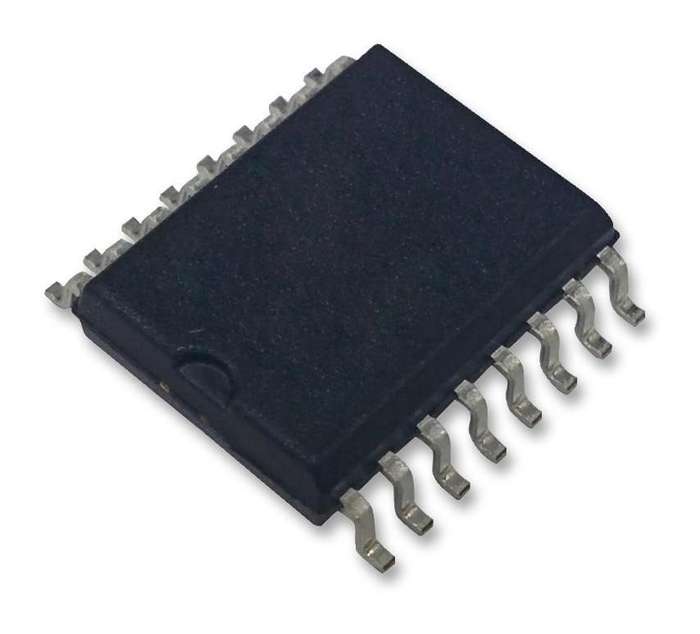

Onsemi (MC74LCX541DTG) Buffer, 74LCX541, 2 V to 3.6 V, TSSOP-20

Product OverviewThe MC74LCX541DTG is a low-voltage CMOS octal Buffer with flow through pin-out.The MC74LCX541 is a high performance non-inverting octal buffer operating from a2.3 to 3.6V supply. This device is similar in function to the MC74LCX244, whileproviding flow through architecture. High impedance TTL compatible inputssignificantly reduce current loading to input drivers while TTL compatibleoutputs offer improved switching noise performance. A VI specification of 5.5Vallows MC74LCX541 inputs to be safely driven from 5V device. The MC74LCX541 issuitable for memory address driving and all TTL level bus oriented transceiverapplications. Current drive capability is 24mA at the outputs. The output enableinputs, when HIGH, disables the output by placing them in a HIGH Z condition.Supports live insertion and withdrawalLVTTL CompatibleLVCMOS CompatibleNear 0 static supply current in all 3 logic states substantially reduces systempower requirementsLatch-up performance exceeds 500mADesigned for 2.3 to 3.6V VCC operation5V Tolerant - Interface capability with 5V TTL logicIOFF specification guarantees high impedance when VCC = 0V24mA Balanced output sink and source capabilityApplicationsIndustrial, Automation & Process Control, Signal ProcessingProduct InformationLogic Family / Base Number: 74LCX541Logic Device Type: Buffer, Non InvertingLogic Case Style: TSSOPNo. of Pins: 20PinsSupply Voltage Min: 2VSupply Voltage Max: 3.6VLogic IC Family: 74LCXLogic IC Base Number: 74541Operating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: -
