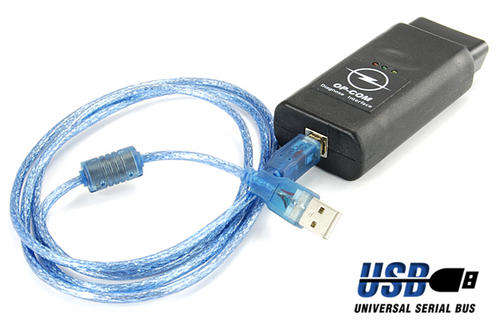

OP-COM OBD2 Diagnostic Tool with Software (Opel, Vauxhall) 2009 version
Perform your own diagnostics with this OBDII car tool designed for Opel and Vauxhall vehicles. This model works on almost all Opel cars dating 1992 onwards, including vehicles with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
OP-COM is a PC based Opel diagnostic interface program, that can read out and clear fault codes, shows you live data, lets you perform output test and supports remote and key programming. It is truly an exhilarating feeling when you actually know what the problem with your car is, rather than guess what the problem might be. Paying a professional mechanic to make any single change for you would cost an arm and a leg. After just a short time of use, this cable will effectively pay for itself in the money you save on gas and maintenance. Plus, driving will be much more fun.
From the fault codes window, you can go directly to the measuring blocks window. The program shows you measuring block information on many control modules. The software application is capable of showing 8 measuring block parameter simultaneously. The sample rate depends mostly on the communication protocol. For example, older systems, like Omega-B X 25 DT Engine (ISO-9141-2) can be slow during communication, while newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast.
With this OP-COM OBDII diagnostic tool you can reset and program the ECM, BCM, IPC. You can also reset and program the Service interval reminder on Astra-G, Zafira, Corsa-C, Meriva, Tigra-B and code SAB6, and SAB8 airbags with the software.
At a Glance...
- Read Fault Codes
- OBDII Compatible
- Increase Fuel Efficiency
- Improve Cars Performance
Manufacturer Specifications
- Primary Function: Opel Vauxhall Diagnostic Interface USB CAN OBD2 OP-COM
- On-Board Diagnostic connectors:
- PIN6-PIN14: HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
- PIN3-PIN11: MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
- PIN1: SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
- PIN3, PIN7, PIN8, PIN12: Serial Link (ISO9141, KW81, KW82, KWP2000) - The included program supports many control units such as:
- Automatic Transmission
- ABS
- Airbag
- Engine Cooling module
- Instrument Cluster
- Electronic Climate Control, And Many others... Note: The above mentioned protocols are merely an example of what the software application includes. The application software features many more control units, that are simply too much to list here- Compatibility: Vehicle must be OBDII compatible
- OBDII Plug: 16-pin (Male)
- USB: 2.0
- Operating Software Compatibility: Windows 98SE, ME, 2000, XP
- Dimensions:
- OBD2: L:105 x W:46 x D:25
- USB Cable: 140cm Long
- Please note: only work with the software provided, and should never be used with other software which has been downloaded from the internet , I cannot offer support if you do not use the software provided. Other software will damage the cable.
Package Contents
- Opel Vauxhall Diagnostic Interface USB CAN OBD2 OP-COM
- USB Cable
- CD with software
Frequently Asked Questions
- How does the connector select the appropriate pin for communication?
Since Opel uses many pin in the On-Board Diagnostic connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication - There are a lot of terms I don't understand, like engine control units (ECUs), brake horsepower (BHP), and flashing. What do they all mean?
Please check Wikipedia for a detailed explanation of these and other terms that are new to you.
