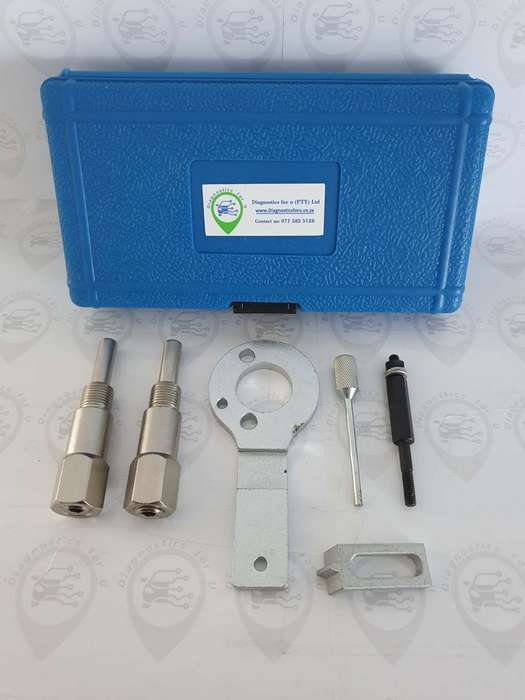

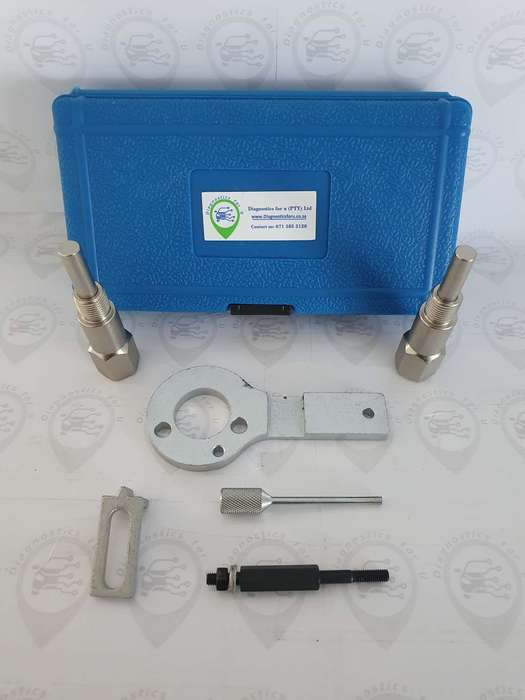

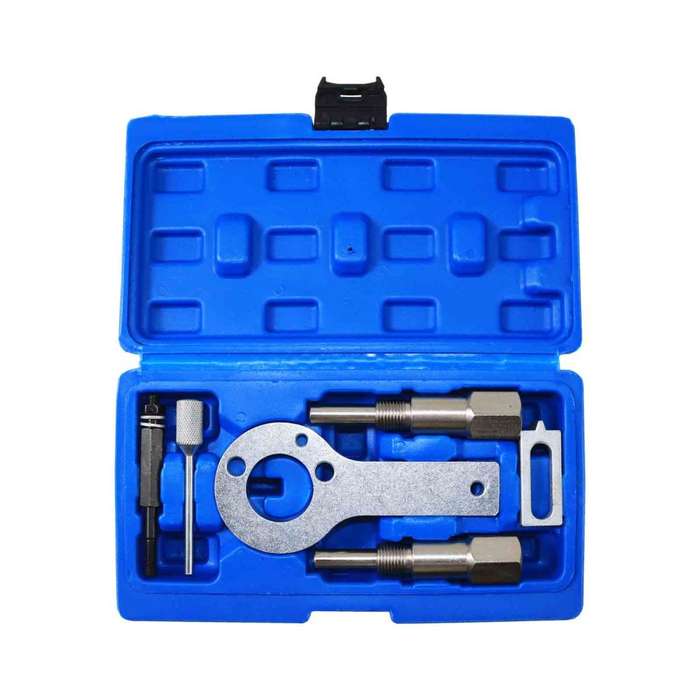

Opel/Alfa Timing Tool Kit 1.9 CDTI/2.0 CDTI (Diesel/6 Pieces)

Main Functions:

• Timing and Locking Tool Kit for Vauxhall / Opel Diesel 1.9CDTI.
• For use on Camshafts and Crankshafts when Servicing and adjusting Timing belts.
• Professional tool for commercial or occasional use.
• Timing setting and locking kit for 1.9 CDTI and 2.0 CDTI Belt Drive cars.
• Suitable for keeping camshaft, crankshaft in a specific position when changing a timing belt or whilst doing other engine repairs.
• When the tool is secured in position the first piston stops at the TDC position.
• Also included is a flywheel locking tool and camshaft locking pins.
• When the plugs are placed laterally to the valve, housings are removed and the pins are inserted into the slots on the camshaft.
• The camshaft will be locked in the timing position.

Applications:

• Diesel Timing Belt Locking Tool Kit
• Flywheel holding tool to remove/install crankshaft pulley/locking/setting
• Suitable for setting and locking Alfa Romeo, fiat 1.9/2.4jtd including 16V&20V
• Professional timing tool kit for Vauxhall 1.9CDTI, Alfa Romeo 1.9 8/16v, 2.4 10/20v jtd belt drives
• For use on Camshafts and Crankshafts when Servicing and adjusting Timing belts

Suitable for the Following Vehicles:

• Astra ; H (04;09)
• Vectra ; C (04;08)
• Signum (04;08)
• Zafira ; B (0509)
• Insignia (0809)

Engine Codes:

• 1.9CDTI Engines ; Z19DT, Z19DTH, Z19DTJ, Z19DTL
• 2.0 CDTI Engines ; A20DT/LBS, A20DT/LBX, A20DT/LBY, A20DT/LCD.
