OPEL OPCOM OBD2 DIAGNOSTIC SCAN TOOLS

Specifications:

It covers most Opel cars from 1996 to present with CAN-BUS based diagnostics, such as Vectra-C, Astra-H, Zafira-B.

Reads and clear fault codes, shows live data, lets you to perform output test.

The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

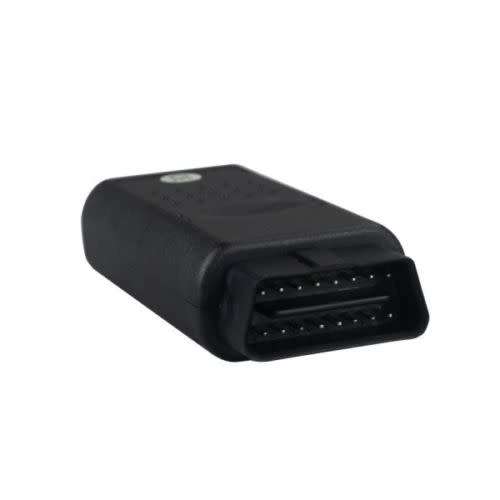

The OP-COM diagnostic tool works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

You can print out, save, or copy the fault codes to any other application.

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

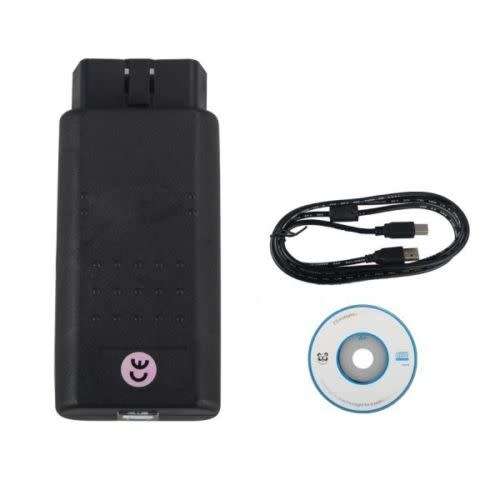

Packaging Includes:

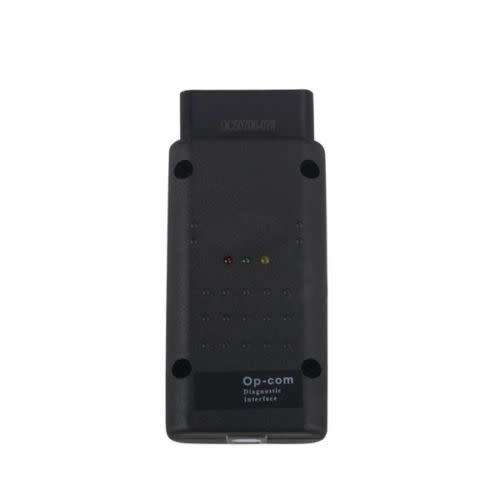

1 x OP COM Interface

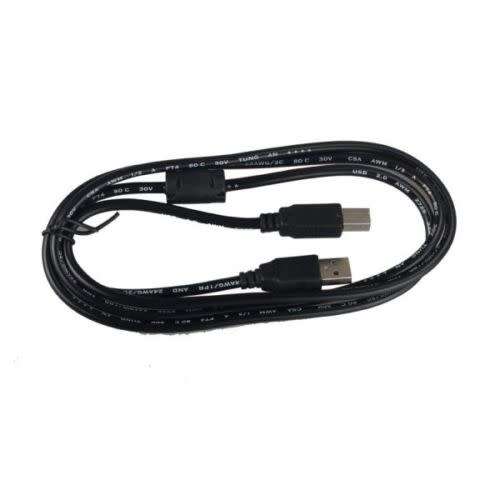

1 x USB Cable

1 x Software and CD Driver

*PLEASE NOTE* The seller takes no responsibility if your car is not supported by the device - certain models don't support the device. No refund will be granted if not supported.
