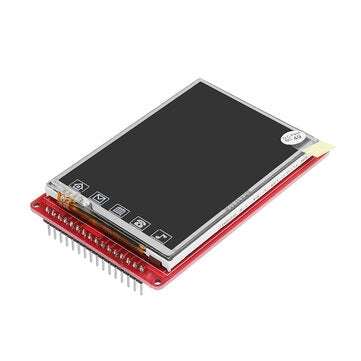

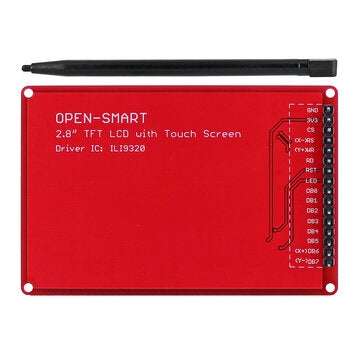

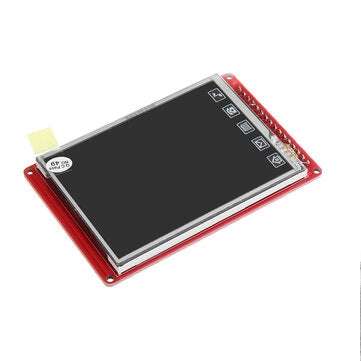

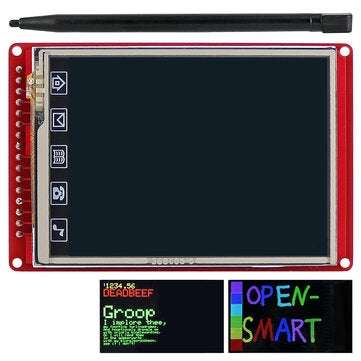

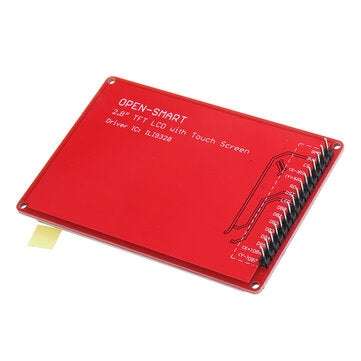

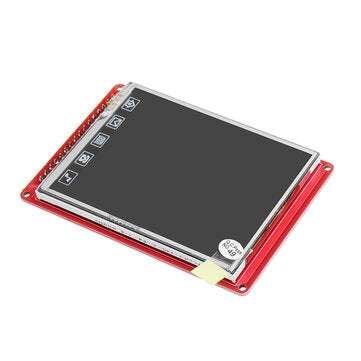

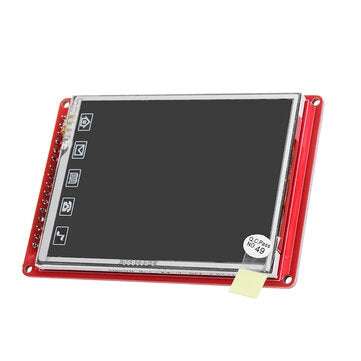

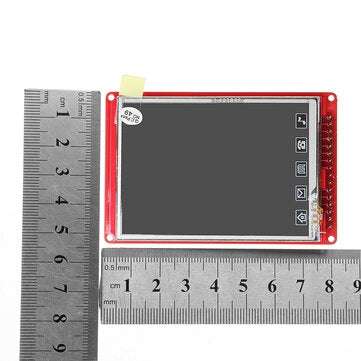

OPEN-SMART 2.8 inch TFT LCD Display Shield Touch Screen Module with Touch Pen for UNO R3/Nano/Mega25

Description: This is a 2.8 inch TFT LCD expansion board. This display has a controller built into it with RAM buffer so that almost all work is done by the TFT. It leads out the pins of the TFT and pins pitch is 2.54mm, so the secondary development is easy. With the GPRS module, you can design your phone. With the NFC reader module, you can create access control systems with the photos show. With voltage and current sensors, you can make an oscilloscope. Feature: - Can use it directly to display characters, graphics and BMP format images with the help of Micro SD card adapter module. - Compatibility: Because the logic level is 3.3V, it is compatible with 3.3V Arduin board, you generally need to add a level conversion circuit if you use a 5V Arduin Board (UNO R3 / Mega2560 / Leonardo). - Touch screen type: resistive touchscreen. - Touch Pen: length is 9cm; - Resolution: 320 * 240, 16-bit (262,000) color - Display size: 2.8 inch; - Operating voltage: 3.3V; - Logic level: 3.3V; - Operating current: the maximum is 60mA - Bus interface: 8080-parallel interface (8 bit) - IO Port Package: PAD is available, and the pin pitch is 2.54mm. - LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight. - Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor

Package includes:

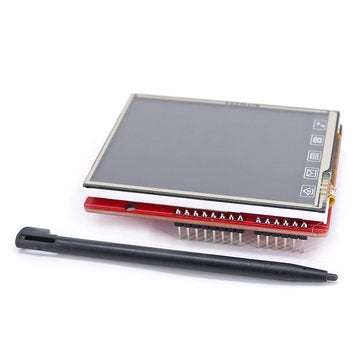

1 x LCD
1 x Pen
