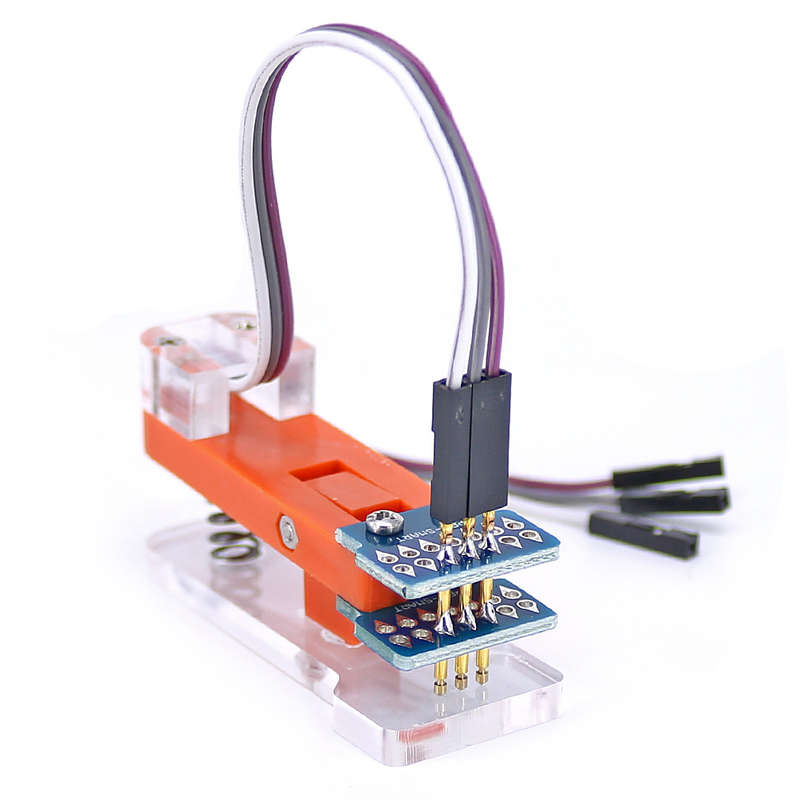

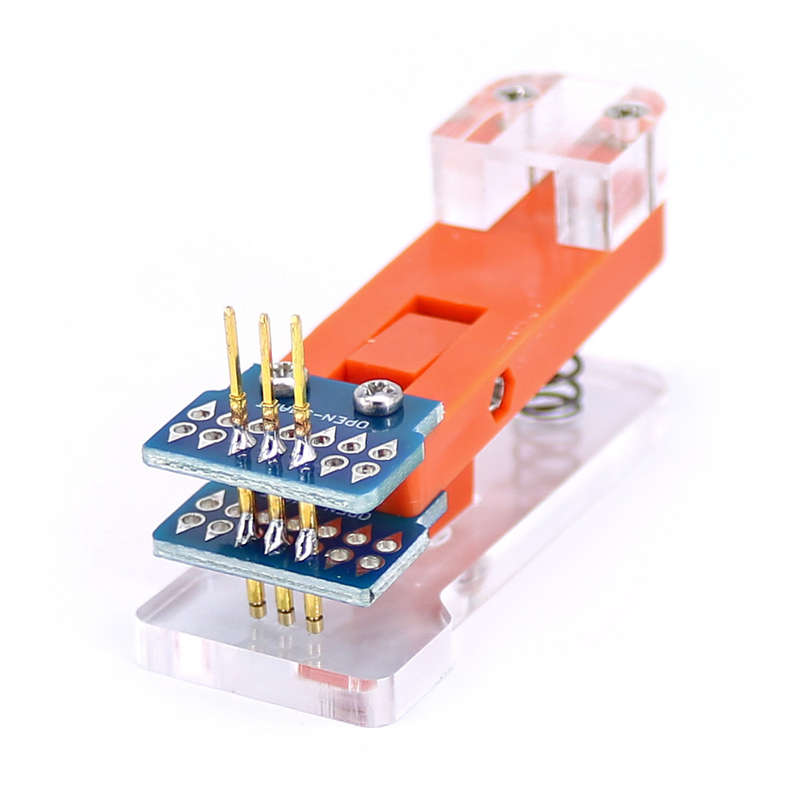

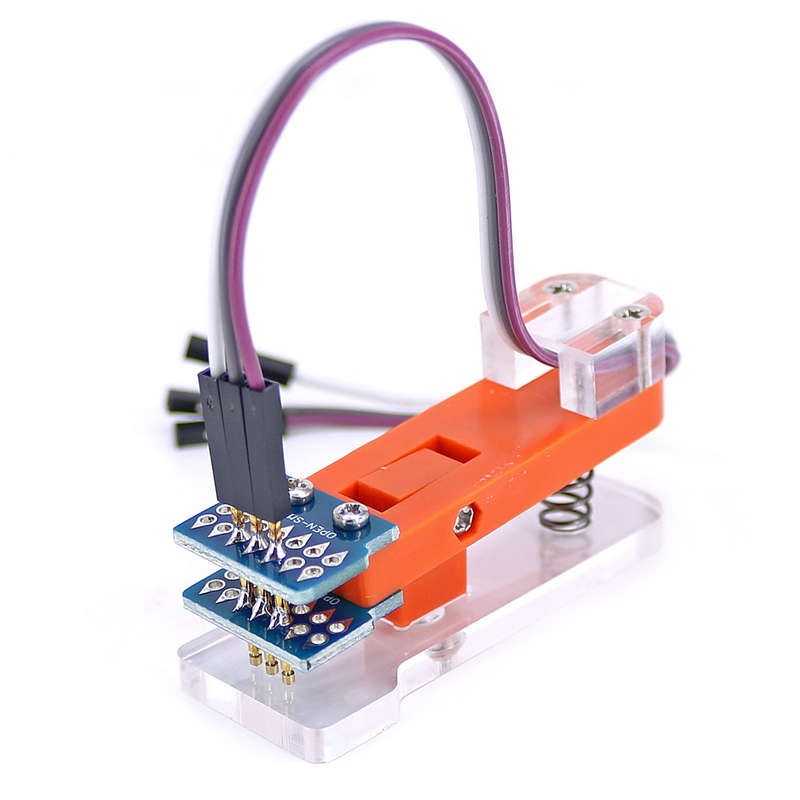

OPEN-SMART Test Tool PCB Test Fixture 1x3P 2.54MM Pitch Gold-plated Probe Module

OPEN-SMART Test Tool PCB Test Fixture 1x3P 2.54MM Pitch Gold-plated Probe Module

20 available / new
R522.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641130635

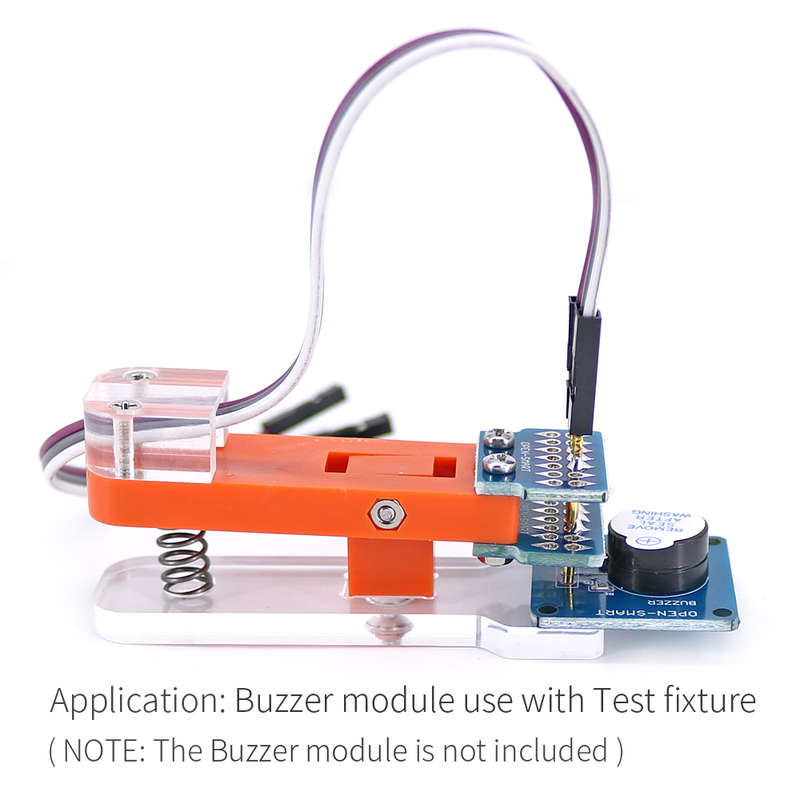

Introduction: This is a test fixture dedicated to module testing. It is suitable for modules and boards without soldering pin headers. Features: - Number of Pins: 1X3P - Pin pitch: 2.54mm - Probe head type: P75-E3 (cone), gold-plated, durable - The probe head applicable pad: through the pad, surface pad - Probe receptacle type: R75-3W - Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable - Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line) - Operating current: Each pin 1A (max) - Operating voltage: 30V (max) Package includes: 1 x PCB Test Fixture
1 x 3P Cable
