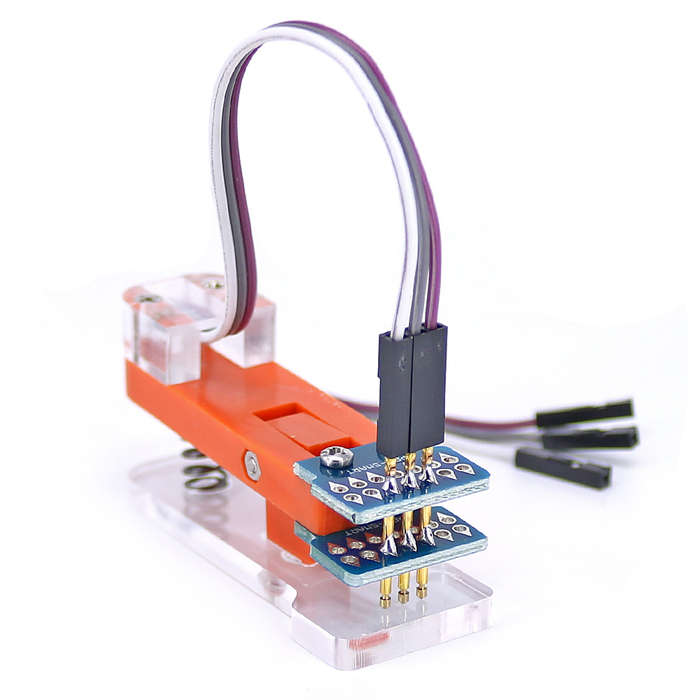

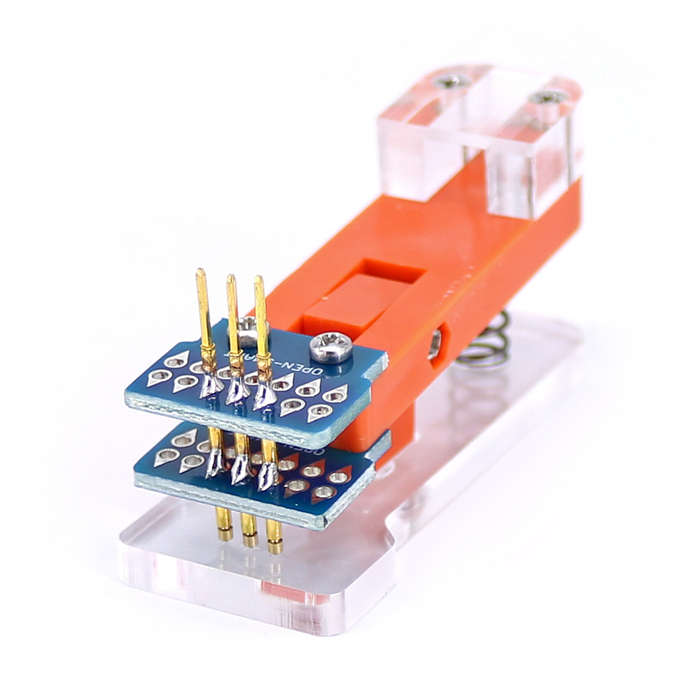

OPEN-SMART Test Tool PCB Test Fixture 1x3P 2.54MM Pitch Gold-plated Probe Module

Introduction: This is a test fixture dedicated to module testing. It is suitable for modules and boards without soldering pin headers. Features: - Number of Pins: 1X3P - Pin pitch: 2.54mm - Probe head type: P75-E3 (cone), gold-plated, durable - The probe head applicable pad: through the pad, surface pad - Probe receptacle type: R75-3W - Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable - Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line) - Operating current: Each pin 1A (max) - Operating voltage: 30V (max) Package includes: 1 x PCB Test Fixture
1 x 3P Cable
