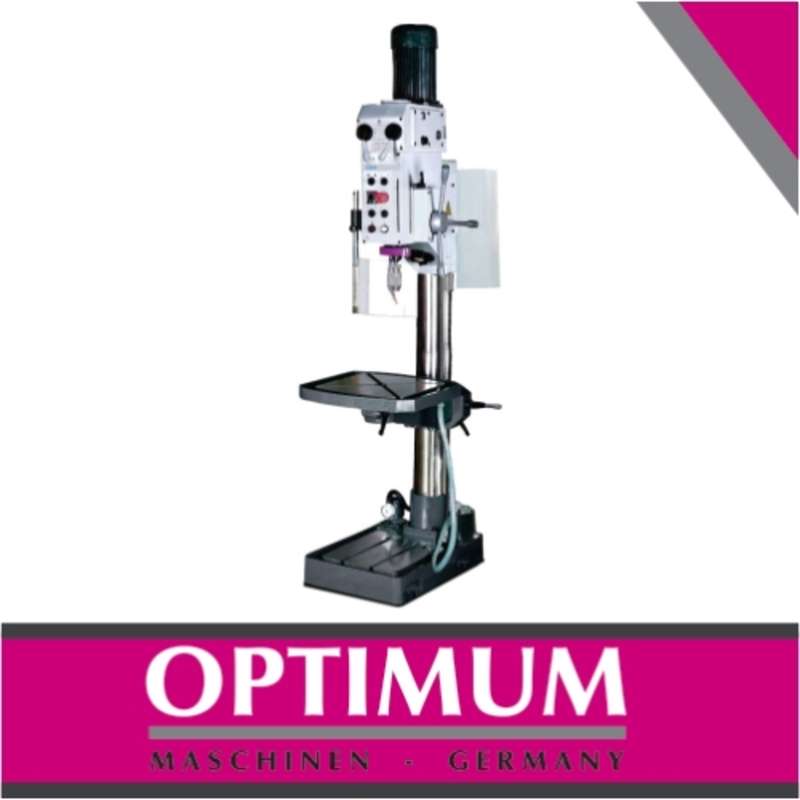

Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
Technical Specifications
Electrical connection 400 V / 3 Ph ~50 Hz
Total connected load 2.4 / 3.0 kW
Motor coolant pump 40 W
Drilling capacity in steel (S235JR) 50 mm
Continuous drilling cap. steel 45 mm
Thread cutting in steel (S235JR) M 42
Throat depth 375 mm
Spindle stroke 230 mm
Spindle seat MT 4
Spindle sleeve feed 6 steps, 0.05-0.3 mm/U
Spindle speeds 54 2,090 min-1
Number of steps 18 steps
Table work surface length x width 600 x 600 mm
T-slot size 18 mm, diagonal
Drilling table slewable and rotatable +/-90 degree
Distance spindle drilling table (max.) 800 mm
Load drilling table 300 kg
Distance spindle stand max. 1,300 mm
Stand work surface L x W 600 x 520 mm
Stand T-slot size 18 mm
Stand Number of T-slots 2
Stand T-Slots distance 280 mm
Column diameter 200 mm
Length x width x height 985 x 775 x 2,460 mm
Total weight 950 kg
Description
Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
Heavy, solid cast iron construction
Very smooth running due to ground oil-quenched gear wheels
High true running accuracy due to hardened and ground work spindle
Two-stage driving motor
Automatic toothed wheel lubrication via oil pump
Threading unit
Lockable main switch and motor protection switch
Machine luminaire integrated in the drill head
Automatic spindle sleeve feed
For deep drilling or pocket hole drilling, the coupler of the automatic spindle sleeve feed can be opened or closed at any time by actuating the spindle feed switch
Features:
Integrated drill drift
Easy tool change due to ejection mechanism
Spindle sleeve fine feed
Via handwheel
Chuck guard
Best possible protection of the user
Height-adjustable
Micro switch
Drilling table
Largely dimensioned
Solid
Precisely worked
Transversally running T-slots
Heavily ribbed at the rear side
± 90° Rotation of 360° through it's own axis and about the column
Casting column
Thick-walled
High smooth running and stability
Column diameter 200 mm
Table height adjustment
Motor driven
Traverse speed 450 mm/min.
Coolant equipment
Coolant tank integrated in the base plate
Tank capacity 5 litres
Delivery volume 2 l/min.
Chip filter
cleans the coolant from rough components
according to the machine directive
Base plate
Usable as a working surface for extra high workpieces due to the rotatable drilling table
Solid
Parallel running T-slots
Precisely machined surface
Heavy, solid cast iron construction
950 kg
Smooth running and stable
Delivery Information
Quick-action drill chuck 1 16 mm
Morse taper MT 4/B16
T-slots
