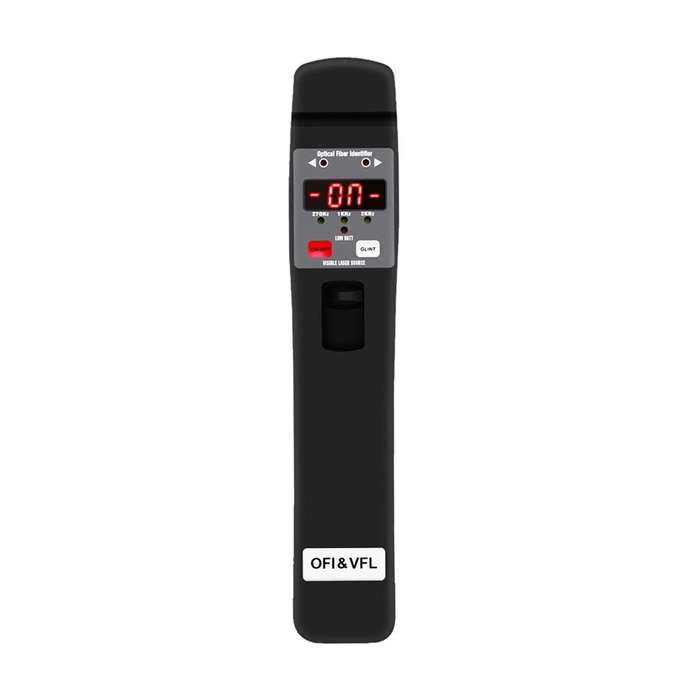

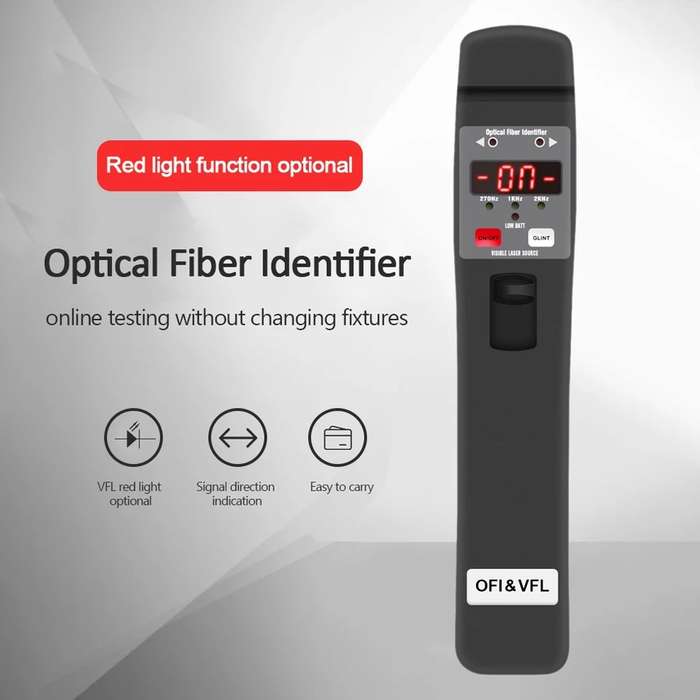

Optic Fiber Identifier Live Fiber Optical Identifier 800nm-1700nm Fiber Cable Visual Fault Locator

New

12 were available

R2,694.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4005

92.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

617556587

Features:

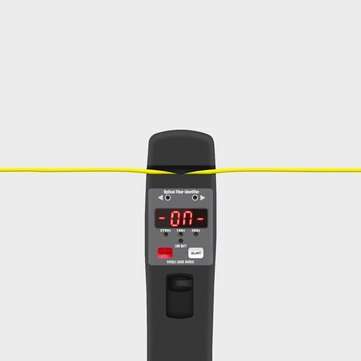

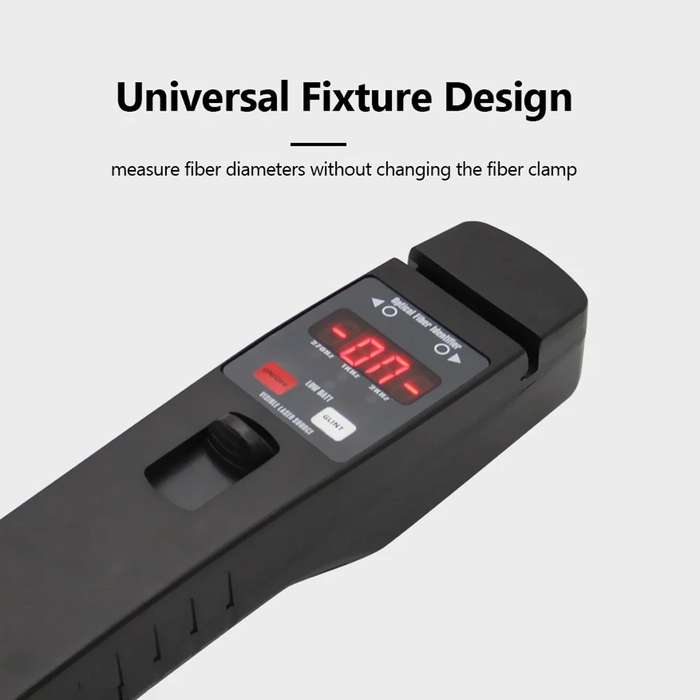

Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity. Does not damage optical fiber, without interrupting communications, and direct detection of 25mm bare fiber, 0.9mm and 2.5mm fiber casing tight jumper.

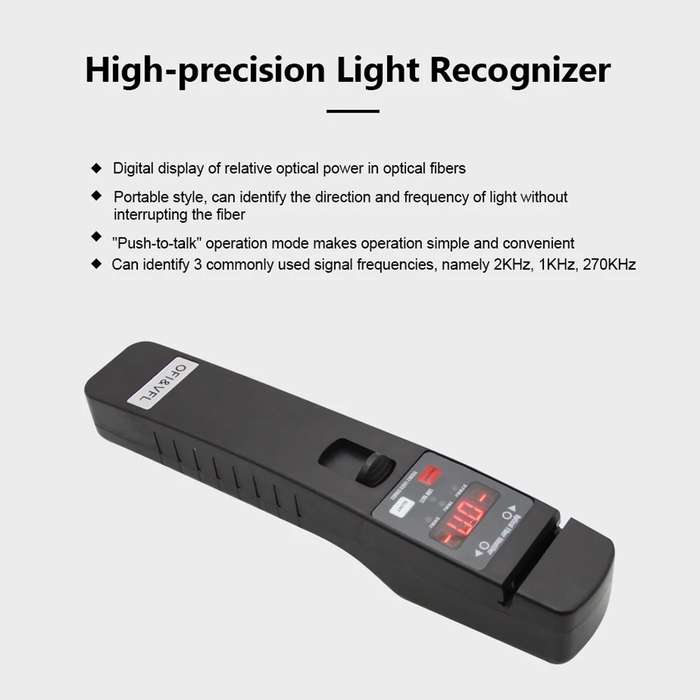

Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal a fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber.

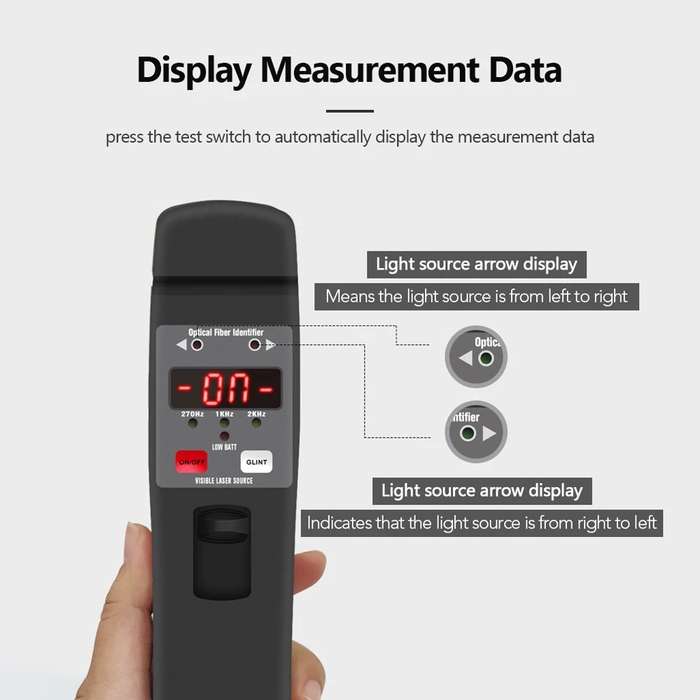

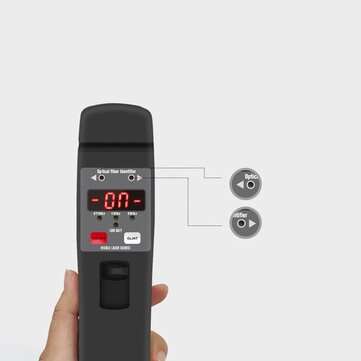

Indicate the signal directions and power in fiber.
Indicate the signal presence or absence(Live or dark fiber).

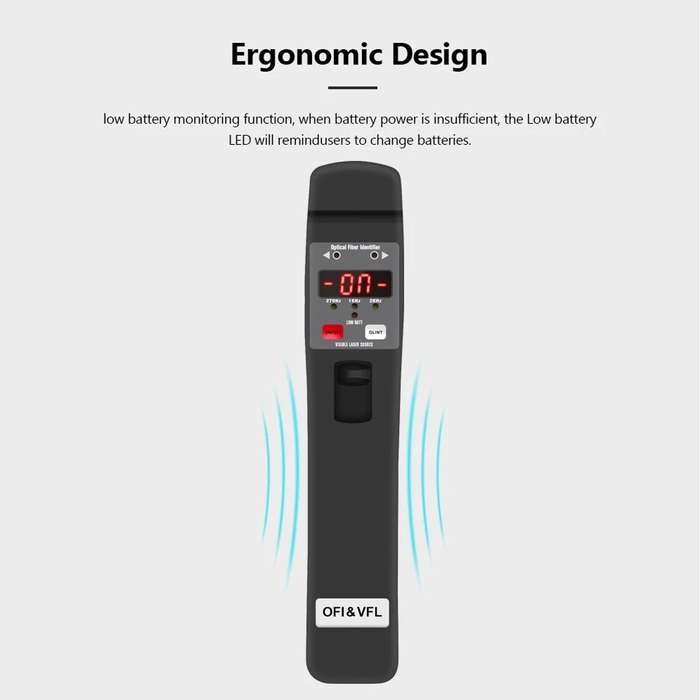

Low battery monitoring function, when battery power is insufficient, the Low battery LED will remind users to change batteries.

Specifications:

Wave respond: 800nm-1700nm
Pass through insertion loss:
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?1. 250umOptical fiber? 1. 1.0dB
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2. 900umOptical fiber? 2. 1.0dB
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?3. 3 mm Optical fiber??? 3. 2.0dB

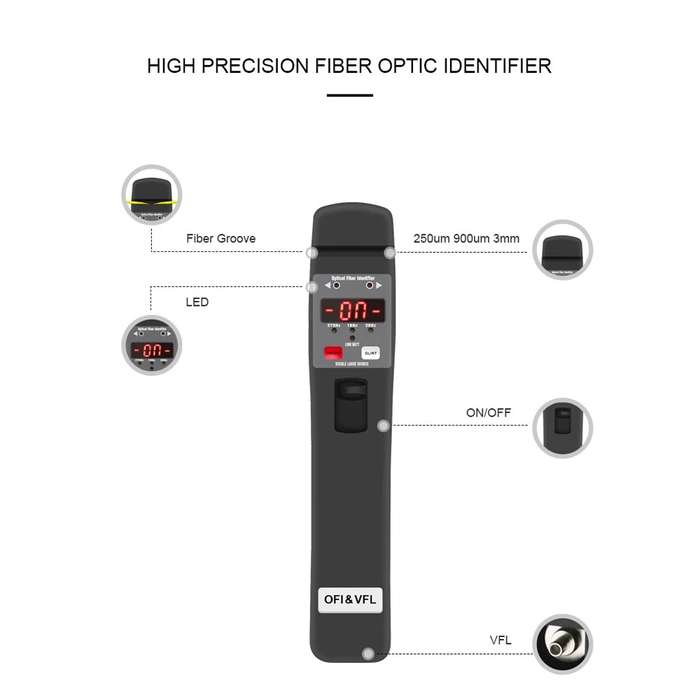

Application of optical fiber: 250um/900um/2.5um/3mm Optical fiber
Identified Signal Type: 270HZ/1KHZ/2KHZ
Identification of modulated signals: Yes
Power Measurement: Yes
Display: LED segment
Tone: Yes
Low power monitoring: Yes
Detector type: 1mm InGaAs
Minimum detection power
Test conditions: 1550
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?1. 250um Optical fiber??? -35dBm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2. 900um Optical fiber??? -35dBm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?3. 3mm Optical fiber???? -30dBm
Test conditions: 1310
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?1. 250um Optical fiber???? -30dBm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?2. 900um Optical fiber???? -30dBm
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?3. 3mm Optical fiber????? -25dBm
Power supplies: 2 * AA? 1.5V ALR6 Battery (not included)

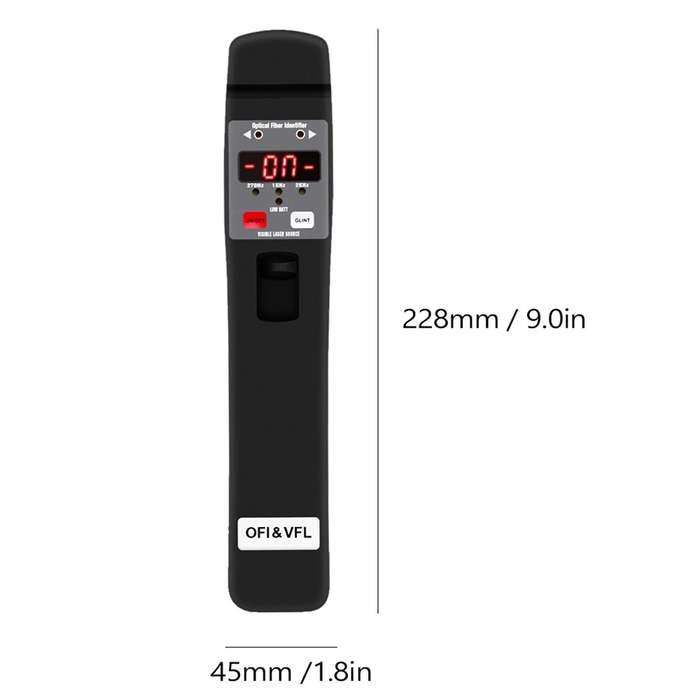

Size: 228 * 45 * 40mm / 9.0 * 1.8 * 1.6in
Weight: 200g / 7.1ounce
Package size: 250 * 80 * 53mm / 9.8 * 3.1 * 2.0in
Package weight: 350g / 12.3ounce
